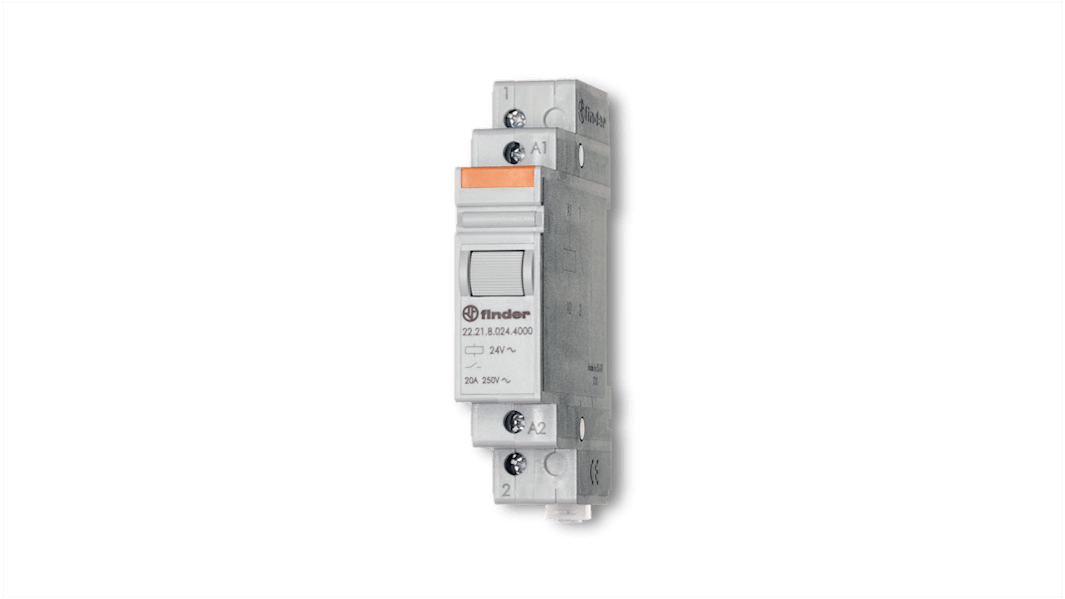

Finder DIN Rail Monostable Relay, 24V ac Coil, 20A Switching Current, SPST
- RS Stock No.:
- 248-1756
- Mfr. Part No.:
- 222180244000
- Brand:
- Finder
Subtotal (1 pack of 5 units)*
£161.59
(exc. VAT)
£193.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £32.318 | £161.59 |
*price indicative
- RS Stock No.:
- 248-1756
- Mfr. Part No.:
- 222180244000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V ac | |
Contact Configuration | SPST | |
Mounting Type | DIN Rail | |
Switching Current | 20A | |
Number of Poles | 1 | |
Series | 22 | |
Latching | No | |
Terminal Type | Screw | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 24V dc | |
Maximum Switching Current AC | 30 A | |
Coil Power | 3W | |
Minimum Operating Temperature | -40°C | |
Standards Met | CE, EAC | |
Life | 50000 Cycles | |
Isolation Coil To Contact | 4kV | |
Maximum Operating Temperature | +40°C | |
Contact Material | Silver Alloy | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V ac | ||
Contact Configuration SPST | ||
Mounting Type DIN Rail | ||
Switching Current 20A | ||
Number of Poles 1 | ||
Series 22 | ||
Latching No | ||
Terminal Type Screw | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 24V dc | ||
Maximum Switching Current AC 30 A | ||
Coil Power 3W | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, EAC | ||
Life 50000 Cycles | ||
Isolation Coil To Contact 4kV | ||
Maximum Operating Temperature +40°C | ||
Contact Material Silver Alloy | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 22 Monostable Relay, 24V AC Coil Voltage, 20A Switching Current - 222180244000
This monostable relay is a versatile component designed for high-performance applications in the automation and electrical industries. Featuring a single pole, normally open SPST configuration, it operates at a coil voltage of 24V AC and can handle switching currents of up to 20A. The relay is built for DIN rail mounting, ensuring a streamlined installation process. Constructed with AgSnO2 contact material, this relay guarantees durability and longevity, with a lifecycle of approximately 50,000 cycles.
Features & Benefits
• Offers robust switching capabilities with a maximum voltage of 400V AC
• High current capacity of 30A for switching applications
• Designed for easy installation on 35mm DIN rails
• Equipped with screw terminals for secure connections
• Fast operate/release times of 15ms and 8ms respectively
• Adequate insulation between coil and contact ensures safety
• High current capacity of 30A for switching applications
• Designed for easy installation on 35mm DIN rails
• Equipped with screw terminals for secure connections
• Fast operate/release times of 15ms and 8ms respectively
• Adequate insulation between coil and contact ensures safety
Applications
• Used for controlling office lighting and garden lights
• Ideal for streetlight and car park lighting control
• Suitable for hotel room energy management solutions
• Employed in pump control systems for irrigation and drainage
• Applicable in bathroom lighting control setups
• Ideal for streetlight and car park lighting control
• Suitable for hotel room energy management solutions
• Employed in pump control systems for irrigation and drainage
• Applicable in bathroom lighting control setups
How does the switching current capacity impact its application?
The switching current capacity enables efficient operation in applications where substantial electrical loads are present, allowing seamless control of various devices such as motors and lighting systems without compromising safety or functionality.
What measures are in place to ensure safety and reliability in operation?
The relay features a dielectric strength of 4kV between the coil and contacts, providing substantial insulation to prevent electrical failures. Additionally, its multi-purpose use in harsh conditions is reflected in its operational temperature range of -40°C to +40°C.
Can it be used for both AC and DC applications?
Yes, this relay operates effectively with both AC and DC coil voltages, making it suitable for various applications across different electrical systems, thereby enhancing its versatility in the field.
