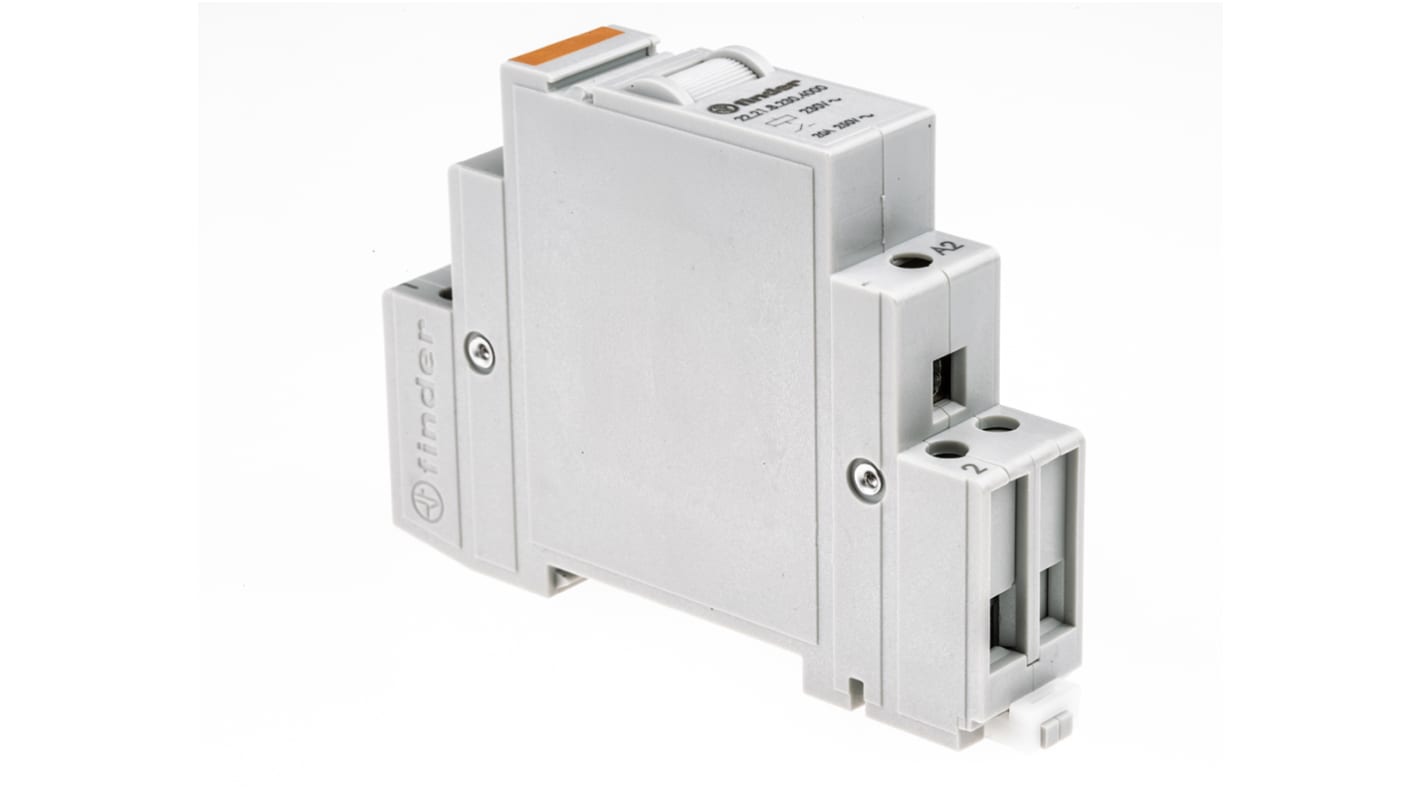

Finder DIN Rail Power Relay, 230V ac Coil, 20A Switching Current, SPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£27.14

(exc. VAT)

£32.57

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 54 unit(s) ready to ship
  • Plus 38 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£27.14
5 - 9£26.32
10 +£25.17

*price indicative

RS Stock No.:
159-789
Distrelec Article No.:
301-62-752
Mfr. Part No.:
22.21.8.230.4000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

230V ac

Contact Configuration

SPST

Mounting Type

DIN Rail

Switching Current

20A

Number of Poles

1

Series

22 Series

Latching

No

Terminal Type

Screw

Maximum Switching Voltage AC

250V ac

Coil Resistance

4250Ω

Coil Power

1.25W

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+40°C

Contact Material

Silver Alloy

Isolation Coil To Contact

4kV

Depth

58.4mm

Life

500000 Cycles

Standards Met

CE, EAC

Maximum Switching Power AC

5 kVA

COO (Country of Origin):
FR

Finder 22 Series Power Relay, 230V AC Coil Voltage, 20A Switching Current - 22.21.8.230.4000


This power relay is a modular monostable relay designed for efficient electrical control. With a coil voltage of 230V AC and a compact DIN rail mounting option, this relay is suitable for various applications in the automation and electrical sectors. The product measures 58.4mm in depth and offers a reliable solution for switching operations.

Features & Benefits


• Offers a switching current capacity of 20A
• Constructed from AgSnO2 contact material for durability
• Suitable for 35mm DIN rail mounting for easy installation
• Capable of withstanding a maximum switching voltage of 250V AC
• Insulation between coil and contacts rated at 4kV

Applications


• Ideal for hotel room energy management systems
• Used for controlling garden and night lighting
• Suitable for streetlight and car park lighting control
• Applicable in office lighting management systems
• Utilised for efficient pump control solutions

What is the expected lifespan of this relay during normal use?


The relay is designed for an electrical lifespan of 500,000 cycles when operated within its rated load in AC1, ensuring long-term reliability in routine applications.

How does the insulation between the coil and contacts enhance safety?


The insulation rated at 4kV prevents unwanted electrical discharge, minimising the risk of voltage surges affecting circuit integrity and providing safe operational conditions.

What kind of environment can the relay operate in without performance issues?


It can function effectively across a broad temperature range of -40°C to +40°C, making it suitable for both indoor and outdoor installations.

How does the relay handle peak loads during operation?


The relay can tolerate a peak current of up to 30A, allowing it to handle transient loads without compromising its performance or safety.
