Name: Finder Panel Power Relay, 230V ac Coil, 10A Switching Current, DPST
Brand: Finder
SKU: 433-4082
Price: 21.55 GBP
Availability: Discontinued

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Product Type	Power Relay
	Coil Voltage	230V ac
	Contact Configuration	DPST
	Mount Type	Panel
	Series	27
	Terminal Type	Screw
	Switching Current	10A
	Switching AC Voltage	230V ac
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	40°C
	Coil Resistance	6.5kΩ
	Standards/Approvals	CE, EAC, EN, RoHS
	Height	54.6mm
	Length	32mm
	Coil Power	4W
	Width	21.5mm
	Contact Material	Silver Alloy

	Select all
	Brand Finder
	Product Type Power Relay
	Coil Voltage 230V ac
	Contact Configuration DPST
	Mount Type Panel
	Series 27
	Terminal Type Screw
	Switching Current 10A
	Switching AC Voltage 230V ac
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 40°C
	Coil Resistance 6.5kΩ
	Standards/Approvals CE, EAC, EN, RoHS
	Height 54.6mm
	Length 32mm
	Coil Power 4W
	Width 21.5mm
	Contact Material Silver Alloy

COO (Country of Origin):: IT

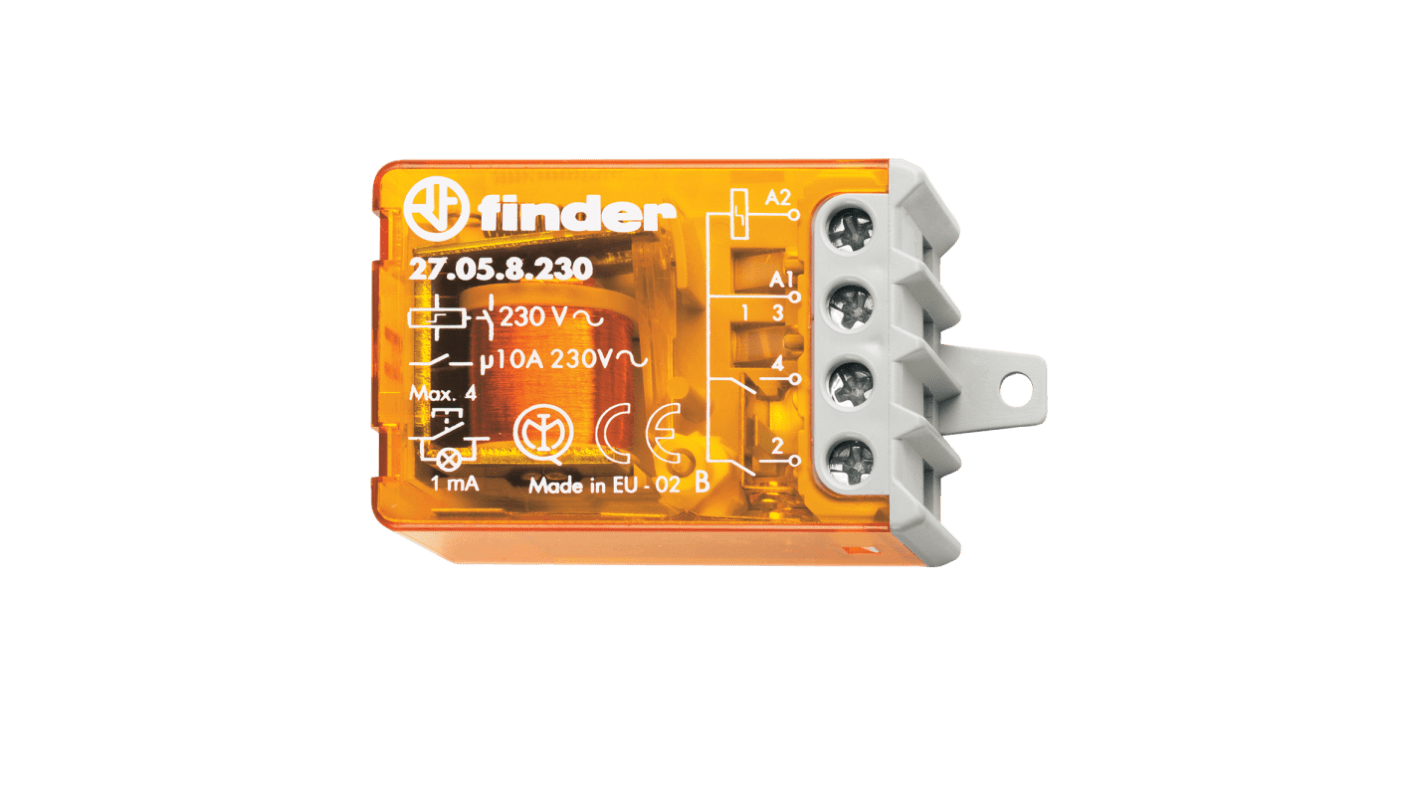

Finder 27 series Modular Step Relay, 230V AC Coil Voltage, 10A Switching Current - 27.05.8.230.0000

This modular step relay is designed for various electrical applications, featuring a robust panel mount configuration. With a coil voltage of 230V AC and a contact configuration of DPST, this relay is an ideal choice for automating lighting systems and electrical circuits. It combines high performance with efficiency, making it a reliable option for users in the automation and electrical industries.

Features & Benefits

• Enables switching of up to 24 illuminated push buttons with module

• Supports multiple switching sequences for versatile control

• Designed for efficient performance with a coil power limiter

• Offers AC coil operation for reliable functionality

• Utilises screw terminal connections for easy installation

• Incorporates silver alloy contacts for improved conductivity

Applications

• Lighting control in commercial corridors and offices

• Managing electrical outputs in hospital settings

• Bedroom lighting automation for convenience

• Living room light control for enhanced ambience

What are the maximum switching capabilities for this relay?

The relay supports a maximum switching voltage of 230V AC and a maximum switching current of 20A, ensuring it can handle significant electrical loads with efficiency.

How does the coil power limiter enhance operational safety?

The coil power limiter allows continuous energisation of the coil without overheating, making it ideal for long-term use in various settings where consistent performance is required.

What type of terminal connections does this relay use?

This relay features screw terminal connections, which facilitate secure and reliable wiring to ensure stable electrical performance during operation.
