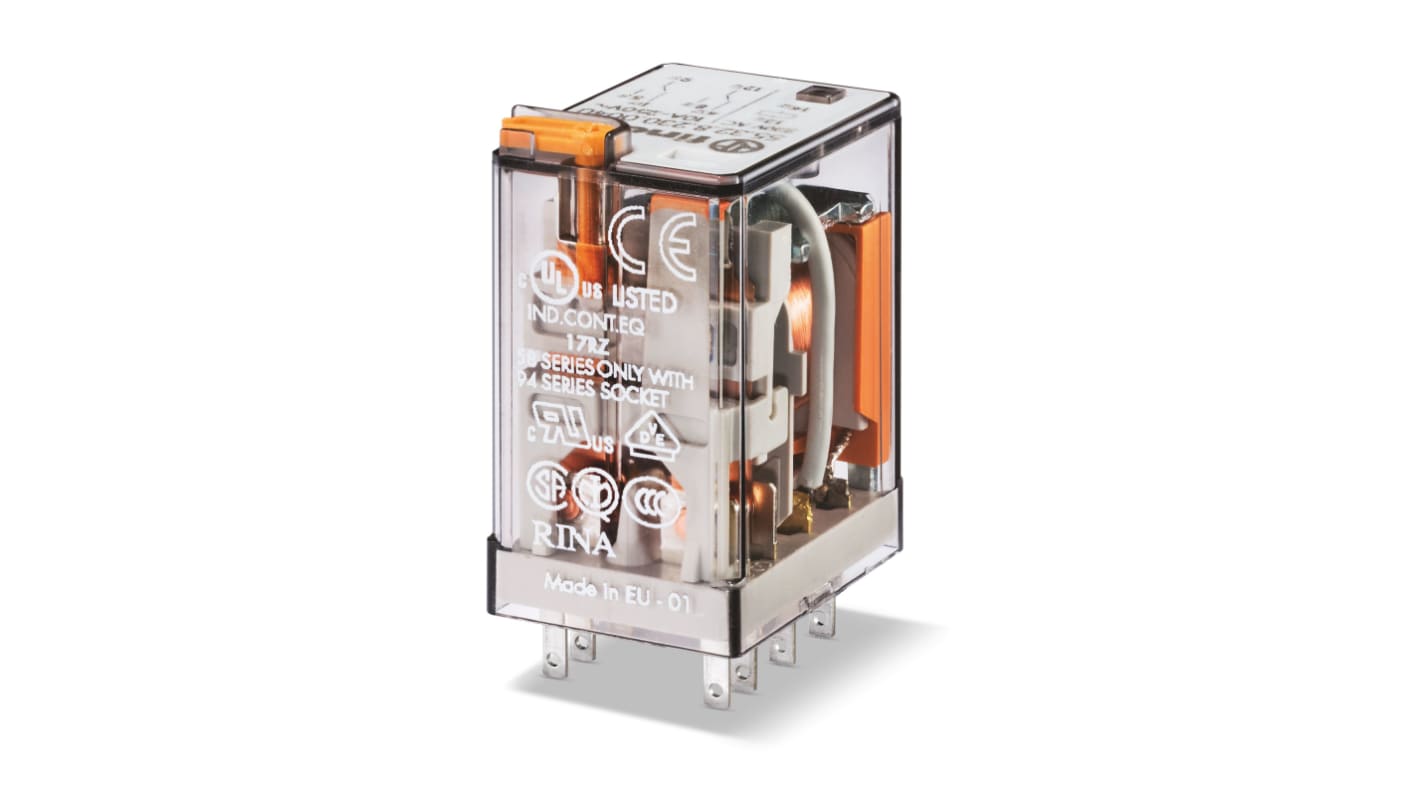

Finder Relay, 230V ac Coil, 10A Switching Current, DPST
- RS Stock No.:
- 248-1522
- Mfr. Part No.:
- 553282300050
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£138.73
(exc. VAT)
£166.48
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £13.873 | £138.73 |
*price indicative
- RS Stock No.:
- 248-1522
- Mfr. Part No.:
- 553282300050
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Relay | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPST | |
| Series | 55 | |
| Terminal Type | Solder | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 350Ω | |
| Maximum Operating Temperature | 85°C | |
| Width | 20mm | |
| Height | 35mm | |
| Length | 27mm | |
| Standards/Approvals | CE, EAC, RoHS, UL, VDE | |
| Coil Power | 0.5W | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Relay | ||
Coil Voltage 230V ac | ||
Contact Configuration DPST | ||
Series 55 | ||
Terminal Type Solder | ||
Switching Current 10A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 350Ω | ||
Maximum Operating Temperature 85°C | ||
Width 20mm | ||
Height 35mm | ||
Length 27mm | ||
Standards/Approvals CE, EAC, RoHS, UL, VDE | ||
Coil Power 0.5W | ||
Contact Material Silver Nickel Alloy | ||
The Finder's socket mounting, general purpose relays from 55 series can be used in applications like automation for blinds, grilles and shutters, shipyards, panels for electrical distribution, hoists and cranes. This relay has 2 (CO) poles, and rated for 250 Vac. This relay has standard AgNi contacts and the rated coil voltage is 230 Vac (50/60 Hz).
Standard version but comes with lockable test button and an LED (AC)
Cadmium free contacts
