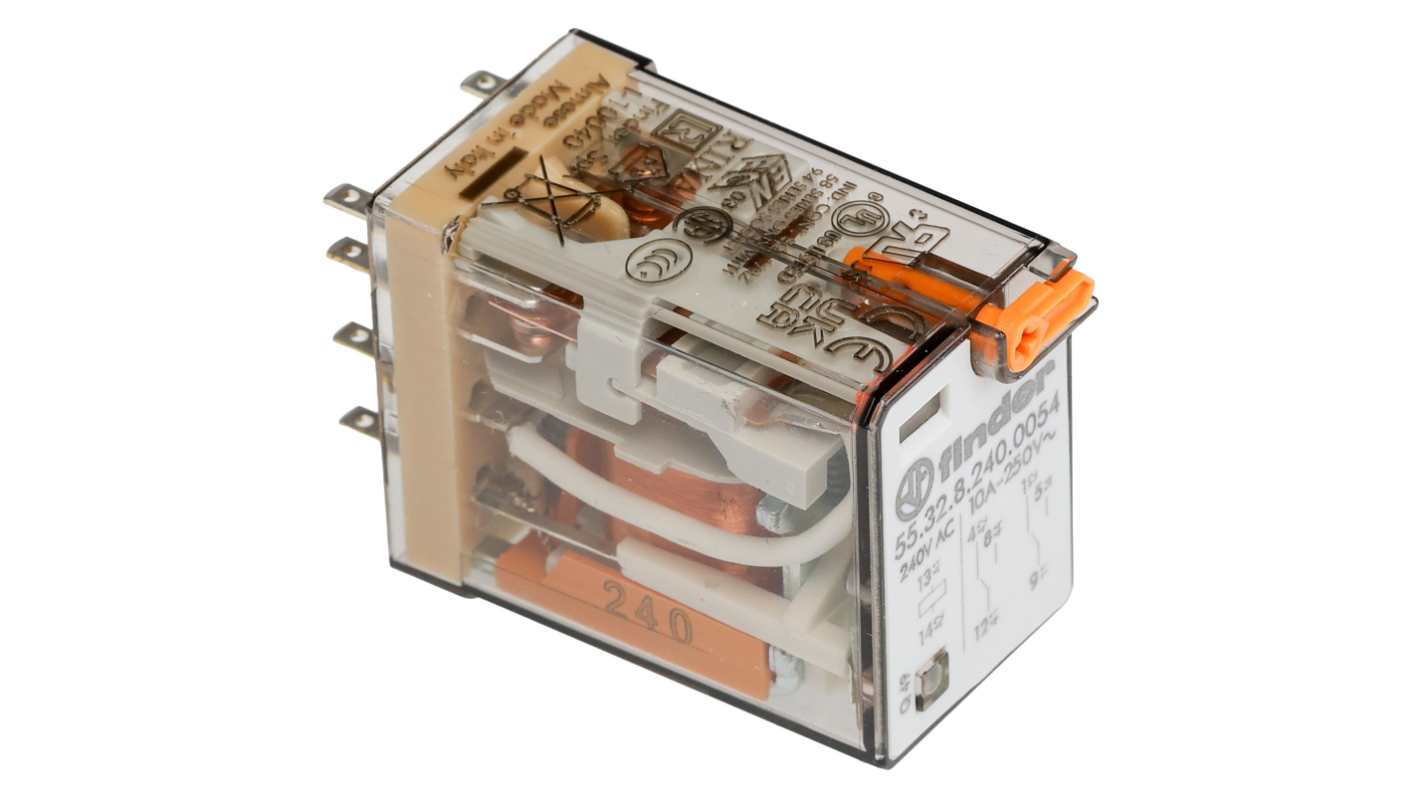

Finder Plug In Relay, 240V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 248-1528
- Mfr. Part No.:
- 553282400054
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£123.60
(exc. VAT)
£148.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 30 unit(s) shipping from 07 November 2025
- Plus 999,999,960 unit(s) shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £12.36 | £123.60 |
*price indicative
- RS Stock No.:
- 248-1528
- Mfr. Part No.:
- 553282400054
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 240V ac | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 2 | |
Series | 55 | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 20 A | |
Coil Power | 1.5W | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -40°C | |
Life | 200000 Cycles | |
Isolation Coil To Contact | 4kV | |
Standards Met | cURus, EAC | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 240V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Series 55 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 20 A | ||
Coil Power 1.5W | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Life 200000 Cycles | ||
Isolation Coil To Contact 4kV | ||
Standards Met cURus, EAC | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 55 Relay, 240V AC Coil Voltage, 10A Switching Current - 553282400054
This relay is an essential component for automation and control systems. Designed as a plug-in relay, it operates on a coil voltage of 240V AC and features a double pole double throw (DPDT) configuration. With a standard size and functionality, it is built to handle a maximum switching current of 10A, ensuring reliability across various applications.
Features & Benefits
• Supports up to 400V AC and 220V DC maximum switching voltage
• High insulation between coil and contacts rated at 4 kV
• Mechanical life rated at 20 million cycles for durability
• Utilises AgNi contact material, ensuring low resistance and efficiency
• Operating temperature range of -40°C to +85°C for versatile use
• Designed for quick installation with a plug-in terminal type
• High insulation between coil and contacts rated at 4 kV
• Mechanical life rated at 20 million cycles for durability
• Utilises AgNi contact material, ensuring low resistance and efficiency
• Operating temperature range of -40°C to +85°C for versatile use
• Designed for quick installation with a plug-in terminal type
Applications
• Ideal for controlling automation systems in both industrial and building management sectors
• Used in hoists, cranes, and electric power management solutions
• Suitable for road and tunnel lighting control systems
• Commonly found in circuit breakers and electrical distribution panels
• Used in hoists, cranes, and electric power management solutions
• Suitable for road and tunnel lighting control systems
• Commonly found in circuit breakers and electrical distribution panels
How does this relay manage high voltage and high current conditions?
The product is rated for a maximum switching voltage of 400V AC and can handle up to 20 A of peak switching current, making it an effective choice for applications that require reliable power management.
What environmental conditions can this relay withstand during operation?
It can operate efficiently within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
How often can this relay be cycled without degradation in performance?
The mechanical life is rated at 20 million cycles, ensuring longevity even under frequent usage conditions.
What is the significance of the contact material used in this relay?
The relay uses AgNi contact material which provides low contact resistance and enhances the overall switching performance, ensuring efficient operation.
How does this relay assist in automation controls?
It supports automation for systems like blinds, grilles, and shutters, allowing precise management of electric power for enhanced operational efficiency.
