MPN

Finder Panel Mount Non-Latching Relay, 12V ac Coil, 10A Switching Current, DPST

RS Stock No.:: 225-4654
Distrelec Article No.:: 136-70-180
Mfr. Part No.:: 26.02.8.012.0000
Brand:: Finder

Finder Panel Mount Non-Latching Relay, 12V ac Coil, 10A Switching Current, DPST

Subtotal (1 unit)*

£18.38

(exc. VAT)

£22.06

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

69 unit(s) ready to ship
Plus 5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£18.38

*price indicative

RS Stock No.:: 225-4654
Distrelec Article No.:: 136-70-180
Mfr. Part No.:: 26.02.8.012.0000
Brand:: Finder

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	12V ac
	Contact Configuration	DPST
	Mounting Type	Panel Mount
	Switching Current	10A
	Number of Poles	2
	Series	26 Series
	Coil Resistance	17 Ω
	Coil Power	4.5W

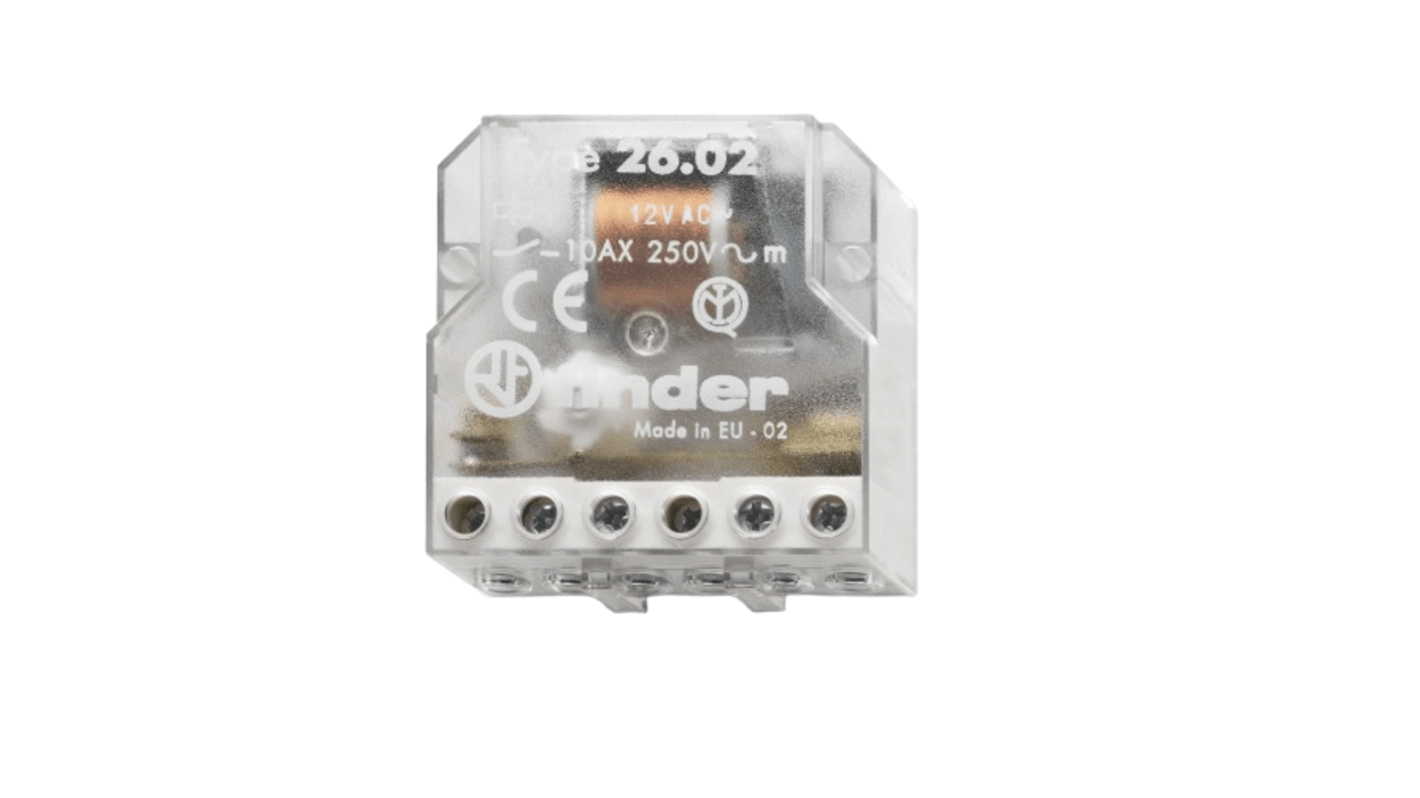

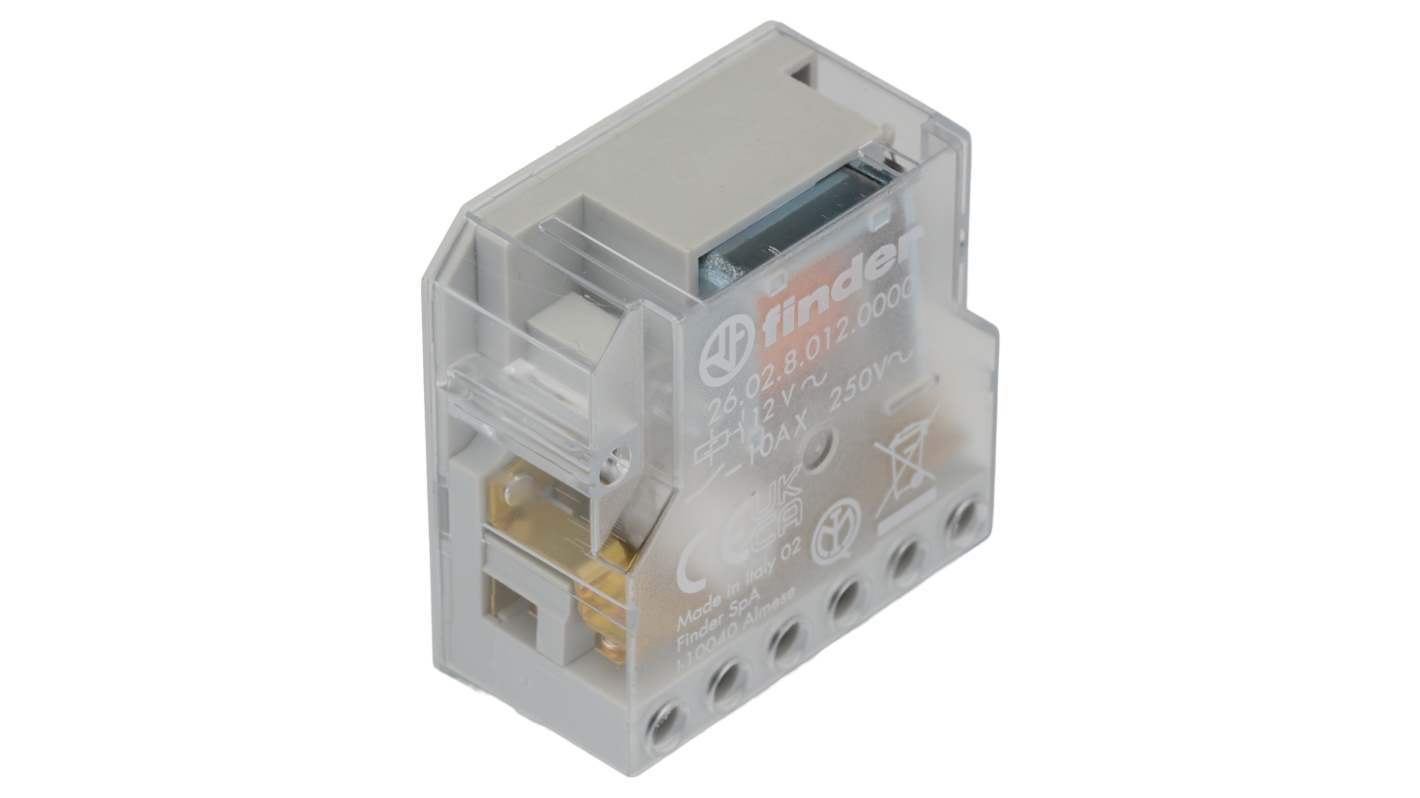

Finder 26 series Modular Step Relay, 10A Switching Current, 12V AC Coil Voltage - 26.02.8.012.0000

This modular step relay is designed for reliable control in various electrical systems. The product features a 12V AC coil with a DPST (Double Pole Single Throw) configuration. It is suitable for panel mounting, ensuring easy installation in a diverse range of applications. Built for robust performance, it meets the needs of industrial environments, with exceptional versatility across automation tasks.

Features & Benefits

• Offers 10A switching capacity for substantial loads
• Provides up to 400V AC switching voltage for reliability
• Designed with AgNi contact material for durability
• Features single-phase and two-phase switch options for flexibility
• Utilises screw terminal connections for secure wiring
• Capable of operating in temperatures from -40°C to +40°C

Applications

• Used for lighting control in corridors of hotels and offices
• Employed for precise bedroom and living room light control
• Suitable for integration in industrial systems for automation purposes
• Ideal for electrical requiring reliable and durable relays

What are the primary advantages of using a DPST configuration?

The DPST configuration allows for the control of two separate circuits simultaneously, enhancing versatility in light and equipment management without requiring multiple relays.

How does the maximum switching voltage impact performance in an industrial setting?

The ability to handle up to 400V AC facilitates safe and effective operation across a variety of high-voltage applications. This ensures smooth control of machinery and lighting systems, minimising risks of electrical failure.

What type of terminal connections does this relay utilise, and how does that benefit installation?

This relay features screw terminal connections, which offer reliable and secure wiring options. This design simplifies installations and maintenance while ensuring stable electrical connections.

What lifespan can be expected from the relay under normal operating conditions?

The relay is rated for up to 100,000 cycles in electrical life, ensuring long-term reliability, particularly in environments where frequent switching is required.

How does the insulation specification contribute to overall safety and performance?

With a dielectric strength between the supply and contacts at 4kV, the relay provides robust insulation that enhances safety and prevents electrical faults or short circuits.
