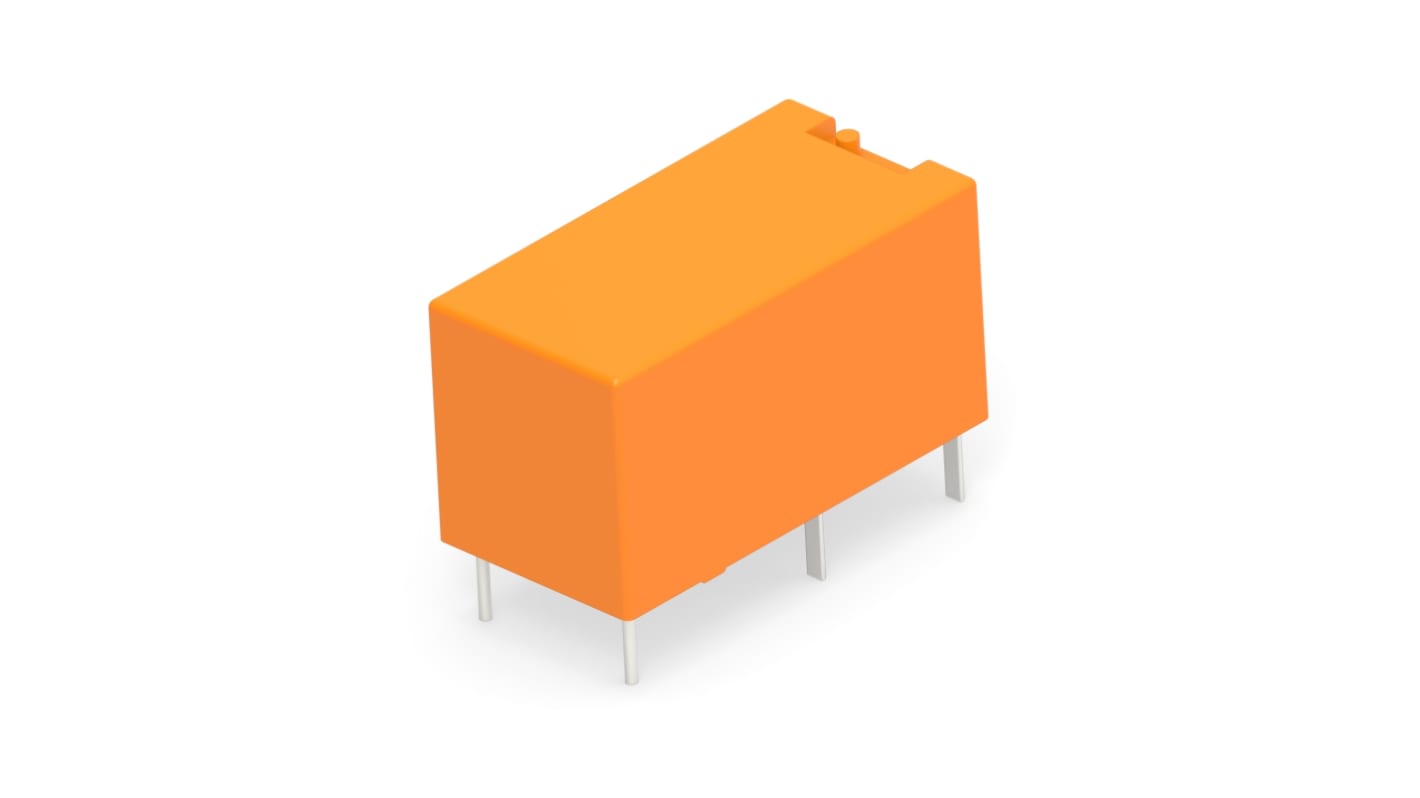

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 6A Switching Current, SPST
- RS Stock No.:
- 277-7205
- Mfr. Part No.:
- 2-1416010-7 RE034024
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£2.67
(exc. VAT)
£3.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 165 unit(s) ready to ship
- Plus 104 unit(s) ready to ship from another location
- Plus 142 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £2.67 |
| 5 + | £2.56 |
*price indicative
- RS Stock No.:
- 277-7205
- Mfr. Part No.:
- 2-1416010-7 RE034024
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 6A | |
| Number of Poles | 1 | |
| Series | SCHRACK Miniature PCB Relay RE | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 20mm | |
| Coil Resistance | 3.39 kΩ | |
| Coil Power | 2.88W | |
| Maximum Operating Temperature | +70°C | |
| Height | 10.6mm | |
| Minimum Operating Temperature | +50°C | |
| Standards Met | RoHS Compliant | |
| Contact Material | Silver Alloy | |
| Width | 10mm | |
| Application | I/O Modules, PLCs, Temperature Controls | |
| Dimensions | 20 x 10.6 x 10mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Series SCHRACK Miniature PCB Relay RE | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Length 20mm | ||
Coil Resistance 3.39 kΩ | ||
Coil Power 2.88W | ||
Maximum Operating Temperature +70°C | ||
Height 10.6mm | ||
Minimum Operating Temperature +50°C | ||
Standards Met RoHS Compliant | ||
Contact Material Silver Alloy | ||
Width 10mm | ||
Application I/O Modules, PLCs, Temperature Controls | ||
Dimensions 20 x 10.6 x 10mm | ||
The TE Connectivity Miniature PCB Relay used in Interface technology, PLCs, timers, centralized and decentralized heating control.
Sensitive coil of 200 mW
Wash tight version
Wash tight version
