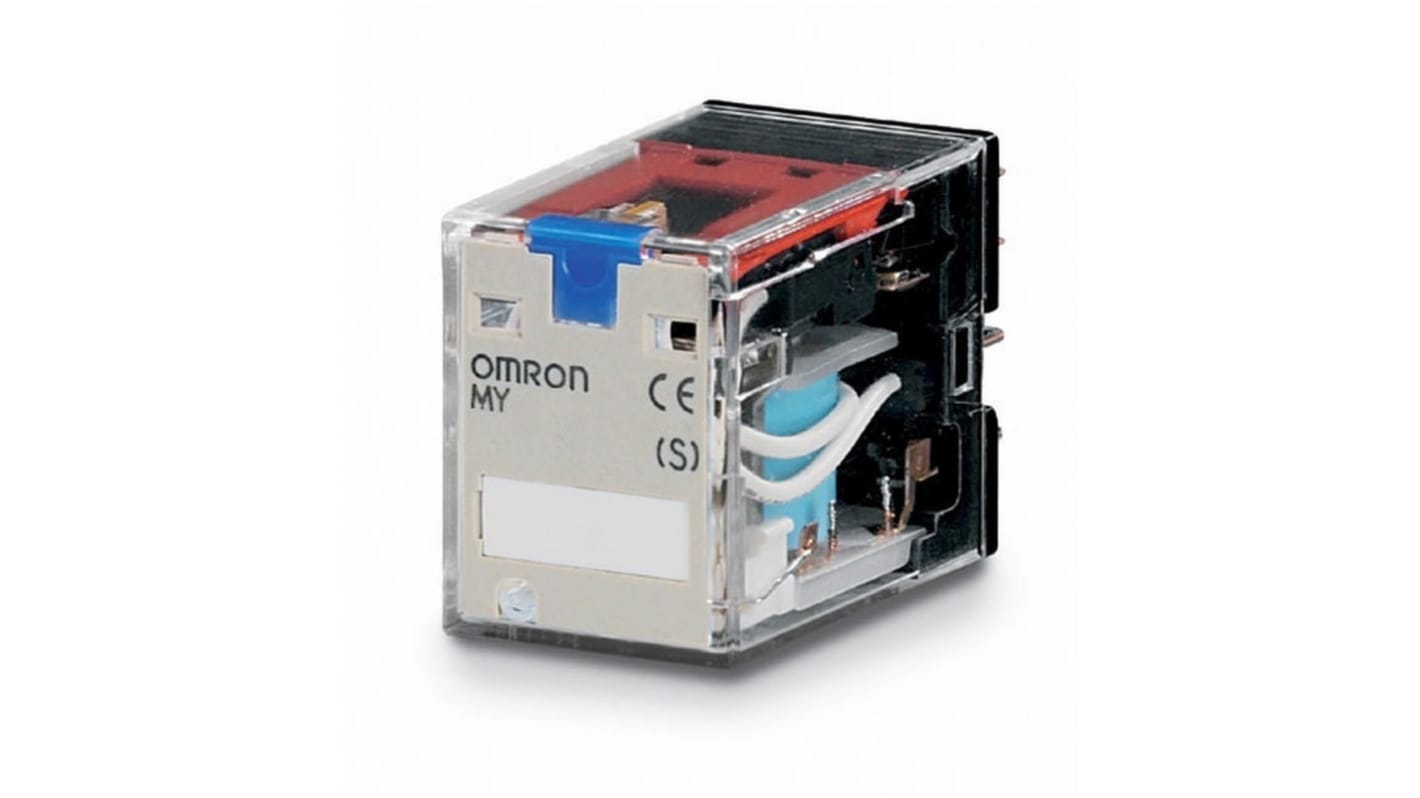

Omron Plug-in, Plug-in Power Relay, 24V dc Coil, 5A, 4PDT
- RS Stock No.:
- 266-3019
- Mfr. Part No.:
- MY4IN DC24(S)
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.75
(exc. VAT)
£12.90
(inc. VAT)
- RS Stock No.:
- 266-3019
- Mfr. Part No.:
- MY4IN DC24(S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Mount Type | Plug-in, Plug-in | |
| Product Type | Power Relay | |
| Coil Voltage | 24 V dc | |
| Switching Current | 5 A | |
| Contact Configuration | 4PDT | |
| Coil Power | 0.9 VA | |
| Coil Resistance | 662 Ω | |
| Contact Material | Gold Clad Silver Alloy | |
| Contact Resistance | 50 mΩ | |
| Height | 42.4 mm | |
| Length | 28 mm | |
| Maximum Operating Temperature | 70 °C | |
| Minimum Operating Temperature | -55 °C | |
| Series | MY4 | |
| Standards/Approvals | CSA, EN 61810-1, UL 508 | |
| Switching AC Voltage | 250 V | |
| Switching DC Voltage | 125 V | |
| Switching Power | 24 W | |
| Terminal Type | Plug-In | |
| Width | 21.5 mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Mount Type Plug-in, Plug-in | ||
Product Type Power Relay | ||
Coil Voltage 24 V dc | ||
Switching Current 5 A | ||
Contact Configuration 4PDT | ||
Coil Power 0.9 VA | ||
Coil Resistance 662 Ω | ||
Contact Material Gold Clad Silver Alloy | ||
Contact Resistance 50 mΩ | ||
Height 42.4 mm | ||
Length 28 mm | ||
Maximum Operating Temperature 70 °C | ||
Minimum Operating Temperature -55 °C | ||
Series MY4 | ||
Standards/Approvals CSA, EN 61810-1, UL 508 | ||
Switching AC Voltage 250 V | ||
Switching DC Voltage 125 V | ||
Switching Power 24 W | ||
Terminal Type Plug-In | ||
Width 21.5 mm | ||
When 2663019 is no longer for sale, please see RS article 2711947 for the updated version in the new range of relays from Omron.
The Omron miniature power relay is a model with latching lever added for easier circuit checking. It reduces wiring work by 60% when combined with the PYF-PU push-In plus socket. Relays with AC and DC coils have different colors of operating indicators (L
Mechanical operation indicators are a standard feature on all models
RoHS compliant
Note
This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
