MPN

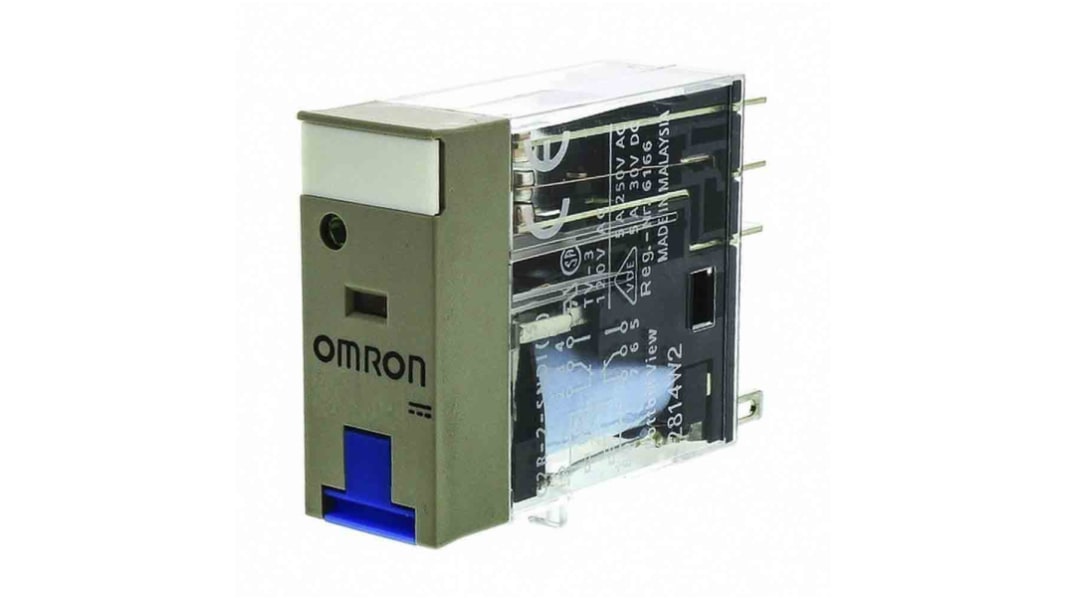

Omron Non-Latching Relay, 24V dc Coil, 5A Switching Current, DPDT

RS Stock No.:: 215-5513
Distrelec Article No.:: 136-90-077
Mfr. Part No.:: G2R-2-SNDI-AP3 DC24(S)
Brand:: Omron

Omron Non-Latching Relay, 24V dc Coil, 5A Switching Current, DPDT

Subtotal (1 unit)*

£17.61

(exc. VAT)

£21.13

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 6 unit(s) shipping from 15 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£17.61

*price indicative

RS Stock No.:: 215-5513
Distrelec Article No.:: 136-90-077
Mfr. Part No.:: G2R-2-SNDI-AP3 DC24(S)
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Non-Latching Relay
	Coil Voltage	24V dc
	Contact Configuration	DPDT
	Series	G2R
	Terminal Type	Plug-In
	Switching Current	5A
	Switching DC Voltage	125V dc
	Minimum Operating Temperature	-40°C
	Switching AC Voltage	125V ac
	Switching Power	150W
	Coil Resistance	1.1kΩ
	Maximum Operating Temperature	70°C
	Width	29mm
	Length	13mm
	Coil Power	530mW
	Height	41.7mm
	Standards/Approvals	RoHS
	Contact Material	Silver Alloy
	Contact Resistance	100mΩ

	Select all
	Brand Omron
	Product Type Non-Latching Relay
	Coil Voltage 24V dc
	Contact Configuration DPDT
	Series G2R
	Terminal Type Plug-In
	Switching Current 5A
	Switching DC Voltage 125V dc
	Minimum Operating Temperature -40°C
	Switching AC Voltage 125V ac
	Switching Power 150W
	Coil Resistance 1.1kΩ
	Maximum Operating Temperature 70°C
	Width 29mm
	Length 13mm
	Coil Power 530mW
	Height 41.7mm
	Standards/Approvals RoHS
	Contact Material Silver Alloy
	Contact Resistance 100mΩ

Omron Series G2R Non-Latching Relay, 24V DC Coil Voltage, SPDT Contact Configuration - G2R-2-SNDI-AP3 DC24(S)

This non-latching relay is a compact, plug-in relay designed for versatile use in automation and control systems. This relay offers a single-pole double-throw (SPDT) configuration, ensuring flexibility in circuit design. With dimensions of 13 x 29 x 41.7 mm, this relay operates efficiently at a coil voltage of 24V DC and supports a maximum switching current of 5A.

Features & Benefits

• Built-in mechanical operation indicator enhances user feedback

• Offers LED type coil disconnection self-diagnostic functionality

• High switching power capacity provides robust performance

• Ensures durable connections with plug-in terminal types

Applications

• Can be used in industrial automation systems

• Ideal for control circuits within electrical panels

• Utilised in lighting control for buildings

• Suitable for HVAC systems to manage operational switching

• Effective in machinery for precise control of electrical loads

What is the switching current capacity of this relay?

It can handle a maximum switching current of 5A for both AC and DC applications, ensuring reliable performance in various circuits.

Can it operate at high temperatures?

Yes, it is designed to operate at temperatures up to +70°C, making it suitable for high-temperature environments.

How straightforward is the wiring process when using this relay?

The relay reduces wiring complexity by 60% when combined with compatible sockets, facilitating faster installation and maintenance.

What specifications should I consider when integrating it into my system?

Pay attention to its coil voltage of 24V DC and the maximum switching voltage of 380V AC to ensure compatibility with existing circuit designs.
