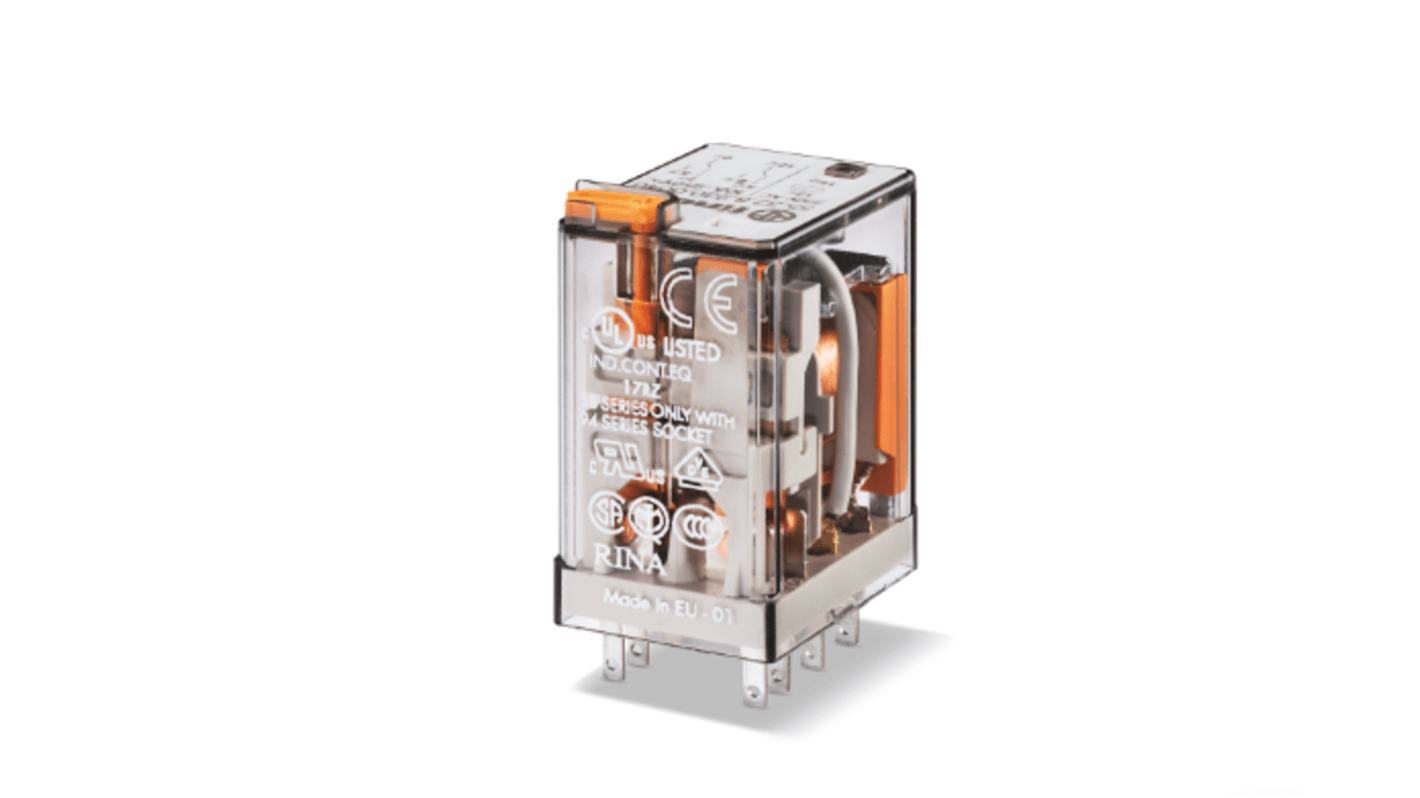

Finder Plug In Relay, 6V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 257-7382
- Mfr. Part No.:
- 553290060040
- Brand:
- Finder
Subtotal (1 unit)*
£13.19
(exc. VAT)
£15.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 20 unit(s) shipping from 23 October 2025
- Plus 999,999,963 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £13.19 |
*price indicative
- RS Stock No.:
- 257-7382
- Mfr. Part No.:
- 553290060040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 6V dc | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 2 | |
Series | 55 | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 20 A | |
Coil Power | 1.5W | |
Contact Material | Silver Alloy | |
Life | 200000 Cycles | |
Isolation Coil To Contact | 4kV | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -40°C | |
Standards Met | cURus, EAC | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 6V dc | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Series 55 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 20 A | ||
Coil Power 1.5W | ||
Contact Material Silver Alloy | ||
Life 200000 Cycles | ||
Isolation Coil To Contact 4kV | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met cURus, EAC | ||
Number of Coils Single | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 55 Relay, 6V DC Coil Voltage, DPDT Contact Configuration - 553290060040
This Finder DPDT relay is an essential component for reliable automation in various applications. Operating at a coil voltage of 6V DC, it features a dual-pole, double-throw (DPDT) configuration, allowing for versatile control of electric circuits. With a maximum switching current of 10A, it ensures efficient electrical management in demanding environments. This advanced relay meets high-performance specifications and operates effectively across a wide temperature range of -40°C to +85°C, making it suitable for challenging conditions.
Features & Benefits
• Designed to handle a maximum switching voltage of 400V AC
• Operates with 220V DC, providing extensive circuit control options
• Offers reliable performance with a lifespan of 200,000 cycles
• Utilises plug-in terminal type for straightforward installation
• Provides 4kV isolation between coil and contact for enhanced safety
• Cadmium-free contact material ensures environmental compliance
• Operates with 220V DC, providing extensive circuit control options
• Offers reliable performance with a lifespan of 200,000 cycles
• Utilises plug-in terminal type for straightforward installation
• Provides 4kV isolation between coil and contact for enhanced safety
• Cadmium-free contact material ensures environmental compliance
Applications
• Used for automating blinds, grilles, and shutters
• Suitable for controlling hoists and cranes in industrial settings
• Ideal for managing circuit breakers and electrical distribution panels
• Effective in road and tunnel lighting systems
• Suitable for controlling hoists and cranes in industrial settings
• Ideal for managing circuit breakers and electrical distribution panels
• Effective in road and tunnel lighting systems
What kind of maintenance is recommended for optimal performance?
Regular inspection of connections and ensuring that the relay is free from dust and contaminants will enhance its reliability. If used in high-frequency switching applications, checking for wear on contacts might also be beneficial.
How does the product perform in extreme temperatures?
It operates effectively in a wide temperature range from -40°C to +85°C, maintaining performance even in harsh environments.
What is the significance of the insulation between coil and contacts?
The 4kV insulation helps prevent electrical interference and ensures safety by protecting against unintended voltage spikes between the control coil and the switched circuits.
Can this relay be used in both AC and DC applications?
Yes, it is designed for use with both AC and DC coils, enabling it to function in a variety of electrical systems.
