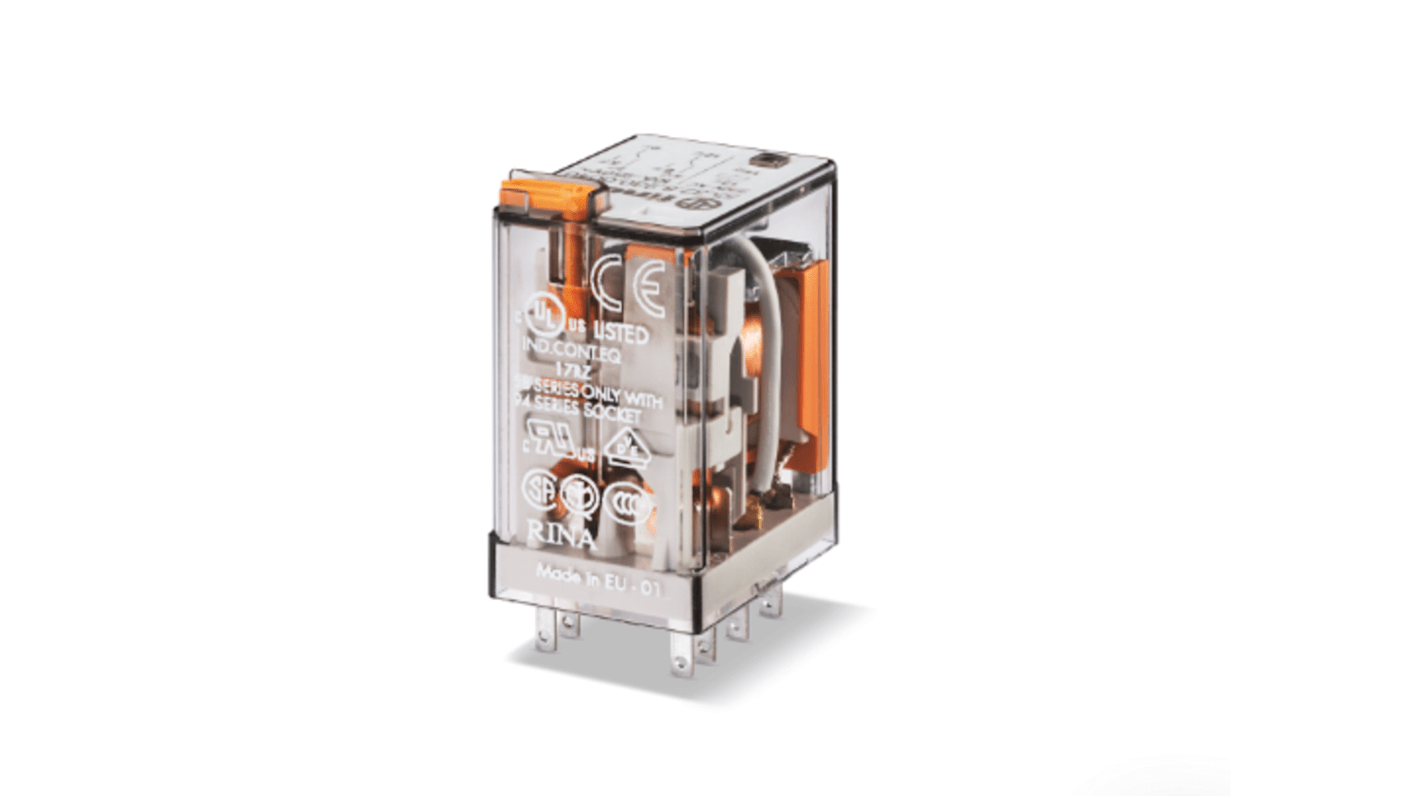

Finder Plug In Relay, 24V ac Coil, 10A Switching Current
- RS Stock No.:
- 257-7381
- Mfr. Part No.:
- 553280240054
- Brand:
- Finder
Subtotal (1 unit)*
£11.53
(exc. VAT)
£13.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 30 unit(s) shipping from 24 October 2025
- Plus 20 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £11.53 |
*price indicative
- RS Stock No.:
- 257-7381
- Mfr. Part No.:
- 553280240054
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V ac | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 2 | |
Latching | No | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V ac | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Latching No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 55 Relay, 24V AC Coil Voltage, DPDT Contact Configuration - 553280240054
This relay is a versatile electrical component designed for various automation applications. This relay operates at a coil voltage of 24V AC and features a DPDT contact configuration. It is suitable for use in environments ranging from -40°C to +85°C, ensuring reliable performance under varying thermal conditions.
Features & Benefits
• Operates at 24V AC for universal compatibility
• DPDT configuration allows flexible switching
• Rated for a maximum switching current of 10A
• High voltage capability up to 400V AC and 220V DC
• Compact design enables plug-in mounting for ease of installation
• DPDT configuration allows flexible switching
• Rated for a maximum switching current of 10A
• High voltage capability up to 400V AC and 220V DC
• Compact design enables plug-in mounting for ease of installation
Applications
• Ideal for control and management of electric power systems
• Utilised in automation for blinds, grilles, and shutters
• Engineered for use in hoists and cranes for improved safety
• Effective in road and tunnel lighting for efficient operation
• Suitable for electrical distribution boards and circuit breakers
• Utilised in automation for blinds, grilles, and shutters
• Engineered for use in hoists and cranes for improved safety
• Effective in road and tunnel lighting for efficient operation
• Suitable for electrical distribution boards and circuit breakers
What are the advantages of using a DPDT configuration?
The DPDT configuration allows for alternating the path of the current, which is essential for controlling multiple circuits simultaneously. It provides options for reversing motor direction or enhancing switching capabilities in automation applications.
How does the operating temperature range affect relay performance?
The broad operating temperature range from -40°C to +85°C enables this relay to function reliably in extreme conditions. This makes it suitable for outdoor installations and harsh environments, ensuring long-lasting performance and stability.
What is the significance of AgNi contact material in this relay?
AgNi contact material is known for its excellent electrical conductivity and durability. It minimises contact welding and improves the relay's lifespan, making it an ideal choice for applications where reliability is crucial.
