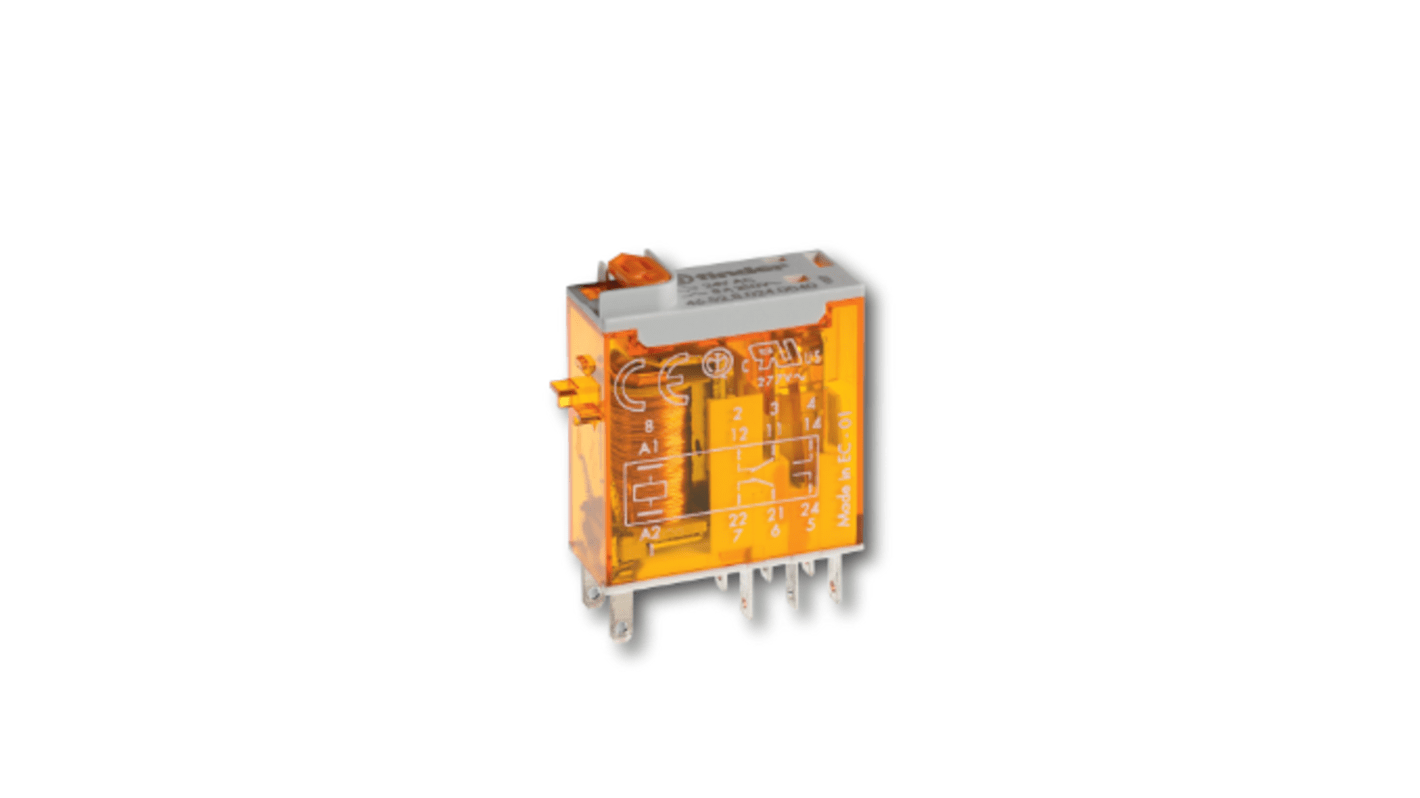

Finder Plug-In Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 257-7376
- Mfr. Part No.:
- 465290240020
- Brand:
- Finder
Subtotal (1 unit)*
£8.66
(exc. VAT)
£10.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 70 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £8.66 |
*price indicative
- RS Stock No.:
- 257-7376
- Mfr. Part No.:
- 465290240020
- Brand:
- Finder
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | DPDT | |
Mounting Type | Plug-In Mount | |
Switching Current | 8A | |
Number of Poles | 2 | |
Latching | No | |
Series | 46 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 440V ac | |
Maximum Switching Voltage DC | 125V dc | |
Maximum Switching Current AC | 15 A | |
Coil Power | 500mW | |
Life | 100000 Cycles | |
Isolation Coil To Contact | 6kV | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver Alloy | |
Standards Met | cURus, EAC | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type Plug-In Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Series 46 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 440V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Maximum Switching Current AC 15 A | ||
Coil Power 500mW | ||
Life 100000 Cycles | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Standards Met cURus, EAC | ||
Number of Coils Single | ||
