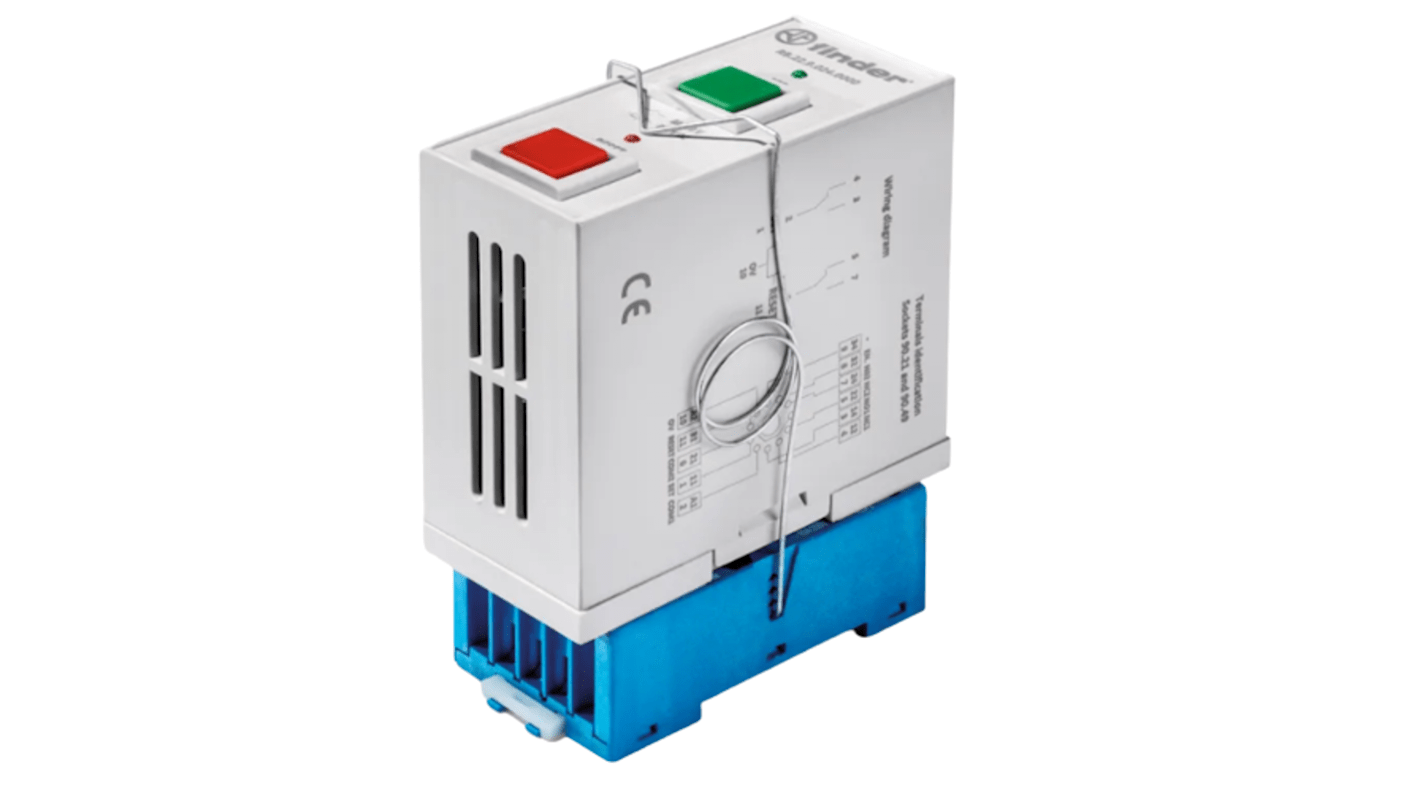

Finder Relay, 24V dc Coil, 8A Switching Current, 2RT
- RS Stock No.:
- 247-9276
- Mfr. Part No.:
- RB2290249021
- Brand:
- Finder
Subtotal (1 unit)*
£295.49
(exc. VAT)
£354.59
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 8 unit(s) shipping from 08 October 2026
- Plus 4 unit(s) shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £295.49 |
*price indicative
- RS Stock No.:
- 247-9276
- Mfr. Part No.:
- RB2290249021
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | 2RT | |
| Series | RB | |
| Terminal Type | Screw | |
| Switching Current | 8A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 60V dc | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Length | 50mm | |
| Height | 15mm | |
| Coil Power | 1W | |
| Width | 10mm | |
| Standards/Approvals | RoHS | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration 2RT | ||
Series RB | ||
Terminal Type Screw | ||
Switching Current 8A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 60V dc | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Length 50mm | ||
Height 15mm | ||
Coil Power 1W | ||
Width 10mm | ||
Standards/Approvals RoHS | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- BR
The Finder's RB series bistable relay with SET and RESET signals and LED command status indication used for control and signaling, power plants, automatic warehouses and Panels for electrical distribution like applications.
2 CO (DPDT) changeover contact
24V dc voltage supply
11 pin socket type 90.21 mount
Cadmium free contact material
