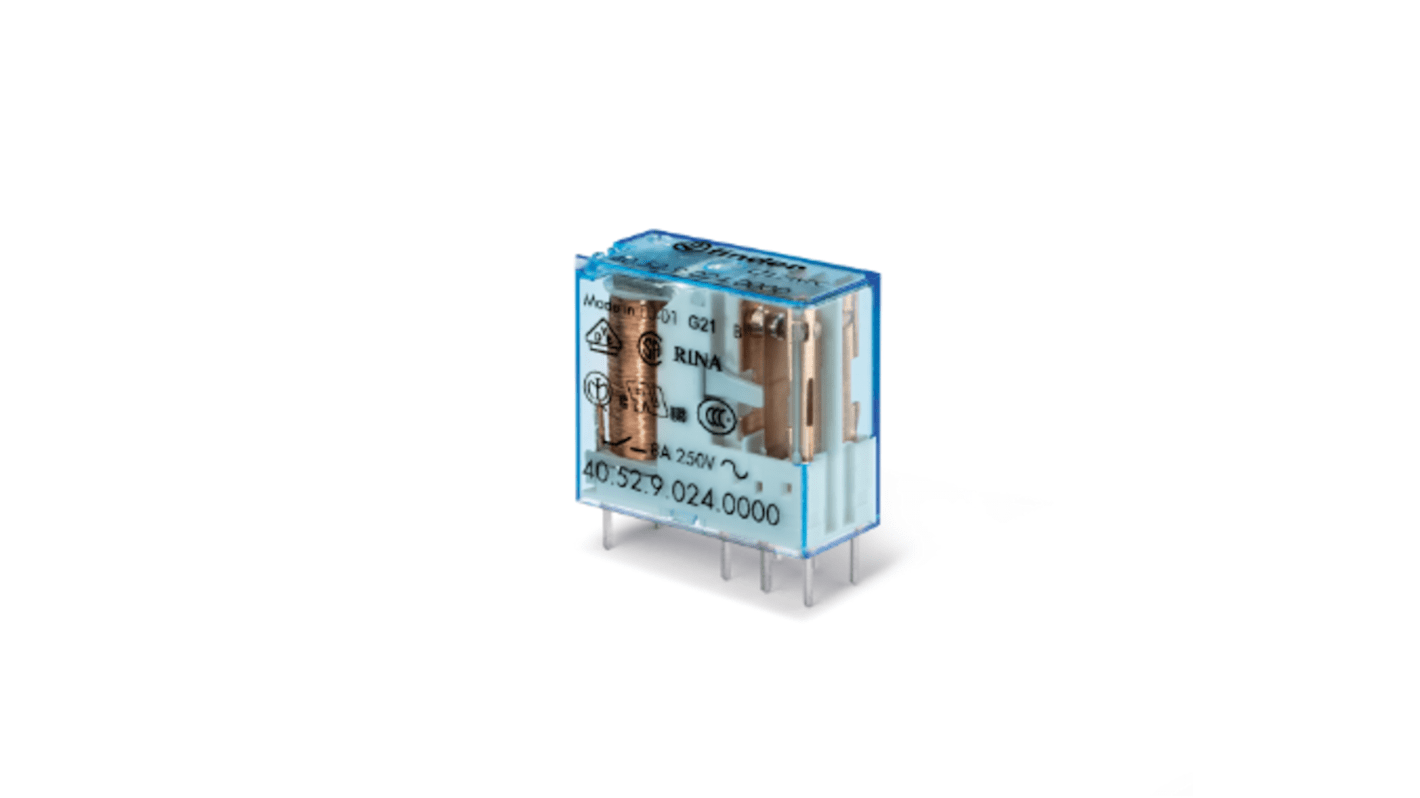

Finder PCB Mount Power Relay, 24V ac/dc Coil, 8A Switching Current, DPDT

View all Power Relays

Subtotal (1 unit)*

£13.42

(exc. VAT)

£16.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 34 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£13.42

*price indicative

RS Stock No.:
257-7365
Mfr. Part No.:
405260240000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

24V ac/dc

Contact Configuration

DPDT

Mounting Type

PCB Mount

Switching Current

8A

Number of Poles

2

Series

40

Latching

No

Maximum Switching Voltage AC

400V ac

Maximum Switching Voltage DC

125V dc

Maximum Switching Current AC

15 A

Coil Power

500mW

Standards Met

cURus, EAC

Contact Material

Silver Alloy

Life

100000 Cycles

Isolation Coil To Contact

6kV

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Number of Coils

Single

RoHS Status: Exempt

COO (Country of Origin):
IT

Finder Series 40 Power Relay, 24V AC/DC Coil Voltage, 8A Switching Current - 405260240000


This power relay is a high-performance electrical component designed for automation and control applications. Ideal for PCB mounting, it operates at a coil voltage of 24V AC/DC and delivers robust switching capabilities with its DPDT configuration. With a maximum switching current of 8A and the ability to endure extreme conditions, this relay ensures reliability in various operational environments.

Features & Benefits


• Operates efficiently with a coil power of 0.5W
• Surpasses electrical standards with 6kV isolation from coil to contact
• Capable of handling maximum AC and DC voltages up to 400V and 125V respectively
• Built with AgNi contact material for enhanced durability
• Supports 100,000 mechanical cycles for long-lasting performance
• Optimised for applications needing a compact and reliable design

Applications


• Utilised in automation systems for controlling blinds and shutters
• Essential in medical and dental equipment for precise operations
• Implemented in control panels within electrical distribution systems
• Commonly found in electronic circuit boards and vending machines
• Used in toys and door/gate openers to simplify control mechanisms

What is the maximum current this relay can switch?


The relay can switch a maximum current of 8A, making it suitable for various mid-range applications.

How does the isolation feature enhance safety?


With an isolation rating of 6kV, this relay minimises the risk of electrical shock and enhances overall circuit safety.

Can it be used in both AC and DC applications?


Yes, this relay is designed to operate with both AC and DC coils, providing versatility across different systems.

What temperature range does this relay operate within?


It is rated to function effectively between -40°C and +85°C, ensuring performance in extreme conditions.

Is it suitable for industrial use?


Absolutely, its robust design and high durability make it ideal for industrial power applications, ensuring consistent operation.
