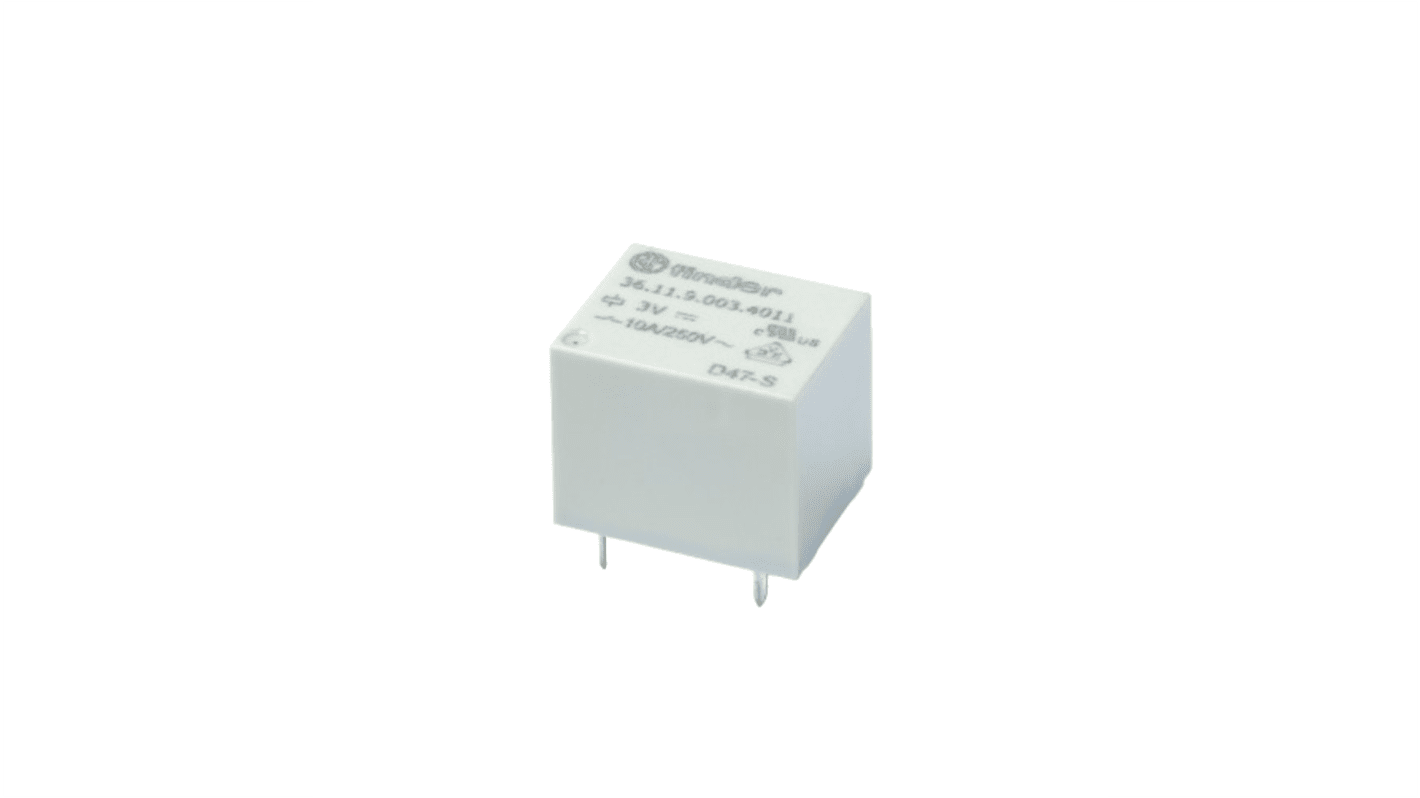

Finder PCB Mount Relay, 3V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 257-7356
- Mfr. Part No.:
- 361190034011
- Brand:
- Finder
Subtotal (1 unit)*
£2.48
(exc. VAT)
£2.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2.48 |
*price indicative
- RS Stock No.:
- 257-7356
- Mfr. Part No.:
- 361190034011
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 3V dc | |
Contact Configuration | SPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10A | |
Number of Poles | 1 | |
Latching | No | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 3V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Latching No | ||
RoHS Status: Exempt
Finder Series 36 Relay, 3V DC Coil Voltage, 10A Switching Current - 361190034011
This relay is a versatile component designed for PCB mounting, featuring a compact 'sugar cube' form factor suitable for a variety of applications. It operates at a 3V DC coil voltage, enabling efficient control of electrical devices. With a single pole and double throw (SPDT) configuration, this relay can handle a maximum switching current of 10A, making it ideal for use in automation and electronic circuits.
Features & Benefits
• Compact size enhances installation flexibility in limited spaces
• SPDT relay configuration allows for versatile circuit designs
• Supports a maximum switching current of 10A for robust control
• AgSnO2 contact material ensures longevity and performance
• SPDT relay configuration allows for versatile circuit designs
• Supports a maximum switching current of 10A for robust control
• AgSnO2 contact material ensures longevity and performance
Applications
• Utilised in burners, boilers, and furnaces
• Suitable for controlling jacuzzis and hot tubs
• Implemented in washing machines for cycle control
• Used in hi-fi systems for improved signal handling
• Ideal for automated controls of blinds and shutters
• Found in electronic circuit boards and kits
• Suitable for controlling jacuzzis and hot tubs
• Implemented in washing machines for cycle control
• Used in hi-fi systems for improved signal handling
• Ideal for automated controls of blinds and shutters
• Found in electronic circuit boards and kits
Is there a difference in handling AC and DC loads with this component?
The relay can manage AC loads up to 277V and DC loads up to 48V, making it adaptable for various applications in both types of circuitry.
What is the expected life cycle of this relay under regular operation?
It is rated for a life cycle of 50,000 operations, ensuring reliable performance in long-term applications.
How does the environmental rating affect the installation of this relay?
The relay features a protection rating of RT III, allowing it to withstand harsh environments, such as those involving moisture and dust, making it suitable for varied settings.
Can this relay be used with different coil voltages?
Yes, although it operates at a nominal voltage of 3V DC, it is compatible with various coil voltages within the specified range of 3 to 48 V DC as outlined in the technical specifications.
