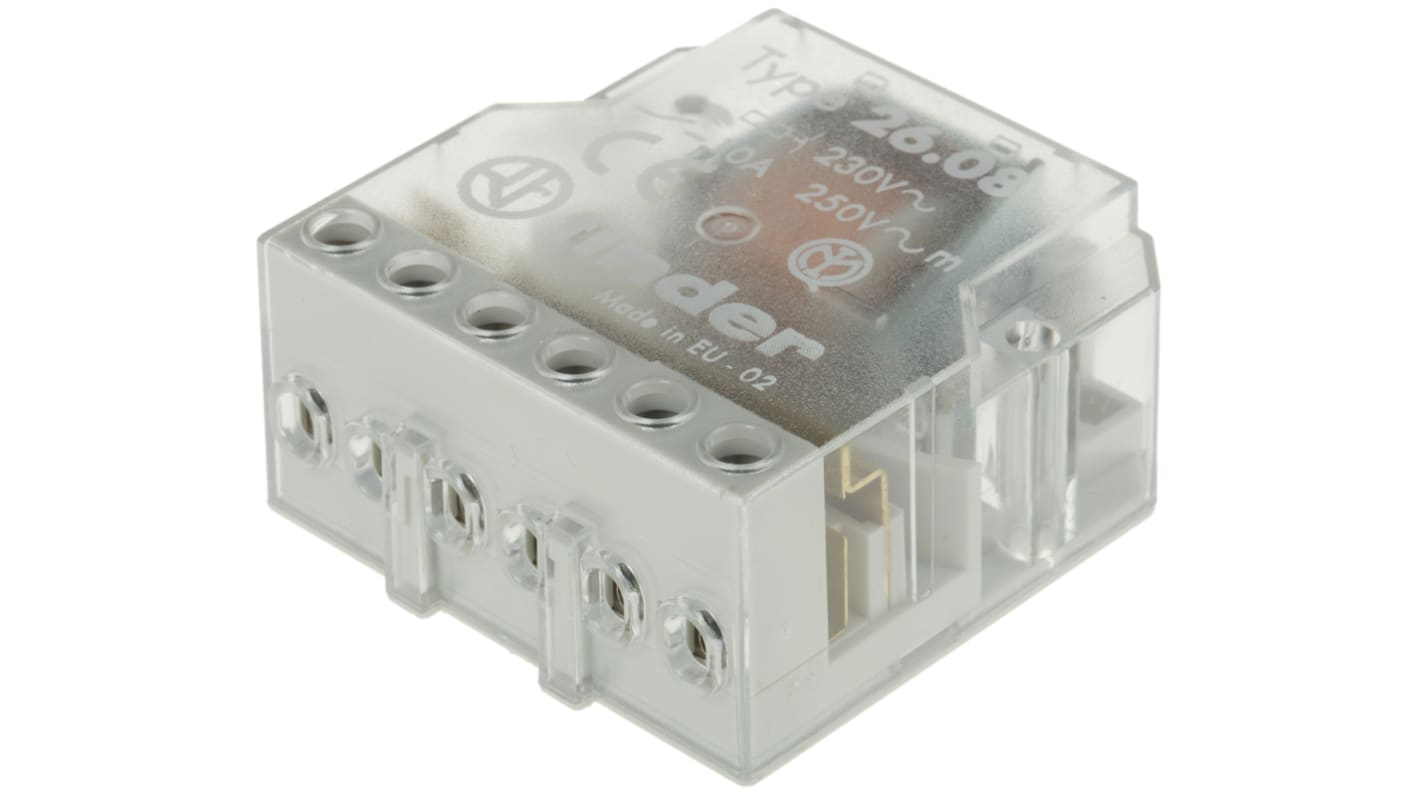

Finder Panel Mount Modular Step Relay, 230V ac Coil, 10A Switching Current, DPST-2NO
- RS Stock No.:
- 253-3956
- Mfr. Part No.:
- 26.08.8.230.0000
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£18.57
(exc. VAT)
£22.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 74 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £18.57 |
| 5 - 9 | £17.94 |
| 10 + | £17.19 |
*price indicative
- RS Stock No.:
- 253-3956
- Mfr. Part No.:
- 26.08.8.230.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPST-2NO | |
| Mounting Type | Panel Mount | |
| Switching Current | 10A | |
| Number of Poles | 3 | |
| Series | 26 Series | |
| Latching | No | |
| Terminal Type | Screw | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 45mm | |
| Coil Resistance | 6250Ω | |
| Coil Power | 4.5W | |
| Minimum Operating Temperature | -40°C | |
| Height | 46.6mm | |
| Depth | 22mm | |
| Maximum Operating Temperature | +40°C | |
| Isolation Coil To Contact | 4kV | |
| Life | 100000 (Electrical) cycles, 300000 (DC/AC Mechanical) cycles | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 2.5 kVA | |
Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration DPST-2NO | ||
Mounting Type Panel Mount | ||
Switching Current 10A | ||
Number of Poles 3 | ||
Series 26 Series | ||
Latching No | ||
Terminal Type Screw | ||
Maximum Switching Voltage AC 400V ac | ||
Length 45mm | ||
Coil Resistance 6250Ω | ||
Coil Power 4.5W | ||
Minimum Operating Temperature -40°C | ||
Height 46.6mm | ||
Depth 22mm | ||
Maximum Operating Temperature +40°C | ||
Isolation Coil To Contact 4kV | ||
Life 100000 (Electrical) cycles, 300000 (DC/AC Mechanical) cycles | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 2.5 kVA | ||
- COO (Country of Origin):
- IT

Finder 26 series Modular Step Relay, 230V AC Coil Voltage, 10A Switching Current - 26.08.8.230.0000
This modular step relay is designed for effective control in a variety of applications, particularly useful in lighting setups for hotels, offices, and hospitals. With a compact design, its dimensions are 45mm in length, 22mm in depth, and 46.6mm in height, making it an ideal panel mount relay for both commercial and residential environments.
Features & Benefits
• Offers a coil voltage of 230V AC for versatile use
• Delivers up to 10A switching capacity for reliable performance
• Supports screw terminal connections for secure wiring setups
• Utilises silver alloy relay contacts for improved longevity
• Features a maximum switching voltage of 400V AC for high-load usage
• Delivers up to 10A switching capacity for reliable performance
• Supports screw terminal connections for secure wiring setups
• Utilises silver alloy relay contacts for improved longevity
• Features a maximum switching voltage of 400V AC for high-load usage
Applications
• Used for corridor lighting control in hotels and offices
• Provides effective living and bedroom light control
• Suitable for integration in mechanical and electrical automation systems
• Helps manage lighting sequences in environments with multiple control points
• Provides effective living and bedroom light control
• Suitable for integration in mechanical and electrical automation systems
• Helps manage lighting sequences in environments with multiple control points
What is the operational range for this relay?
The relay operates effectively within a temperature range of -40°C to +40°C, ensuring reliability in various environments.
How does the coil power consumption impact functionality?
With a coil power of just 4.5W, it allows for energy-efficient operation while maintaining strong performance across applications.
What switching sequences are available with this device?
This relay provides a choice of six distinct switching sequences, enabling customised control based on specific needs.
Can the relay handle different types of light loads?
Yes, it is capable of managing various loads, including incandescent, halogen, and LED lights, making it a versatile choice for lighting control.
