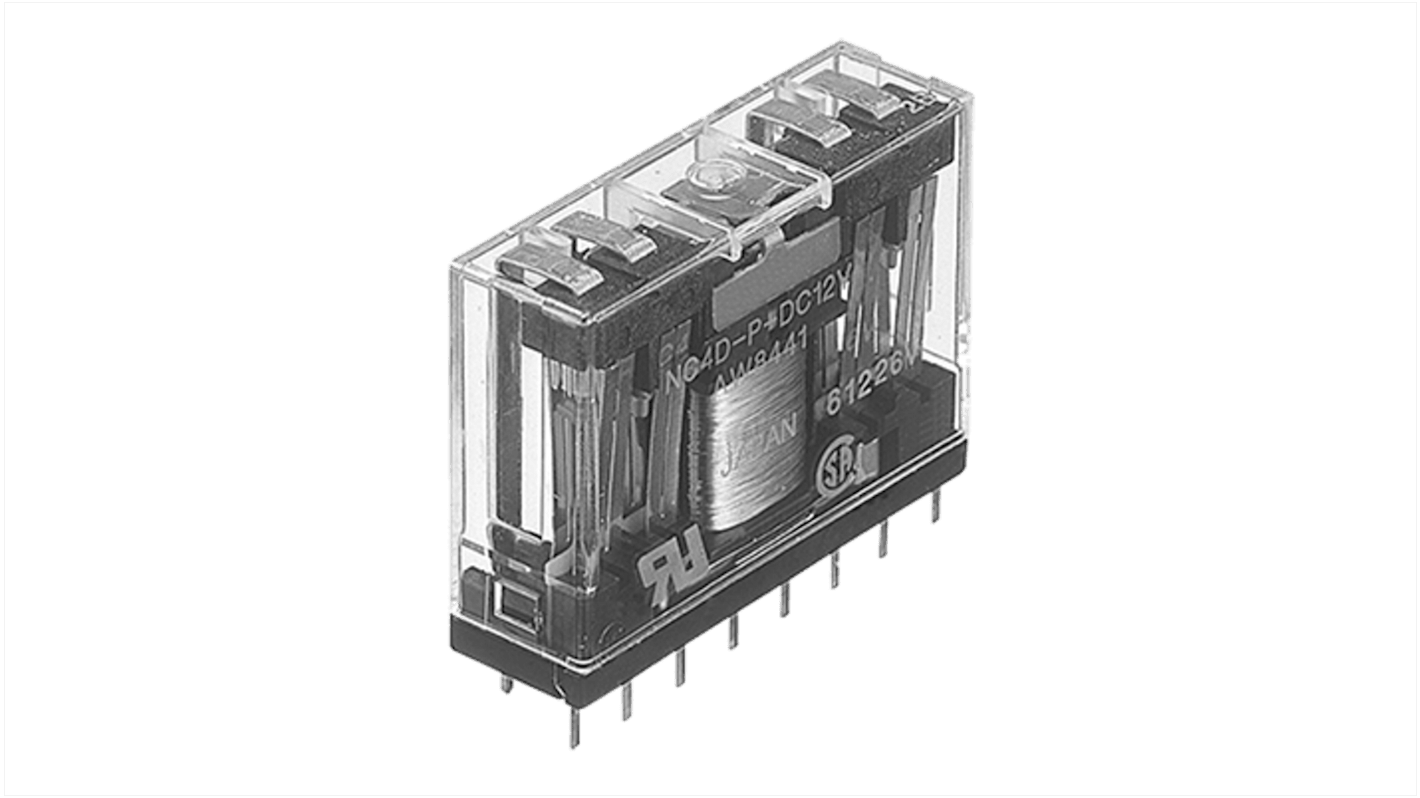

Panasonic PCB Non-Latching Relay, 24V dc Coil, 30mA Switching Current, 4PDT
- RS Stock No.:
- 247-4336
- Mfr. Part No.:
- NC4D-P-DC24V
- Brand:
- Panasonic
Bulk discount available
View bulk pricing optionsSubtotal (1 tray of 20 units)*
£415.34
(exc. VAT)
£498.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 20 unit(s) shipping from 02 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 20 - 20 | £20.767 | £415.34 |
| 40 - 80 | £20.19 | £403.80 |
| 100 - 180 | £19.644 | £392.88 |
| 200 + | £19.127 | £382.54 |
*price indicative
- RS Stock No.:
- 247-4336
- Mfr. Part No.:
- NC4D-P-DC24V
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 24V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | 4PDT | |
| Mount Type | PCB | |
| Series | NC | |
| Terminal Type | Solder | |
| Switching Current | 30mA | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 60W | |
| Coil Resistance | 145Ω | |
| Maximum Operating Temperature | 60°C | |
| Height | 12mm | |
| Standards/Approvals | VDE, UL, RoHS, CSA | |
| Width | 7mm | |
| Coil Power | 200mW | |
| Length | 22mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 24V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration 4PDT | ||
Mount Type PCB | ||
Series NC | ||
Terminal Type Solder | ||
Switching Current 30mA | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Switching Power 60W | ||
Coil Resistance 145Ω | ||
Maximum Operating Temperature 60°C | ||
Height 12mm | ||
Standards/Approvals VDE, UL, RoHS, CSA | ||
Width 7mm | ||
Coil Power 200mW | ||
Length 22mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- JP
The Panasonic NC series of power relays, the contact arrangement is 4 form C for this relay. The relay has twin bifurcated contacts. It is used in applications like electric power equipment, industrial equipment and measuring devices.
Twin (bifurcated) contact
Plug-in terminal/PC board terminal and, sockets and terminal sockets are available
