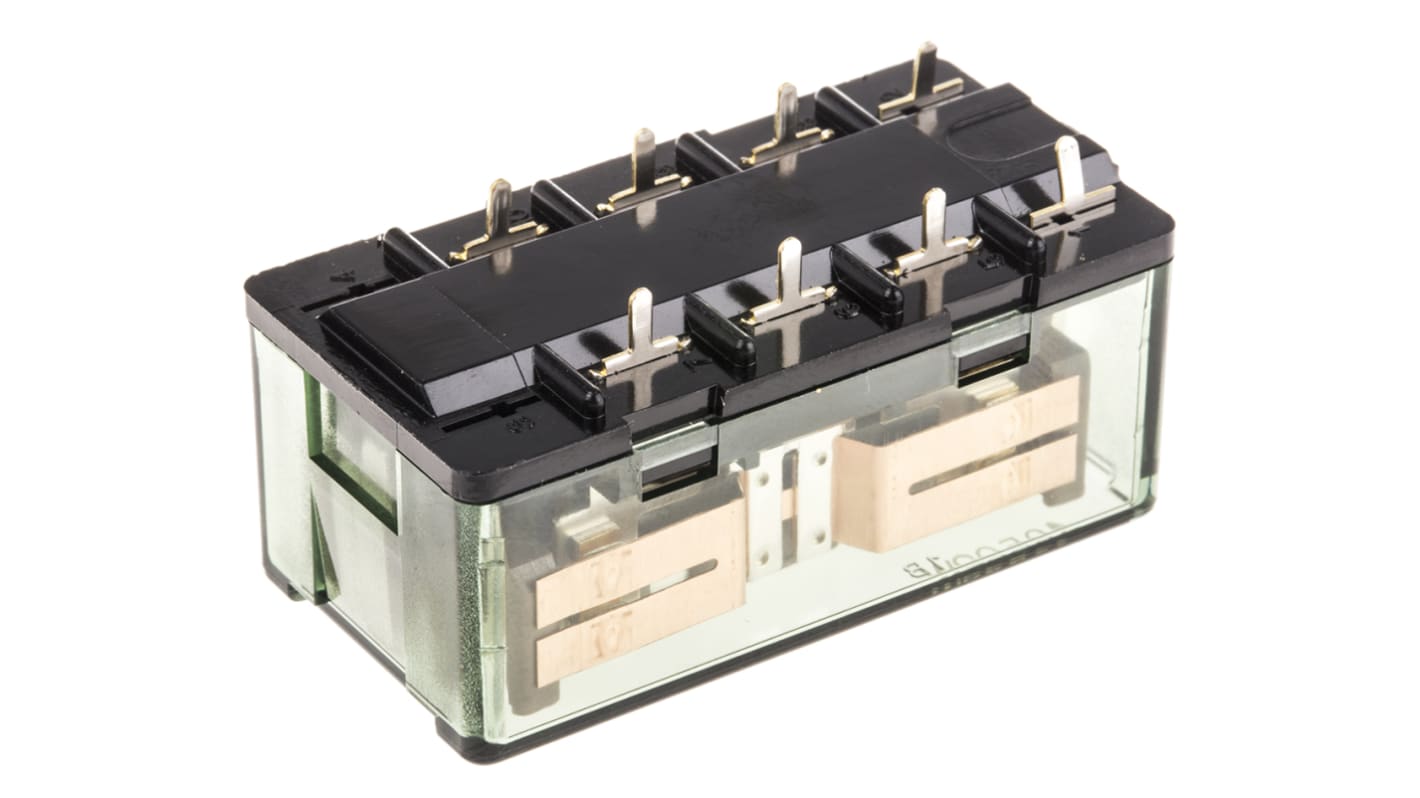

Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 15 A
- RS Stock No.:
- 127-9516
- Mfr. Part No.:
- SP2-P-DC24V
- Brand:
- Panasonic
1 In stock - FREE next working day delivery available
13 available from Europe for delivery within 2 working day(s).
Price Each
£20.36
(exc. VAT)
£24.43
(inc. VAT)
Units | Per unit |
---|---|
1 - 24 | £20.36 |
25 - 49 | £19.43 |
50 - 99 | £18.91 |
100 + | £18.41 |
- RS Stock No.:
- 127-9516
- Mfr. Part No.:
- SP2-P-DC24V
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
SP Series Relay
From Panasonic, these SP Series PCB mount power relays are highly sensitive, highly reliable and have a long life. As well as being compact, the SP series PCB power relays also offer strong resistance to vibration and shock.
Features and Benefits:
• High sensitivity power relay
• Nominal operating power of 300mW and minimum operating power of 150mW
• High vibration/shock resistance
• Dimensions, DPDT H22 x W50 x D25.6 mm / 4PDT H22 x W50 x D36.8 mm
• High sensitivity power relay
• Nominal operating power of 300mW and minimum operating power of 150mW
• High vibration/shock resistance
• Dimensions, DPDT H22 x W50 x D25.6 mm / 4PDT H22 x W50 x D36.8 mm
Note
This range also includes a PCB Mounting Board for use with relays (see stock number 127-9493.)
Approvals
UL, CSA, TUV
![](https://media.rs-online.com/t_line/LF171880-10.gif)
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | DPDT |
Switching Current | 15 A |
Mounting Type | PCB Mount |
Terminal Type | Through Hole |
Coil Resistance | 1.92 kΩ |
Application | Power |
Length | 51mm |
Depth | 25.6mm |
Height | 22mm |
Dimensions | 51 x 25.6 x 22mm |
Maximum Switching Power AC | 3.75 kVA |
Contact Material | Silver Alloy |
Life | 50000000 (Electrical) cycles |
Operating Temperature Range | -50 → +60°C |
Maximum Switching Power DC | 300 W |
Coil Power | 300mW |
Minimum Operating Temperature | -50°C |
Isolation Coil To Contact | 3kV rms |
Maximum Operating Temperature | +60°C |
