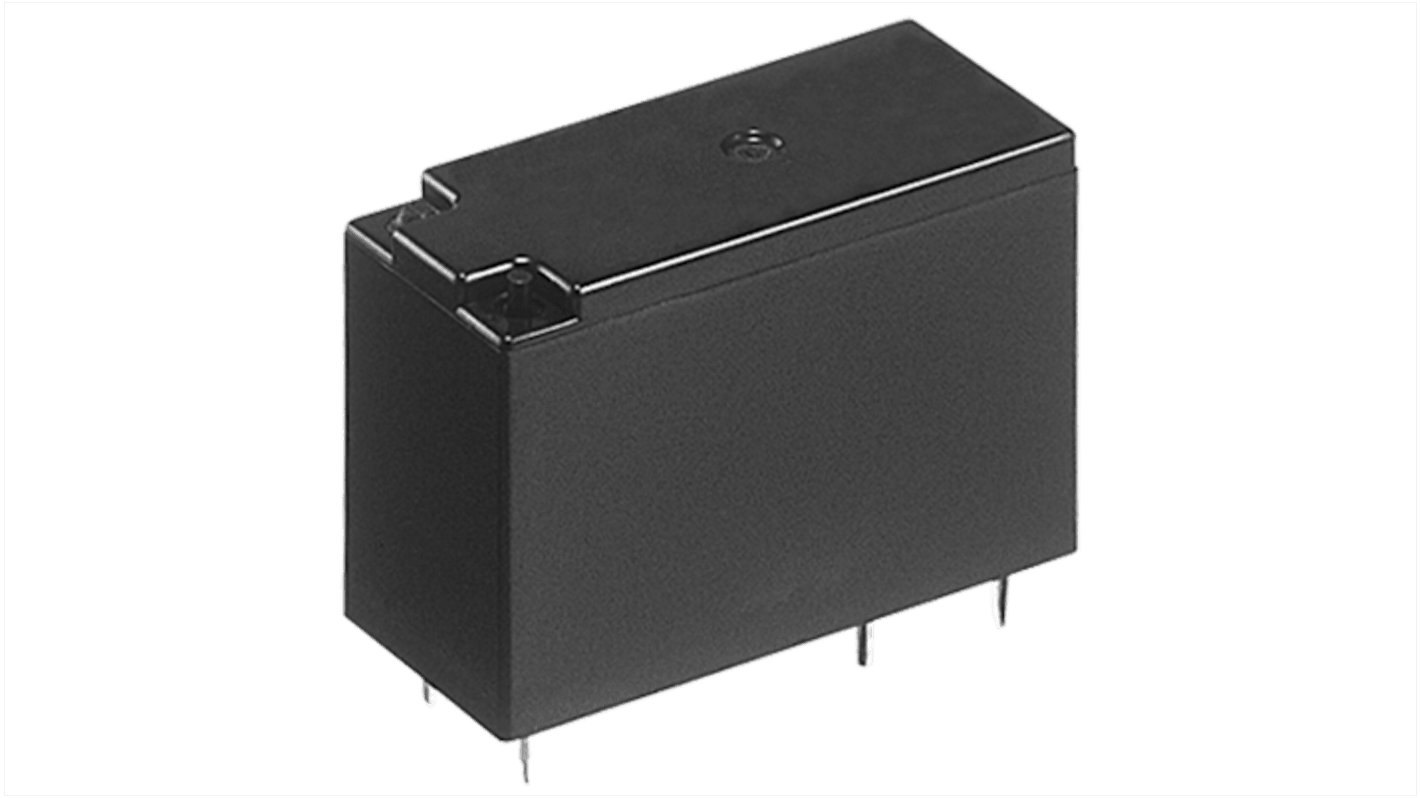

Panasonic PCB Non-Latching Relay, 24V dc Coil, 22mA Switching Current, SPST
- RS Stock No.:
- 247-4323
- Distrelec Article No.:
- 110-86-716
- Mfr. Part No.:
- JW1AFSN-DC24V-F
- Brand:
- Panasonic
Get a bulk buy discount
Add 5 more to save 4%
View bulk pricing optionsSubtotal (1 unit)*
£2.08
(exc. VAT)
£2.50
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 80 unit(s), ready to ship
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £2.08 | - |
| 5 - 9 | £1.99 | 4% |
| 10 - 24 | £1.92 | 7% |
| 25 - 49 | £1.87 | 10% |
| 50 + | £1.82 | 12% |
*price indicative
- RS Stock No.:
- 247-4323
- Distrelec Article No.:
- 110-86-716
- Mfr. Part No.:
- JW1AFSN-DC24V-F
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 24V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | JW | |
| Terminal Type | Solder | |
| Switching Current | 22mA | |
| Switching Power | 60W | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 145Ω | |
| Maximum Operating Temperature | 60°C | |
| Length | 22mm | |
| Width | 7mm | |
| Standards/Approvals | CSA, RoHS, UL, VDE | |
| Height | 12mm | |
| Coil Power | 200mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 24V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series JW | ||
Terminal Type Solder | ||
Switching Current 22mA | ||
Switching Power 60W | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 145Ω | ||
Maximum Operating Temperature 60°C | ||
Length 22mm | ||
Width 7mm | ||
Standards/Approvals CSA, RoHS, UL, VDE | ||
Height 12mm | ||
Coil Power 200mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- TH
The Panasonic power relay from JW series from 2 form C series, the device has standard contact capacity of 5 A. It has a sealed, protective construction. It operates at the maximum 70% of the rated coil voltage. The rated coil voltage for this device is 24 Vdc.
It has AgSnO2 type (1a) contacts
It used in applications like home appliance, office machine and industrial equipment
