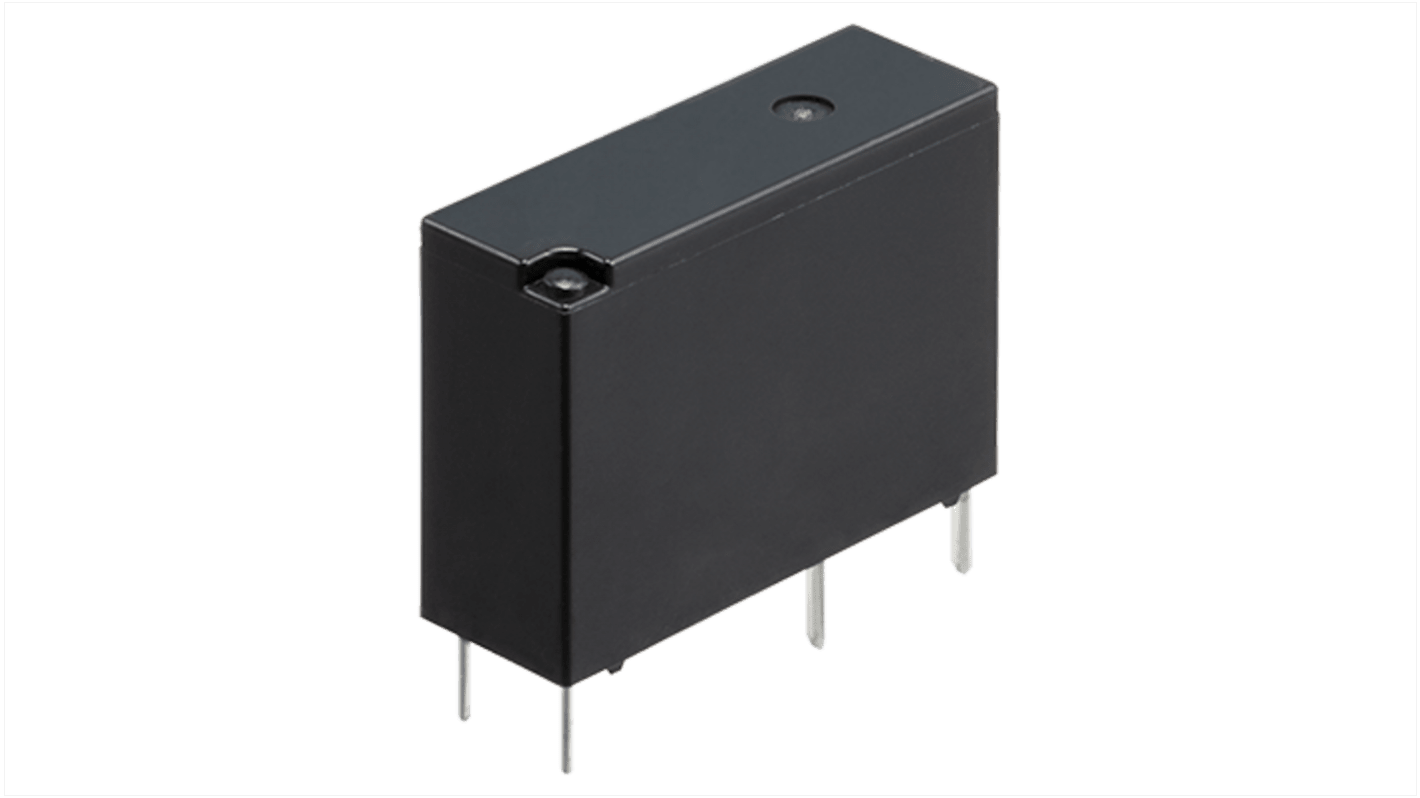

Panasonic PCB Non-Latching Relay, 24V dc Coil, 8.3mA Switching Current, SPST
- RS Stock No.:
- 247-4102
- Distrelec Article No.:
- 304-40-721
- Mfr. Part No.:
- ALDP124
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 2 units)*
£4.14
(exc. VAT)
£4.96
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £2.07 | £4.14 |
| 10 - 22 | £2.00 | £4.00 |
| 24 + | £1.935 | £3.87 |
*price indicative
- RS Stock No.:
- 247-4102
- Distrelec Article No.:
- 304-40-721
- Mfr. Part No.:
- ALDP124
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | LD-P | |
| Terminal Type | Solder | |
| Switching Current | 8.3mA | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Switching Power | 60W | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 145Ω | |
| Maximum Operating Temperature | 60°C | |
| Coil Power | 200mW | |
| Length | 22mm | |
| Width | 7mm | |
| Standards/Approvals | CSA, RoHS, UL, VDE | |
| Height | 12mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Non-Latching Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series LD-P | ||
Terminal Type Solder | ||
Switching Current 8.3mA | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Switching Power 60W | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 145Ω | ||
Maximum Operating Temperature 60°C | ||
Coil Power 200mW | ||
Length 22mm | ||
Width 7mm | ||
Standards/Approvals CSA, RoHS, UL, VDE | ||
Height 12mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Panasonic ALDP series of power relays, it has 1 form A contact arrangement. This product has class E insulation. The rated coil voltage is 24 Vdc.
This product comes in a tube packaging
It is used in applications like boilers, hot water units, air conditioner, fan heaters, refrigerator, microwave ovens
