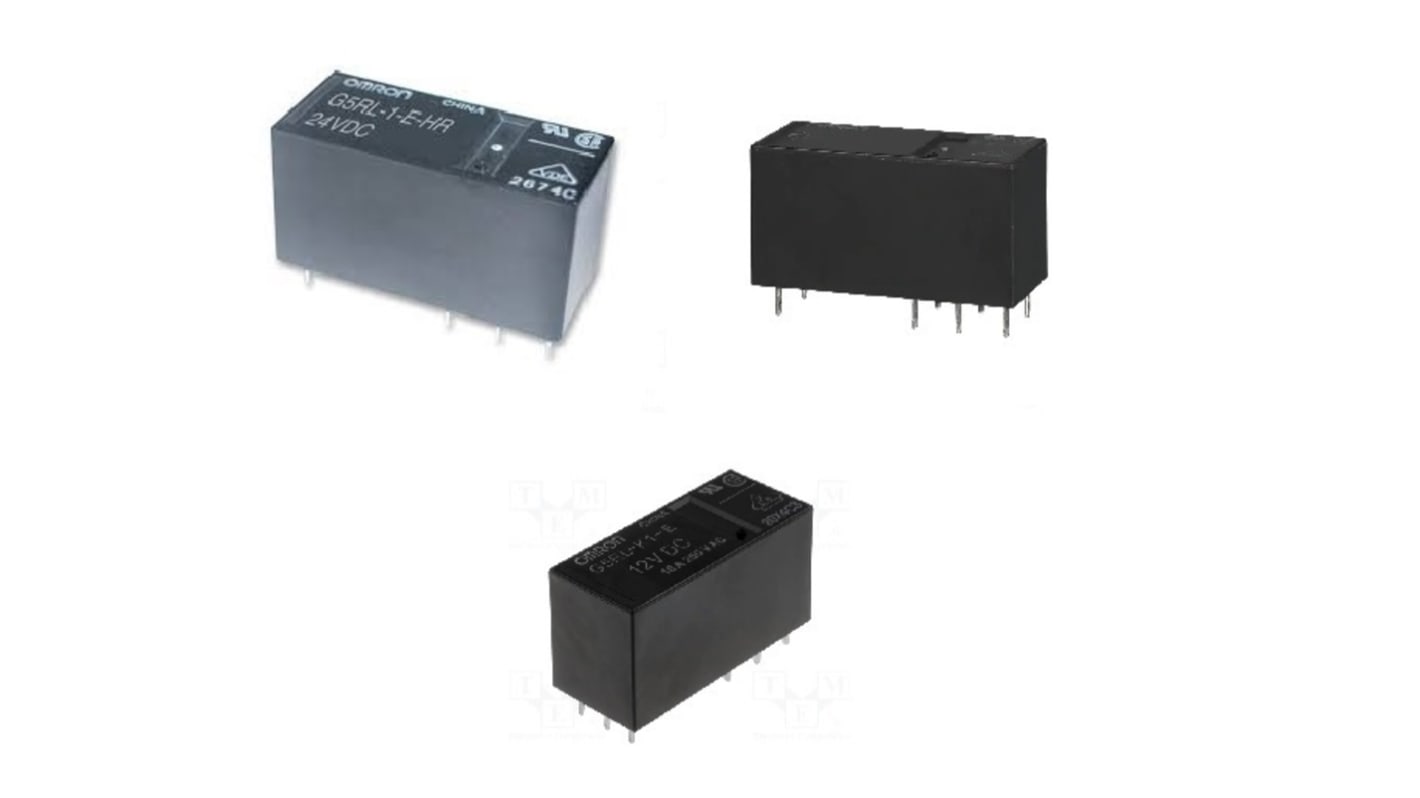

Aratas PCB Relay, 5V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 243-6583
- Mfr. Part No.:
- G5RL-1-E-HR DC5
- Brand:
- Aratas
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 100 units)*
£194.70
(exc. VAT)
£233.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 13 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 100 - 100 | £1.947 | £194.70 |
| 200 - 400 | £1.878 | £187.80 |
| 500 + | £1.839 | £183.90 |
*price indicative
- RS Stock No.:
- 243-6583
- Mfr. Part No.:
- G5RL-1-E-HR DC5
- Brand:
- Aratas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Product Type | Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | G5RL | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Switching AC Voltage | 24V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 4kVA | |
| Switching DC Voltage | 24V dc | |
| Coil Resistance | 62.5Ω | |
| Maximum Operating Temperature | 85°C | |
| Length | 29mm | |
| Standards/Approvals | RoHS | |
| Height | 15.7mm | |
| Width | 12.7mm | |
| Coil Power | 750mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Product Type Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series G5RL | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Switching AC Voltage 24V ac | ||
Minimum Operating Temperature -40°C | ||
Switching Power 4kVA | ||
Switching DC Voltage 24V dc | ||
Coil Resistance 62.5Ω | ||
Maximum Operating Temperature 85°C | ||
Length 29mm | ||
Standards/Approvals RoHS | ||
Height 15.7mm | ||
Width 12.7mm | ||
Coil Power 750mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
The Omron G5RL series is a low profile power relays have single pole comes in various models. The coil voltage is 5 Vdc, coil resistance is 62.5 ohms, and coil current is 80 mA. It has Silver alloy (Ag) coated contacts.
Feature creepage distance of 8mm between coil and contacts
An ambient operating temperature of 85ºC
