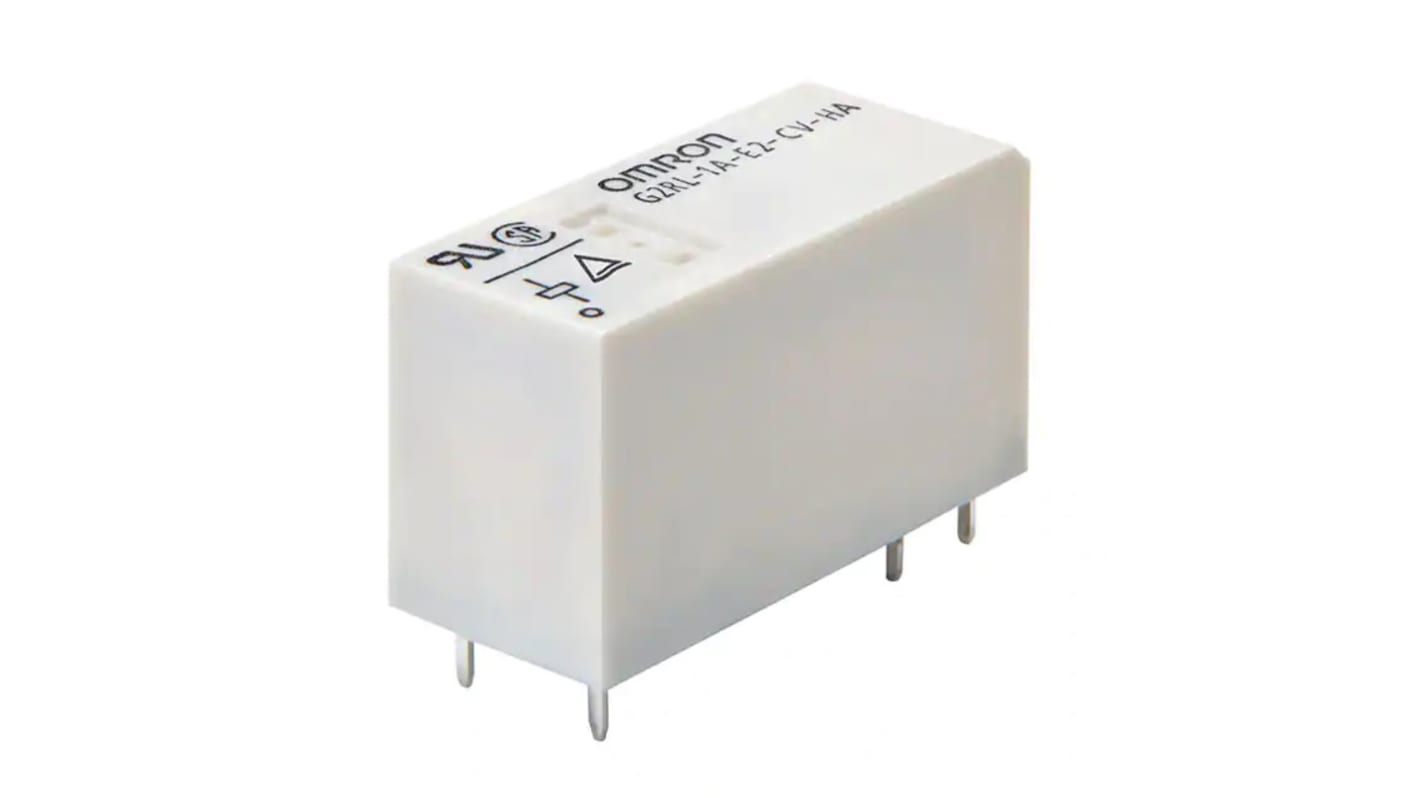

Omron PCB Relay, 24V dc Coil, 23A Switching Current, SPST
- RS Stock No.:
- 243-6563P
- Mfr. Part No.:
- G2RL-1A-E2-CV-HA DC12
- Brand:
- Omron
Bulk discount available
Subtotal 10 units (supplied in a tube)*
£30.10
(exc. VAT)
£36.10
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 10 - 49 | £3.01 |
| 50 - 99 | £2.94 |
| 100 - 249 | £2.81 |
| 250 + | £2.72 |
*price indicative
- RS Stock No.:
- 243-6563P
- Mfr. Part No.:
- G2RL-1A-E2-CV-HA DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Product Type | Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G2RL-1A-E2-CV-HA | |
| Terminal Type | Screw | |
| Switching Current | 23A | |
| Switching DC Voltage | 60V dc | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Coil Resistance | 360Ω | |
| Height | 16.7mm | |
| Length | 50mm | |
| Width | 10mm | |
| Standards/Approvals | EN60335-1, UL1446 | |
| Coil Power | 400mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Product Type Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G2RL-1A-E2-CV-HA | ||
Terminal Type Screw | ||
Switching Current 23A | ||
Switching DC Voltage 60V dc | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Coil Resistance 360Ω | ||
Height 16.7mm | ||
Length 50mm | ||
Width 10mm | ||
Standards/Approvals EN60335-1, UL1446 | ||
Coil Power 400mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron G2RL series is compact power relays used in high current load switching application and high ambient temperature environment. The coil voltage is 12 Vdc, coil resistance is 360 ohms and coil current is 33.3 mA.
Meets ambient operating temperature requirements of 105°C
Silver alloy contact
