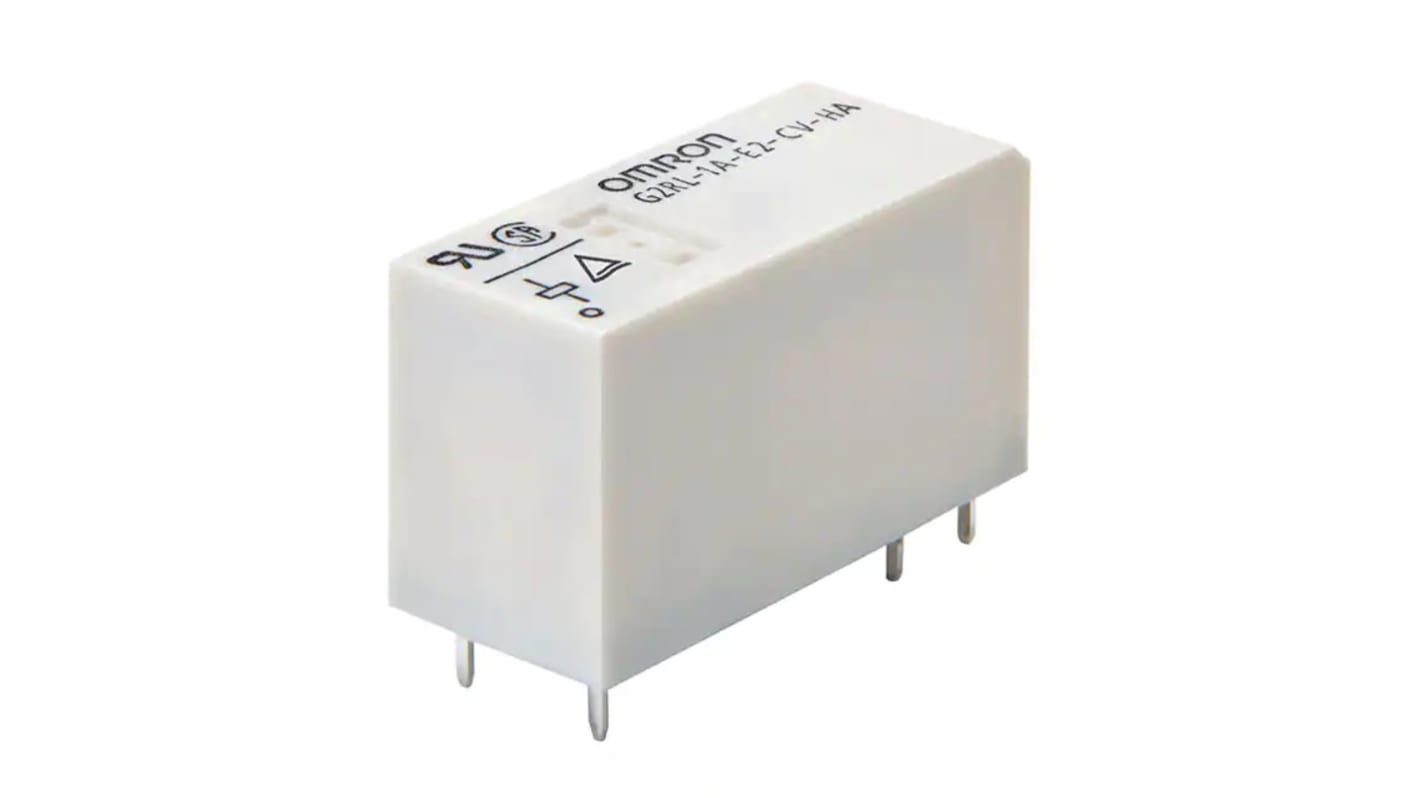

Aratas PCB Relay, 12V dc Coil, 23A Switching Current, SPST
- RS Stock No.:
- 243-6562
- Mfr. Part No.:
- G2RL-1A-E2-CV-HA DC12
- Brand:
- Aratas
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 500 units)*
£1,315.00
(exc. VAT)
£1,580.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 May 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 500 - 500 | £2.63 | £1,315.00 |
| 1000 + | £2.57 | £1,285.00 |
*price indicative
- RS Stock No.:
- 243-6562
- Mfr. Part No.:
- G2RL-1A-E2-CV-HA DC12
- Brand:
- Aratas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Coil Voltage | 12V dc | |
| Product Type | Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G2RL-1A-E2-CV-HA | |
| Terminal Type | Screw | |
| Switching Current | 23A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 60V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Coil Resistance | 360Ω | |
| Length | 50mm | |
| Height | 16.7mm | |
| Coil Power | 400mW | |
| Standards/Approvals | EN60335-1, UL1446 | |
| Width | 10mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Coil Voltage 12V dc | ||
Product Type Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G2RL-1A-E2-CV-HA | ||
Terminal Type Screw | ||
Switching Current 23A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 60V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Coil Resistance 360Ω | ||
Length 50mm | ||
Height 16.7mm | ||
Coil Power 400mW | ||
Standards/Approvals EN60335-1, UL1446 | ||
Width 10mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- MY
The Omron G2RL series is compact power relays used in high current load switching application and high ambient temperature environment. The coil voltage is 12 Vdc, coil resistance is 360 ohms and coil current is 33.3 mA.
Meets ambient operating temperature requirements of 105°C
Silver alloy contact
