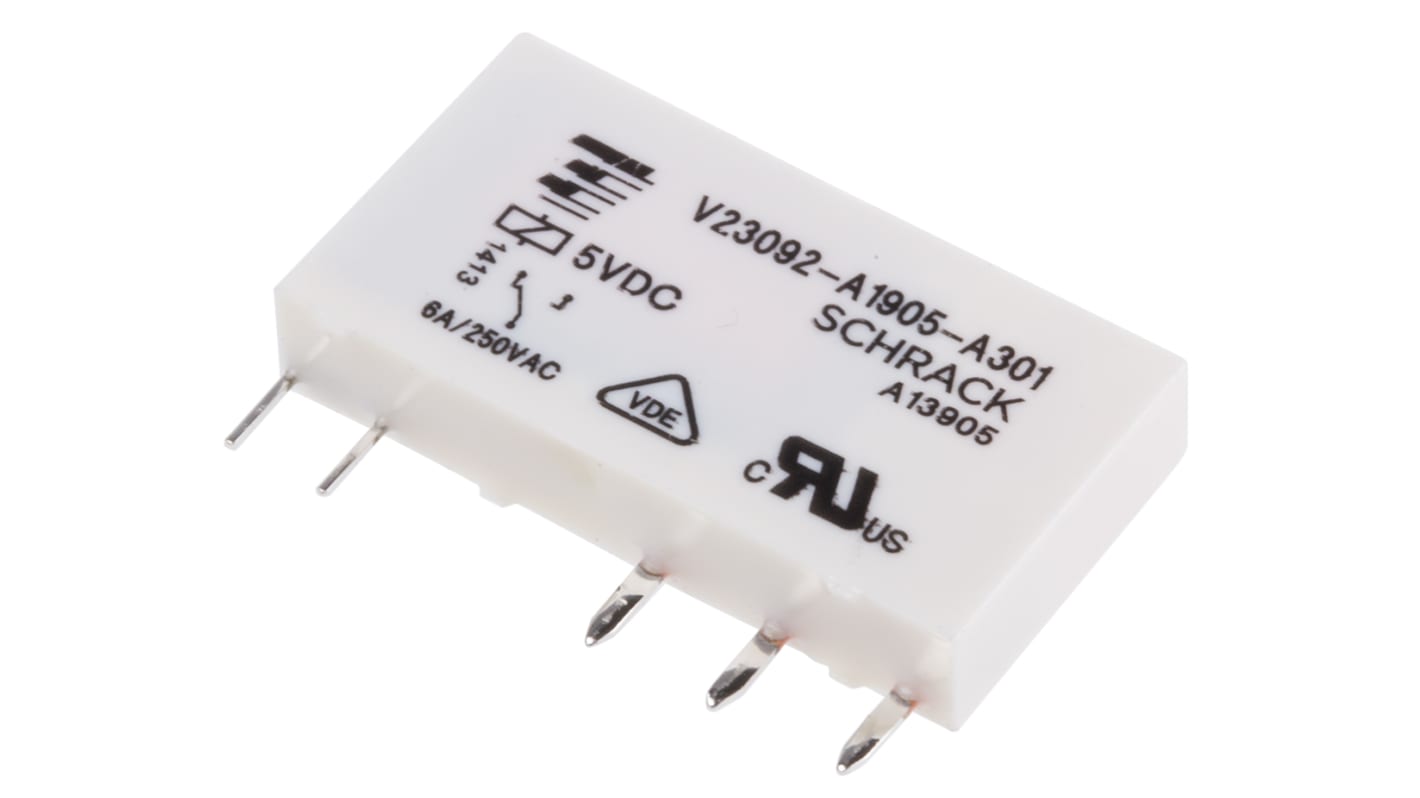

TE Connectivity PCB Mount Power Relay, 5V dc Coil, 6A Switching Current, SPDT

RS Stock No.:: 231-2361
Mfr. Part No.:: V23092A1905A301
Brand:: TE Connectivity

TE Connectivity PCB Mount Power Relay, 5V dc Coil, 6A Switching Current, SPDT

127 In stock - FREE next working day delivery available

12 available from Europe for delivery within 1 working day(s).

Price Each

£7.10

(exc. VAT)

£8.52

(inc. VAT)

Units	Per unit
1 +	£7.10

RS Stock No.:: 231-2361
Mfr. Part No.:: V23092A1905A301
Brand:: TE Connectivity

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CZ

Product Details

SNR Series - Slim Relays

High coil sensitivity: 170mW
Compact design (5mm thickness) for high density PCB mounting
Coil power: 210 mW
Operating temperature range: -40 to +85°C
Creepage and clearance: 8 mm; 6 mm
Isolation coil to contact: 4000Vac
Switching voltage: 250Vac
H 15, W 28, D 5

Approvals

UL, CSA, VDE

Specifications

Attribute	Value
Coil Voltage	5V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	6A
Number of Poles	1
Latching	No
Terminal Type	Through Hole
Length	28mm
Coil Resistance	119Ω
Coil Power	210mW
Series	SNR
Maximum Operating Temperature	+85°C
Isolation Coil To Contact	4kV
Depth	5mm
Height	15mm
Life	10000000 (Electrical) cycles
Contact Material	Silver Alloy
Minimum Operating Temperature	-40°C
Maximum Switching Power AC	1.5 kVA
