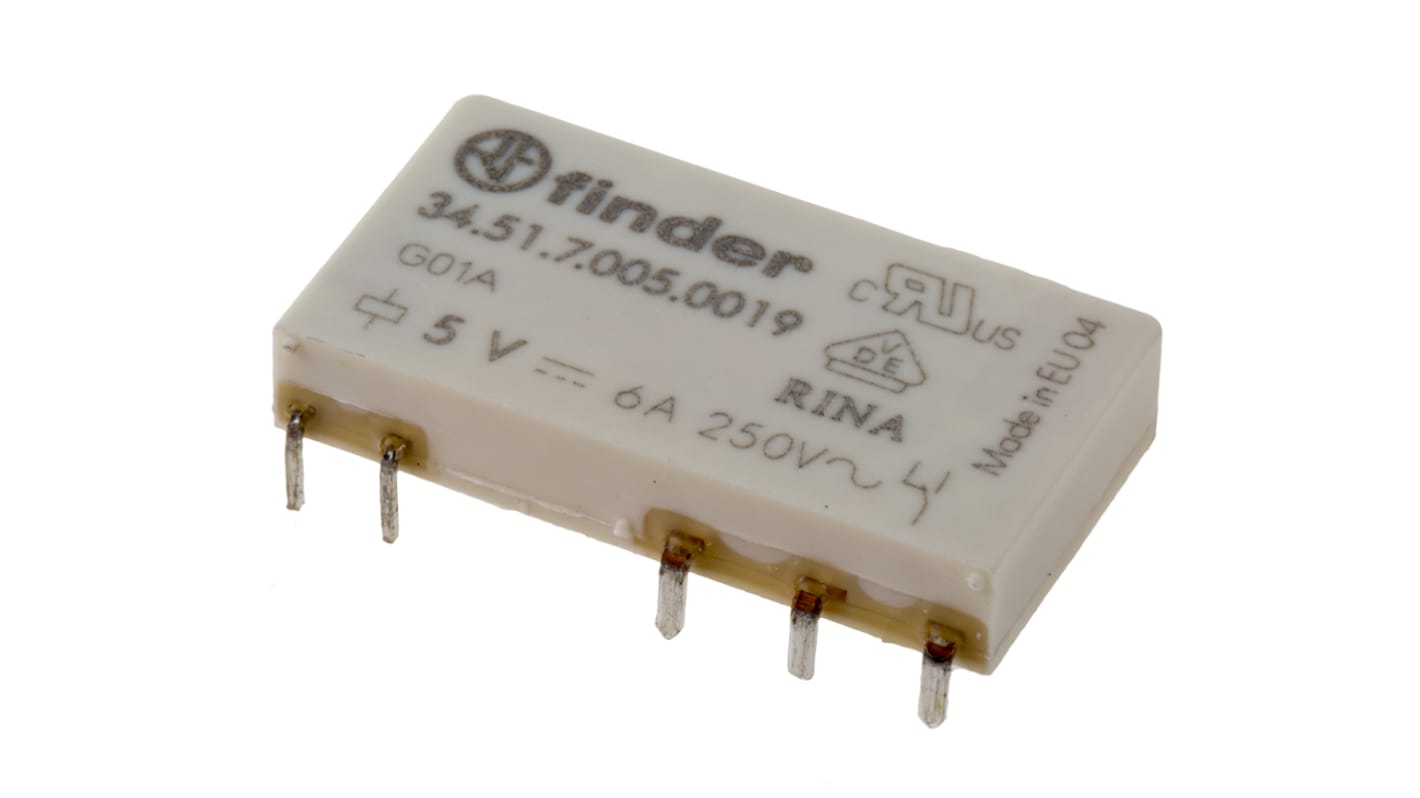

Finder PCB Mount Power Relay, 5V dc Coil, 6A Switching Current, SPDT

RS Stock No.:: 708-3166
Mfr. Part No.:: 34.51.7.005.0019
Brand:: Finder

Finder PCB Mount Power Relay, 5V dc Coil, 6A Switching Current, SPDT

Bulk discount available

Subtotal (1 unit)*

£10.82

(exc. VAT)

£12.98

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

9 unit(s) ready to ship
Plus 6 unit(s) ready to ship from another location
Plus 192 unit(s) shipping from 07 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£10.82
10 - 24	£9.96
25 - 49	£9.51
50 - 99	£9.19
100 +	£8.45

*price indicative

RS Stock No.:: 708-3166
Mfr. Part No.:: 34.51.7.005.0019
Brand:: Finder

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	5V dc
	Contact Configuration	SPDT
	Mounting Type	PCB Mount
	Switching Current	6A
	Number of Poles	1
	Series	34 Series
	Latching	No
	Terminal Type	Through Hole
	Maximum Switching Voltage AC	400V ac
	Maximum Switching Voltage DC	60V dc
	Maximum Switching Current AC	10 A
	Length	28mm
	Coil Resistance	130Ω
	Coil Power	170mW
	Height	15mm
	Standards Met	cURus
	Depth	5mm
	Contact Material	Silver Alloy
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Isolation Coil To Contact	6kV
	Life	10000000 (DC Mechanical) cycles, 60000 (Electrical) cycles
	Maximum Switching Power AC	1.5 kVA
	Number of Coils	Single

	Select all
	Brand Finder
	Coil Voltage 5V dc
	Contact Configuration SPDT
	Mounting Type PCB Mount
	Switching Current 6A
	Number of Poles 1
	Series 34 Series
	Latching No
	Terminal Type Through Hole
	Maximum Switching Voltage AC 400V ac
	Maximum Switching Voltage DC 60V dc
	Maximum Switching Current AC 10 A
	Length 28mm
	Coil Resistance 130Ω
	Coil Power 170mW
	Height 15mm
	Standards Met cURus
	Depth 5mm
	Contact Material Silver Alloy
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Isolation Coil To Contact 6kV
	Life 10000000 (DC Mechanical) cycles, 60000 (Electrical) cycles
	Maximum Switching Power AC 1.5 kVA
	Number of Coils Single

Finder 34 Series Power Relay, 5V DC Coil Voltage, 6A Switching Current - 34.51.7.005.0019

This power relay is a highly efficient PCB mount relay designed for diverse applications in the automation and electrical industries. With a compact size of 28mm in length, 5mm in depth, and 15mm in height, it offers a single pole double throw (SPDT) configuration. Operating at a coil voltage of 5V DC, this switching current relay is rated for 6A, making it suitable for both low- and high-voltage applications.

Features & Benefits

• Low power consumption at 170mW ensures energy efficiency
• High voltage isolation of 6kV enhances safety in operation
• Reliable contact material made from silver alloy for durability
• Designed for through-hole mounting for easy integration
• Excellent mechanical life of up to 10 million cycles
• Maximum switching capacity up to 1.5kVA supports varied loads

Applications

• Ideal for use in bottling and packaging machinery
• Suitable for labelling machines and industrial burners
• Commonly used in lighting and timer controls
• Effective in programmable controllers and electronic circuit boards
• Designed for remote road and tunnel lighting systems

What are the benefits of using a PCB mount relay in my projects?

Utilising a PCB mount relay simplifies circuit design and installation, reduces the need for additional wiring, and enhances reliability in compact electronic assemblies.

Can this relay handle both AC and DC applications?

Yes, it can switch both alternating current (AC) up to 400V and direct current (DC) up to 60V, providing versatility for various applications.

How does the switching current capability influence circuit design?

The 6A switching current allows for efficient control over load devices, reducing the risk of overload and providing a dependable solution for automation tasks.

What limitations should I be aware of with this power relay?

Ensure that the relay is not used beyond its specified maximum switching voltage and current ratings, as exceeding these limits may result in failure or safety hazards.

What temperature range is suitable for optimal performance?

The relay operates effectively within a temperature range of -40°C to +85°C, making it suitable for various environmental conditions.
