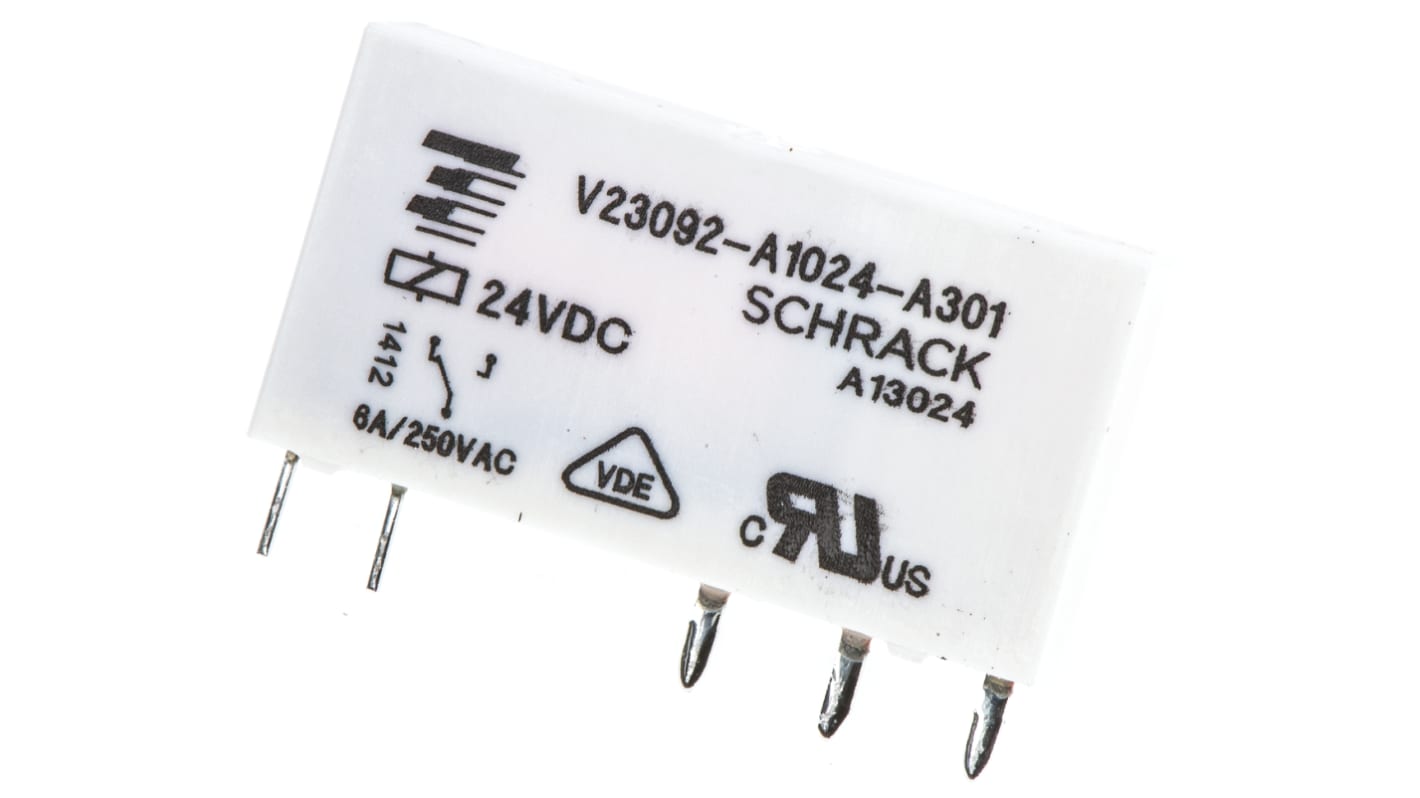

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 135-4699
- Mfr. Part No.:
- V23092A1024A301
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 tube of 20 units)*
£253.72
(exc. VAT)
£304.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 220 unit(s) ready to ship
- Plus 1,380 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 20 - 20 | £12.686 | £253.72 |
| 40 - 80 | £12.052 | £241.04 |
| 100 - 180 | £10.783 | £215.66 |
| 200 - 480 | £9.515 | £190.30 |
| 500 + | £8.246 | £164.92 |
*price indicative
- RS Stock No.:
- 135-4699
- Mfr. Part No.:
- V23092A1024A301
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 6A | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | SNR | |
| Terminal Type | Through Hole | |
| Length | 28mm | |
| Coil Resistance | 3390Ω | |
| Minimum Operating Temperature | -40°C | |
| Height | 15mm | |
| Maximum Operating Temperature | +85°C | |
| Depth | 5mm | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 1.5 kVA | |
| Application | PCB | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Latching No | ||
Series SNR | ||
Terminal Type Through Hole | ||
Length 28mm | ||
Coil Resistance 3390Ω | ||
Minimum Operating Temperature -40°C | ||
Height 15mm | ||
Maximum Operating Temperature +85°C | ||
Depth 5mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 1.5 kVA | ||
Application PCB | ||
- COO (Country of Origin):
- CZ
SNR Series - Slim Relays
High coil sensitivity: 170mW
Compact design (5mm thickness) for high density PCB mounting
Coil power: 210 mW
Operating temperature range: -40 to +85°C
Creepage and clearance: 8 mm; 6 mm
Isolation coil to contact: 4000Vac
Switching voltage: 250Vac
H 15, W 28, D 5
Compact design (5mm thickness) for high density PCB mounting
Coil power: 210 mW
Operating temperature range: -40 to +85°C
Creepage and clearance: 8 mm; 6 mm
Isolation coil to contact: 4000Vac
Switching voltage: 250Vac
H 15, W 28, D 5
Approvals
UL, CSA, VDE
