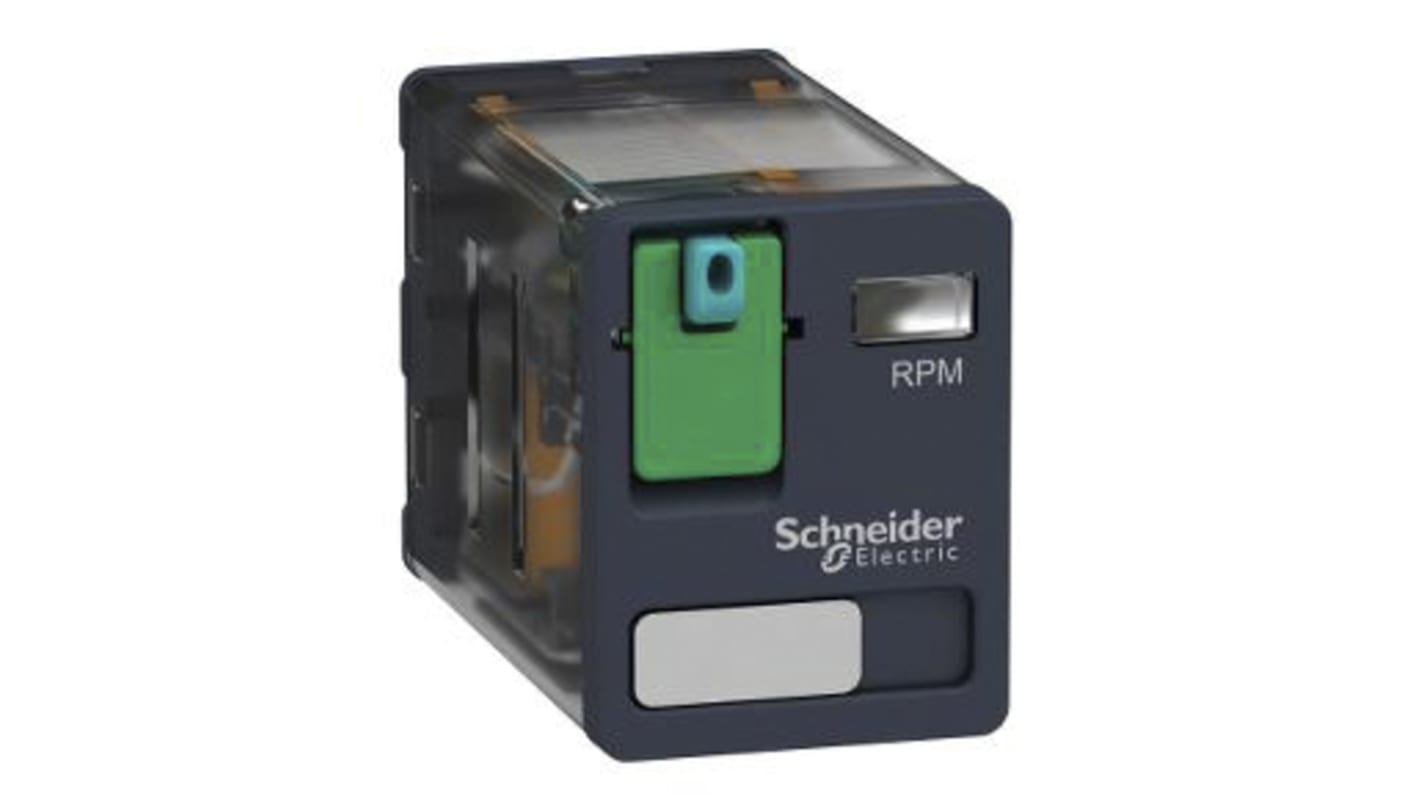

Schneider Electric Power Relay, 24V dc Coil, 15 A @ 250 V ac, 15 A @ 28 V dc Switching Current, DPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£11.46

(exc. VAT)

£13.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 29 unit(s) shipping from 24 October 2025
  • Plus 12 unit(s) shipping from 24 October 2025
  • Plus 30 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£11.46
5 - 9£11.11
10 +£10.66

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
179-7313
Mfr. Part No.:
RPM21BD
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Coil Voltage

24V dc

Contact Configuration

DPDT

Switching Current

15 A @ 250 V ac, 15 A @ 28 V dc

Number of Poles

2

Latching

No

Series

Harmony Relay RP

Maximum Switching Voltage AC

250V ac

Maximum Switching Voltage DC

28V dc

Maximum Switching Current AC

15 A

Maximum Switching Current DC

15 A

Length

31mm

Coil Resistance

640Ω

Coil Power

850mW

Maximum Operating Temperature

+55°C

Contact Material

Silver Alloy

Life

100000 cycles

Depth

47mm

Better World Verification

Green Premium

Height

27mm

Minimum Operating Temperature

-40°C

Better World Product

Yes

Maximum Switching Power AC

3.75 kVA

Application

Power

Schneider Electric RPM21BD


This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0

A complete range of electromechanical relays including interface, miniature, and power relays from 1 CO to 4 CO contacts, up to 30 A.
