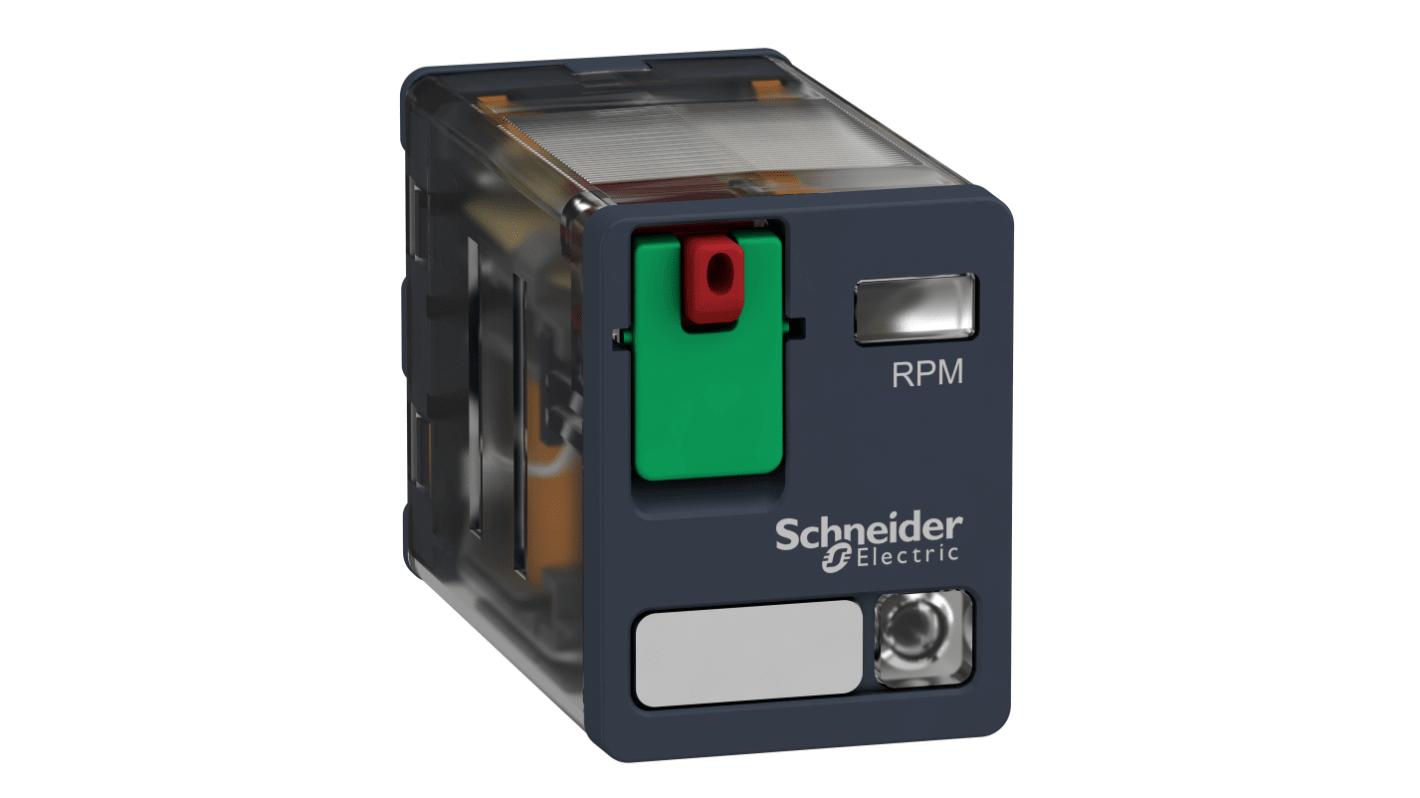

Schneider Electric Panel Power Relay, 24V ac Coil, 15A Switching Current, DPDT
- RS Stock No.:
- 179-9438
- Mfr. Part No.:
- RPM22B7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£16.71
(exc. VAT)
£20.05
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 9 unit(s) shipping from 06 May 2026
- Plus 20 unit(s) shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.71 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 179-9438
- Mfr. Part No.:
- RPM22B7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Relay | |
| Coil Voltage | 24V ac | |
| Contact Configuration | DPDT | |
| Mount Type | Panel | |
| Series | Harmony Relay RP | |
| Terminal Type | Plug-In | |
| Switching Current | 15A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 28V dc | |
| Switching AC Voltage | 28V ac | |
| Maximum Operating Temperature | 55°C | |
| Length | 21mm | |
| Width | 47mm | |
| Standards/Approvals | RoHS | |
| Height | 27mm | |
| Coil Power | 1.1W | |
| Better World Product | Yes | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Relay | ||
Coil Voltage 24V ac | ||
Contact Configuration DPDT | ||
Mount Type Panel | ||
Series Harmony Relay RP | ||
Terminal Type Plug-In | ||
Switching Current 15A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 28V dc | ||
Switching AC Voltage 28V ac | ||
Maximum Operating Temperature 55°C | ||
Length 21mm | ||
Width 47mm | ||
Standards/Approvals RoHS | ||
Height 27mm | ||
Coil Power 1.1W | ||
Better World Product Yes | ||
Contact Material Silver Alloy | ||
Zelio Control Relays monitor and detect abnormal operating conditions about phases, current, voltage, frequency, speed, or temperature
Power Plug-In Relay - Zelio Rpm - 2 C/O - 24 V Ac - 15 A - With Led
