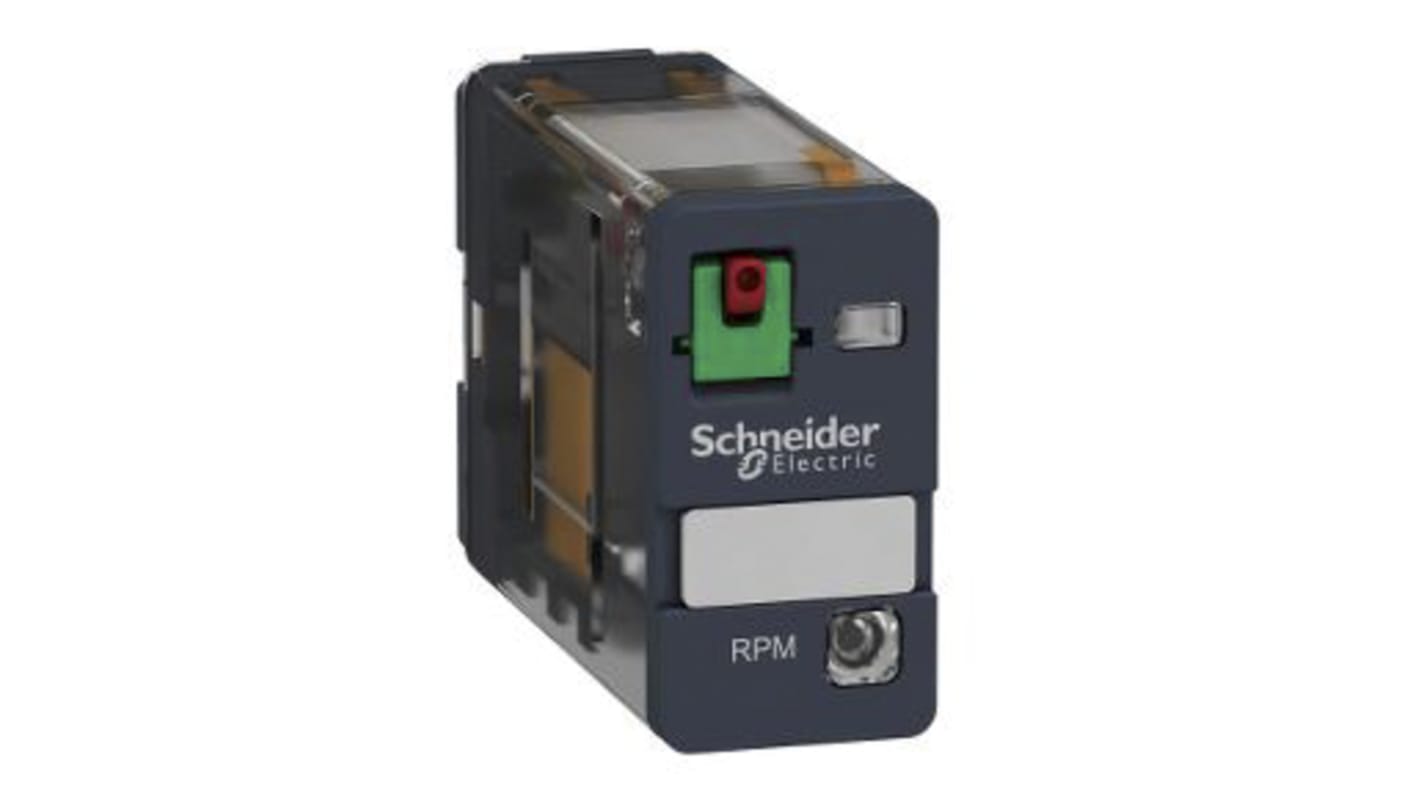

Schneider Electric Power Relay, 24V ac Coil, 15 A @ 250 V ac, 15 A @ 28 V dc Switching Current, SPDT
- RS Stock No.:
- 179-7310
- Mfr. Part No.:
- RPM12B7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£7.69
(exc. VAT)
£9.23
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £7.69 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 179-7310
- Mfr. Part No.:
- RPM12B7
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24V ac | |
| Contact Configuration | SPDT | |
| Switching Current | 15 A @ 250 V ac, 15 A @ 28 V dc | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | Harmony Relay RP | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 28V dc | |
| Maximum Switching Current DC | 15 A | |
| Maximum Switching Current AC | 15 A | |
| Length | 14mm | |
| Coil Resistance | 177Ω | |
| Coil Power | 1.6W | |
| Life | 100000 cycles | |
| Depth | 43mm | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +55°C | |
| Better World Product | Yes | |
| Minimum Operating Temperature | -40°C | |
| Height | 27mm | |
| Better World Verification | Green Premium | |
| Maximum Switching Power AC | 3.75 kVA | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V ac | ||
Contact Configuration SPDT | ||
Switching Current 15 A @ 250 V ac, 15 A @ 28 V dc | ||
Number of Poles 1 | ||
Latching No | ||
Series Harmony Relay RP | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 28V dc | ||
Maximum Switching Current DC 15 A | ||
Maximum Switching Current AC 15 A | ||
Length 14mm | ||
Coil Resistance 177Ω | ||
Coil Power 1.6W | ||
Life 100000 cycles | ||
Depth 43mm | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +55°C | ||
Better World Product Yes | ||
Minimum Operating Temperature -40°C | ||
Height 27mm | ||
Better World Verification Green Premium | ||
Maximum Switching Power AC 3.75 kVA | ||
Application Power | ||
