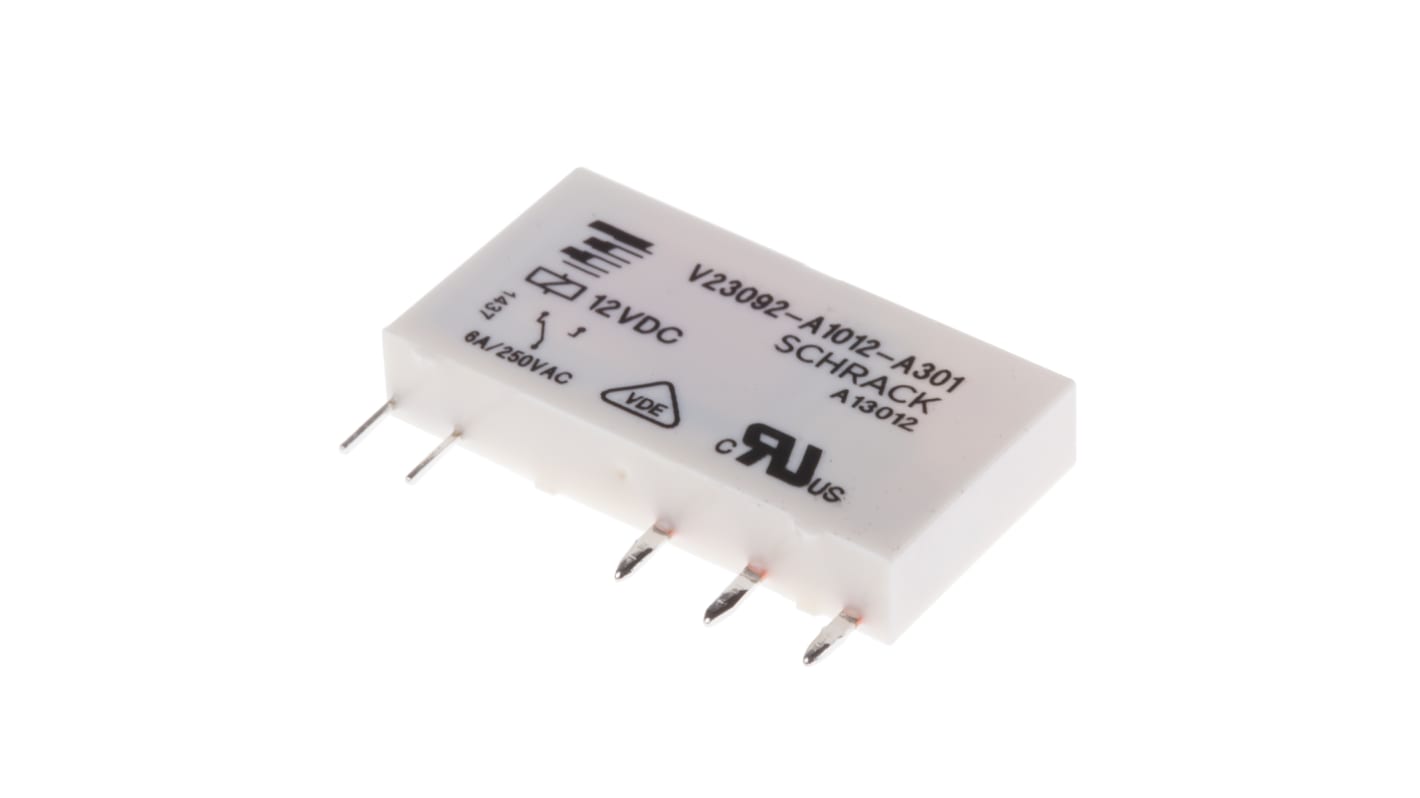

TE Connectivity PCB Power Relay, 12V dc Coil, 6A Switching Current, SPDT

View all Power Relays

Subtotal (1 tube of 20 units)*

£105.28

(exc. VAT)

£126.34

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 260 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
20 +£5.264£105.28

*price indicative

RS Stock No.:
135-4698
Mfr. Part No.:
V23092A1012A301
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Power Relay

Coil Voltage

12V dc

Contact Configuration

SPDT

Mount Type

PCB

Series

SNR

Terminal Type

Solder

Switching Current

6A

Switching Power

1.5kVA

Minimum Operating Temperature

-40°C

Switching AC Voltage

250V ac

Coil Resistance

848Ω

Maximum Operating Temperature

85°C

Coil Power

170mW

Height

15mm

Standards/Approvals

cULus, VDE

Length

28mm

Width

5mm

Contact Material

Silver Alloy

COO (Country of Origin):
CZ

SNR Series - Slim Relays


High Coil sensitivity: 170mW

Compact design (5mm thickness) for high density PCB mounting

Coil power: 210 mW

Operating temperature range: -40 to +85°C

Creepage and clearance: 8 mm; 6 mm

Isolation Coil to contact: 4000Vac

Switching voltage: 250Vac

H 15, W 28, D 5

Approvals

UL, CSA, VDE
