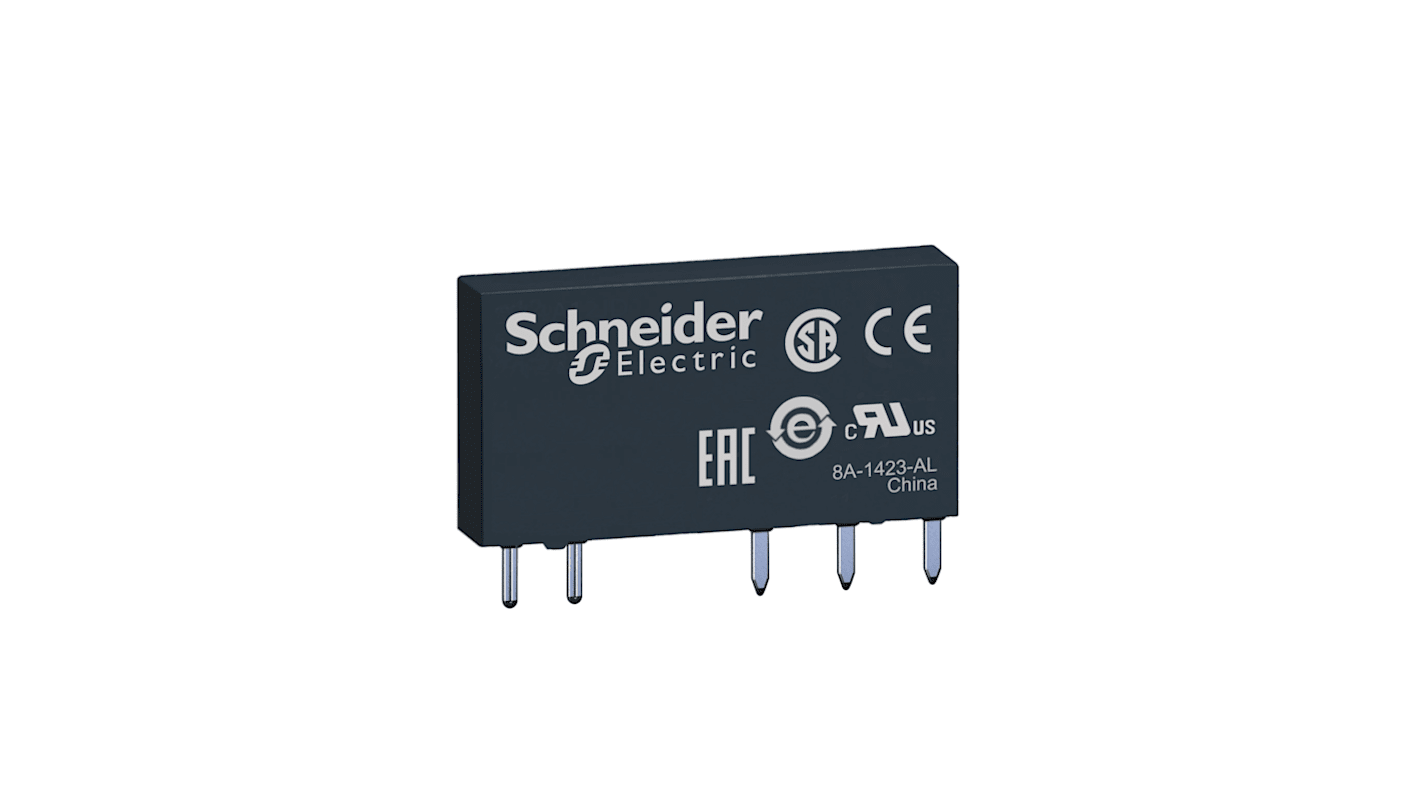

Schneider Electric Power Relay, 12V dc Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 179-7324
- Mfr. Part No.:
- RSL1AB4JD
- Brand:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
£10.32
(exc. VAT)
£12.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 70 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.32 |
5 - 9 | £10.03 |
10 + | £9.59 |
*price indicative
- RS Stock No.:
- 179-7324
- Mfr. Part No.:
- RSL1AB4JD
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Coil Voltage | 12V dc | |
Contact Configuration | SPDT | |
Switching Current | 6A | |
Number of Poles | 1 | |
Latching | No | |
Series | Harmony Relay RSL | |
Maximum Switching Voltage AC | 277V ac | |
Length | 5mm | |
Coil Resistance | 848Ω | |
Coil Power | 170mW | |
Height | 28mm | |
Depth | 15mm | |
Maximum Operating Temperature | +55°C | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver Alloy | |
Life | 60000 cycles | |
Maximum Switching Power AC | 1.5 kVA | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Latching No | ||
Series Harmony Relay RSL | ||
Maximum Switching Voltage AC 277V ac | ||
Length 5mm | ||
Coil Resistance 848Ω | ||
Coil Power 170mW | ||
Height 28mm | ||
Depth 15mm | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Life 60000 cycles | ||
Maximum Switching Power AC 1.5 kVA | ||
Schneider Electric RSL1AB4JD
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). [delete] Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0
A complete range of electromechanical relays including interface, miniature, and power relays from 1 CO to 4 CO contacts.
