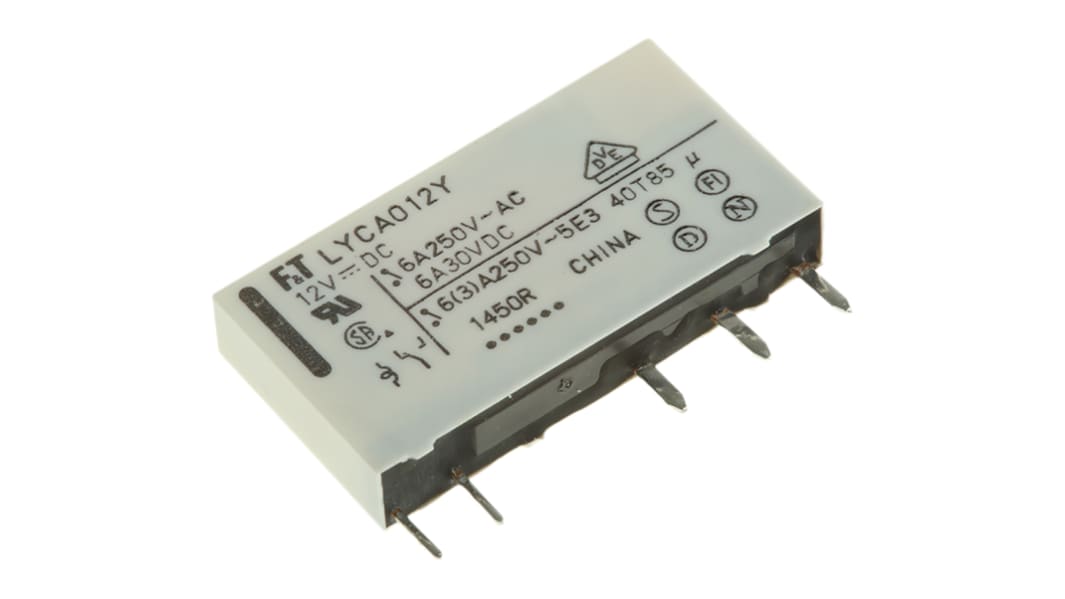

Fujitsu PCB Mount Power Relay, 12V dc Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 790-3347
- Mfr. Part No.:
- FTR-LYCA012Y
- Brand:
- Fujitsu
Bulk discount available
Subtotal (1 unit)**
£3.00
(exc. VAT)
£3.60
(inc. VAT)
126 In stock - FREE next working day delivery available*
13 available from Europe for delivery within 2 working day(s).
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit |
|---|---|
| 1 - 19 | £3.00 |
| 20 - 49 | £2.84 |
| 50 - 99 | £2.70 |
| 100 + | £2.53 |
**price indicative
- RS Stock No.:
- 790-3347
- Mfr. Part No.:
- FTR-LYCA012Y
- Brand:
- Fujitsu
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fujitsu | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 6A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V ac | |
| Length | 28mm | |
| Coil Resistance | 847Ω | |
| Coil Power | 170mW | |
| Life | 50 x 10³ Operations | |
| Contact Material | Silver Alloy | |
| Minimum Operating Temperature | -40°C | |
| Isolation Coil To Contact | 6kV | |
| Maximum Operating Temperature | +85°C | |
| Depth | 5mm | |
| Height | 15mm | |
| Maximum Switching Power DC | 144 W | |
| Maximum Switching Power AC | 1.5 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Fujitsu | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V ac | ||
Length 28mm | ||
Coil Resistance 847Ω | ||
Coil Power 170mW | ||
Life 50 x 10³ Operations | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +85°C | ||
Depth 5mm | ||
Height 15mm | ||
Maximum Switching Power DC 144 W | ||
Maximum Switching Power AC 1.5 kVA | ||
Application Power | ||
