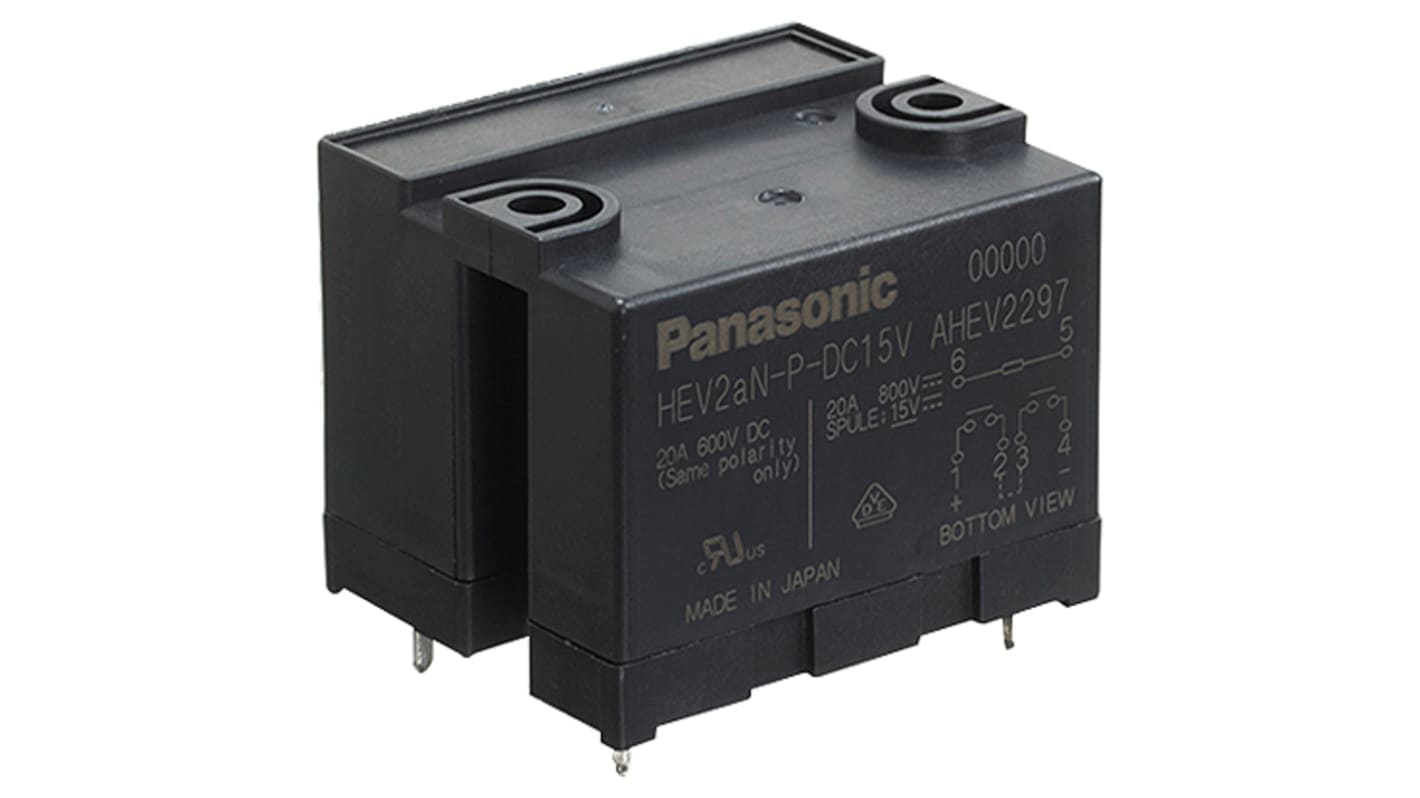

Panasonic PCB Mount Power Relay, 24V dc Coil, 20A Switching Current, DPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£76.35

(exc. VAT)

£91.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
  • Plus 20 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£76.35
5 - 9£72.54
10 - 24£68.95
25 +£65.51

*price indicative

RS Stock No.:
134-7922
Mfr. Part No.:
HEV2aNP24v
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Coil Voltage

24V dc

Contact Configuration

DPST

Mounting Type

PCB Mount

Switching Current

20A

Number of Poles

2

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage DC

1000V dc

Length

50mm

Coil Resistance

300Ω

Coil Power

1.92W

Height

39.4mm

Minimum Operating Temperature

-40°C

Standards Met

cULus, VDE

Contact Material

Silver Alloy

Isolation Coil To Contact

5kVrms

Maximum Operating Temperature

+85°C

Life

Minimum of 1000000 (Mechanical) operations

Depth

41mm

Application

Battery Charge & Discharge Systems, DC Load Controls, Inverter Control, Photovoltaic Power Generation Systems

COO (Country of Origin):
JP

HEV Series - PCB Relays


Panasonic PCB Relays

Features and Benefits


• Compact Size
• Contact arrangement: 2 Form A
• Contributes to energy saving in devices due to reduced coil hold voltage

Typical Applications


• Photovoltaic power generation systems
• Battery charge and discharge systems
• Inverter control, DC load control
