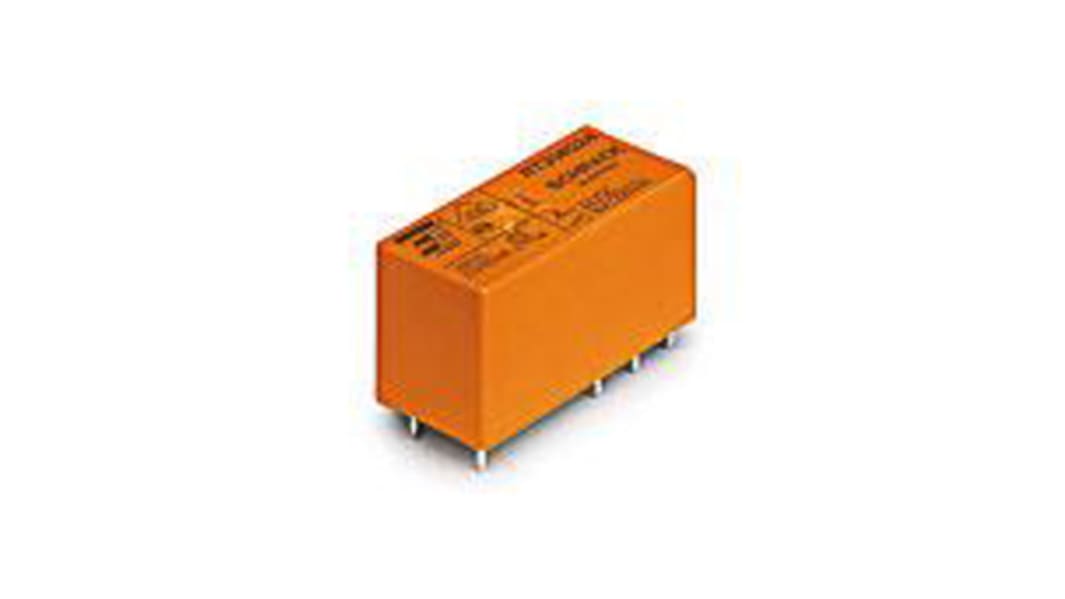

TE Connectivity PCB Mount Latching Power Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 124-4467
- Mfr. Part No.:
- 1415898-2
- Brand:
- TE Connectivity
Subtotal (1 unit)**
£9.43
(exc. VAT)
£11.32
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit |
|---|---|
| 1 + | £9.43 |
**price indicative
- RS Stock No.:
- 124-4467
- Mfr. Part No.:
- 1415898-2
- Brand:
- TE Connectivity
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Latching | Yes | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V | |
| Length | 29mm | |
| Coil Resistance | 360Ω | |
| Coil Power | 400mW | |
| Depth | 12.7mm | |
| Maximum Operating Temperature | +85°C | |
| Life | >3000000 (Mechanical) operations | |
| Isolation Coil To Contact | 5kVrms | |
| Minimum Operating Temperature | -10°C | |
| Height | 15.7mm | |
| Contact Material | Silver Alloy, Tungsten | |
| Standards Met | cCSAus 1142018, IEC 60335-1, UL 508/NEMA 410, UL E214025, VDE Cert. No. 40007571 | |
| Dimensions | 29 x 12.7 x 15.7mm | |
| Application | Filament & Incandescent Lamp Loads, Intelligent Wall Sockets, Led Lighting Systems, Light Sensors, Motors, Movement Detectors | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching Yes | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V | ||
Length 29mm | ||
Coil Resistance 360Ω | ||
Coil Power 400mW | ||
Depth 12.7mm | ||
Maximum Operating Temperature +85°C | ||
Life >3000000 (Mechanical) operations | ||
Isolation Coil To Contact 5kVrms | ||
Minimum Operating Temperature -10°C | ||
Height 15.7mm | ||
Contact Material Silver Alloy, Tungsten | ||
Standards Met cCSAus 1142018, IEC 60335-1, UL 508/NEMA 410, UL E214025, VDE Cert. No. 40007571 | ||
Dimensions 29 x 12.7 x 15.7mm | ||
Application Filament & Incandescent Lamp Loads, Intelligent Wall Sockets, Led Lighting Systems, Light Sensors, Motors, Movement Detectors | ||
