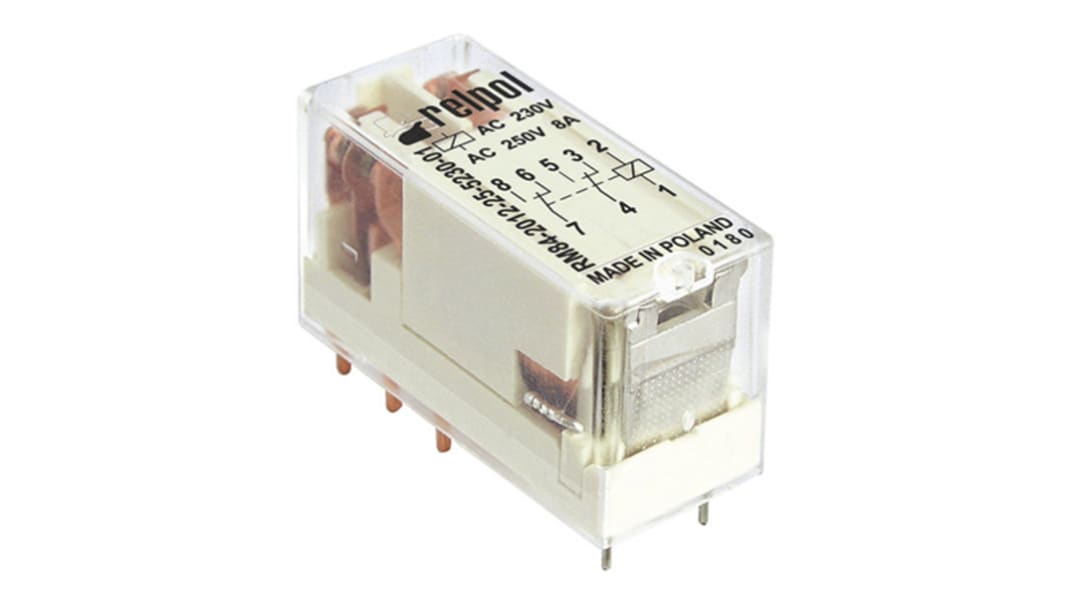

Relpol PCB Mount Power Relay, 230V ac Coil, 8A Switching Current, DPDT

RS Stock No.:: 123-2084
Mfr. Part No.:: RM84-2012-35-5230
Brand:: Relpol

Relpol PCB Mount Power Relay, 230V ac Coil, 8A Switching Current, DPDT

703 In stock - FREE next working day delivery available

12 available from Europe for delivery within 1 working day(s).

Added

Price Each

£10.30

(exc. VAT)

£12.36

(inc. VAT)

Units	Per unit
1 +	£10.30

RS Stock No.:: 123-2084
Mfr. Part No.:: RM84-2012-35-5230
Brand:: Relpol

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: PL

Product Details

Relpol RM84 Series Miniature Relays

Relpol RM84 series miniature industrial relays for general purpose applications. All relays are designed for PCB mounting or in plug-in sockets.

Miniature dimensions
Cadmium-free contacts
AC and DC coils
RoHS compliant

Specifications

Attribute	Value
Coil Voltage	230V ac
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	8A
Number of Poles	2
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	440V
Maximum Switching Voltage DC	24V dc
Length	29mm
Coil Resistance	38500Ω
Coil Power	750mW
Depth	12.7mm
Isolation Coil To Contact	5kV ac
Standards Met	CSA, cULus, EAC, PN-EN 60335-1, VDE
Minimum Operating Temperature	-40°C
Series	RM84
Height	15.7mm
Maximum Operating Temperature	+70°C
Life	>100000 (Electrical) cycles, >30000000 (Mechanical) cycles
Contact Material	Silver Alloy
Maximum Switching Power AC	2 kVA

RS Stock No.:: 123-2084
Mfr. Part No.:: RM84-2012-35-5230
Brand:: Relpol

Datasheet

Relpol PCB Mount Power Relay, 230V ac Coil, 8A Switching Current, DPDT

Technical Reference

Legislation and Compliance

Product Details

Relpol RM84 Series Miniature Relays

Specifications

Relpol RM84 Series Miniature Relays
