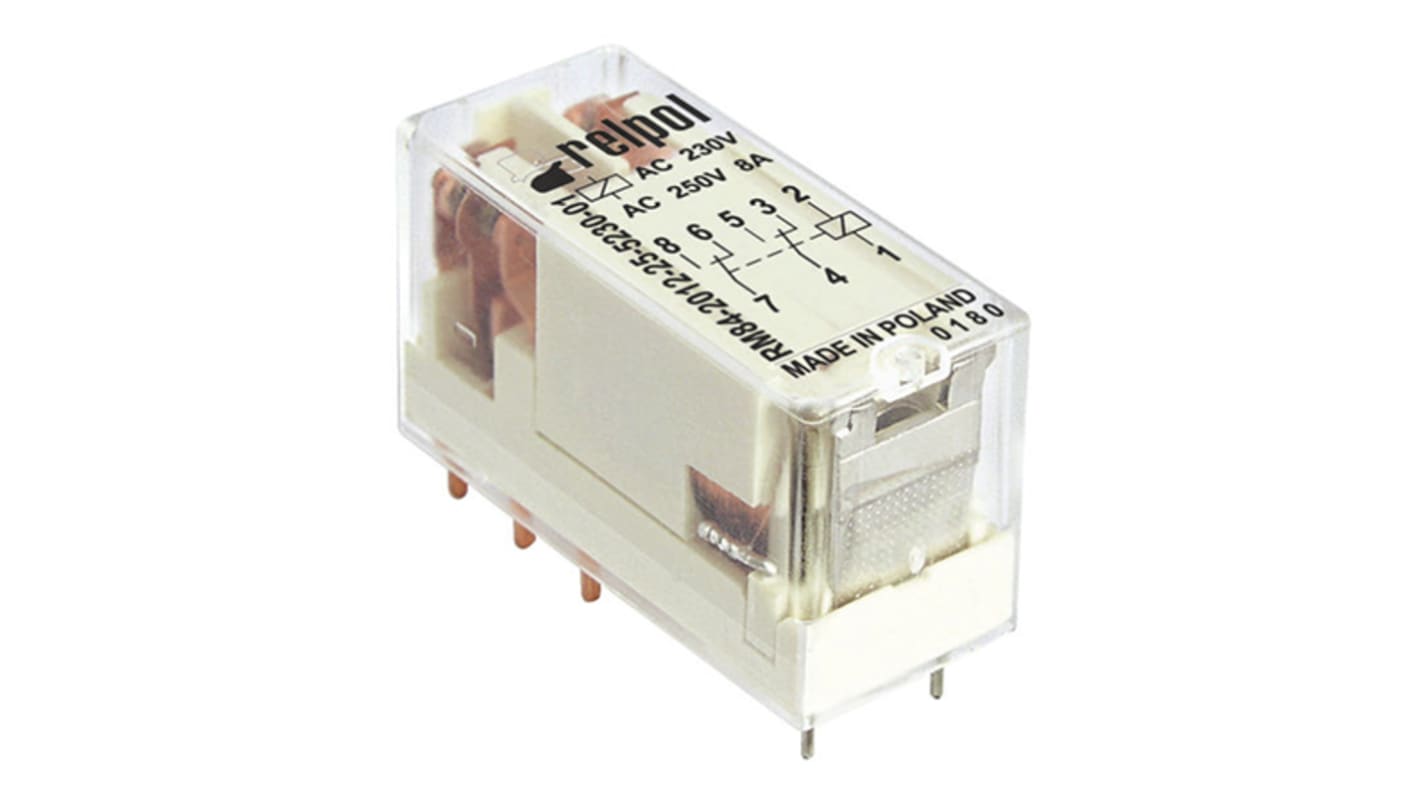

Relpol PCB Mount Power Relay, 12V ac Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 123-2081
- Mfr. Part No.:
- RM84-2012-35-5012
- Brand:
- Relpol
Subtotal (1 unit)*
£6.47
(exc. VAT)
£7.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 39 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.47 |
*price indicative
- RS Stock No.:
- 123-2081
- Mfr. Part No.:
- RM84-2012-35-5012
- Brand:
- Relpol
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Relpol | |
| Coil Voltage | 12V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 440V | |
| Maximum Switching Voltage DC | 24V dc | |
| Length | 29mm | |
| Coil Resistance | 100Ω | |
| Coil Power | 750mW | |
| Series | RM84 | |
| Depth | 12.7mm | |
| Life | >100000 (Electrical) cycles, >30000000 (Mechanical) cycles | |
| Standards Met | CSA, cULus, EAC, PN-EN 60335-1, VDE | |
| Isolation Coil To Contact | 5kV ac | |
| Maximum Operating Temperature | +70°C | |
| Height | 15.7mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 2 kVA | |
Select all | ||
|---|---|---|
Brand Relpol | ||
Coil Voltage 12V ac | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 440V | ||
Maximum Switching Voltage DC 24V dc | ||
Length 29mm | ||
Coil Resistance 100Ω | ||
Coil Power 750mW | ||
Series RM84 | ||
Depth 12.7mm | ||
Life >100000 (Electrical) cycles, >30000000 (Mechanical) cycles | ||
Standards Met CSA, cULus, EAC, PN-EN 60335-1, VDE | ||
Isolation Coil To Contact 5kV ac | ||
Maximum Operating Temperature +70°C | ||
Height 15.7mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 2 kVA | ||
