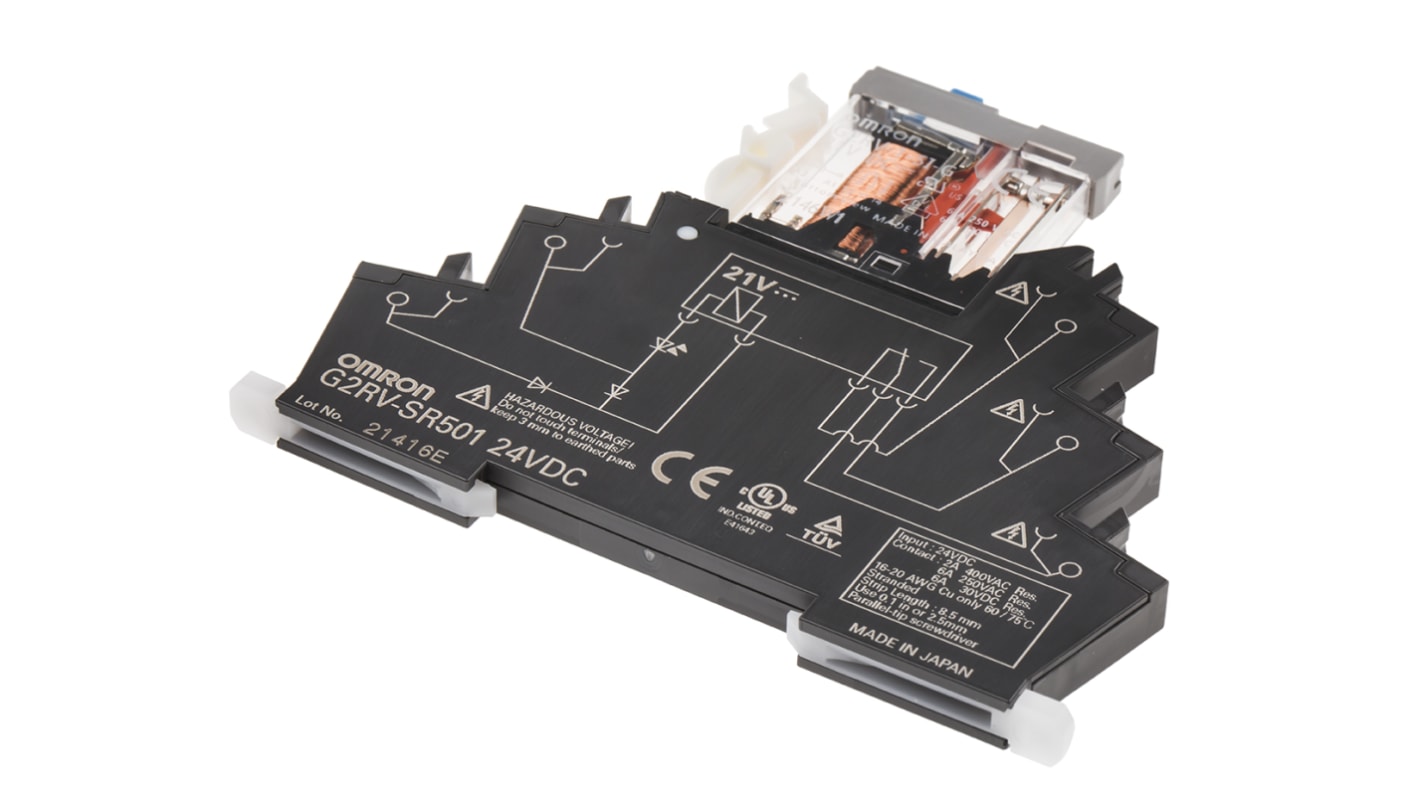

Omron DIN Rail Power Relay, 24V dc Coil, 6A Switching Current, SPDT

View all Power Relays
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Omron G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 6A Load
RS Stock No.
271-1849

Each

£13.26

(exc. VAT)

£15.91

(inc. VAT)

RS Stock No.:
111-3046
Mfr. Part No.:
G2RV-SR501 DC24
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Switching Current

6A

Number of Poles

1

Latching

No

Terminal Type

Push In

Maximum Switching Voltage AC

440V ac

Maximum Switching Voltage DC

125V dc

Maximum Switching Current DC

6 A

Maximum Switching Current AC

6 A

Length

6.2mm

Coil Resistance

100 mΩ

Coil Power

300mW

Height

90mm

Maximum Operating Temperature

+55°C

Depth

81mm

Minimum Operating Temperature

-40°C

Isolation Coil To Contact

4kV ac

Standards Met

CE, CULus, TUV Certification, UL 508 File No. E41643

Contact Material

Silver Alloy

Life

50000 (Electrical-NC) operations, 5000000 (Mechanical) operations, 70000 (Electrical-NO) operations

Series

G2RV

Maximum Switching Power AC

1.5 kVA

Maximum Switching Power DC

180 W

Dimensions

6.2 x 81 x 90mm

G2RV-SR Slim I/O Relays With Low Profile Socket


Omron G2RV-SR slim I/O relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G2RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

Slim design
LED operating status
Push-In Plus terminal blocks

OMRON Power Relay, 300mW Coil Power, SPDT Contact Configuration - G2RV Series - G2RV-SR501 DC24


Controlling large circuits is a breeze with this OMRON power relay. By supplying it with 24V DC, you can make or break a connected circuit with a voltage rating of up to 440V AC, like a motor or outdoor lighting system. As it only draws 13.5mA, this is an efficient pick that doesn't guzzle electricity. Tipping the scales at just 30g, it's a lightweight contender that doesn't put strain on your DIN rail.

Features & Benefits


• Dielectric strength of up to 4,000V AC for protection against electrical surges
• Withstands temperatures of -40°C to +55°C without freezing or condensation, so it's suitable for harsh work areas
• Built-in LED indicator allows for easy status monitoring
• Controls DC voltages of up to 125V, so it's a versatile piece of kit

Applications


• Automotive industry
• Telecommunications sector
• Commercial buildings

How reliable is this power relay?


This product is designed to operate at least 5 million times, so you can rest assured it's highly reliable.

Can this unit cope with heavy use?


Yes, it handles up to 18,000 mechanical operations every hour, so it holds its own in fast-paced applications.
