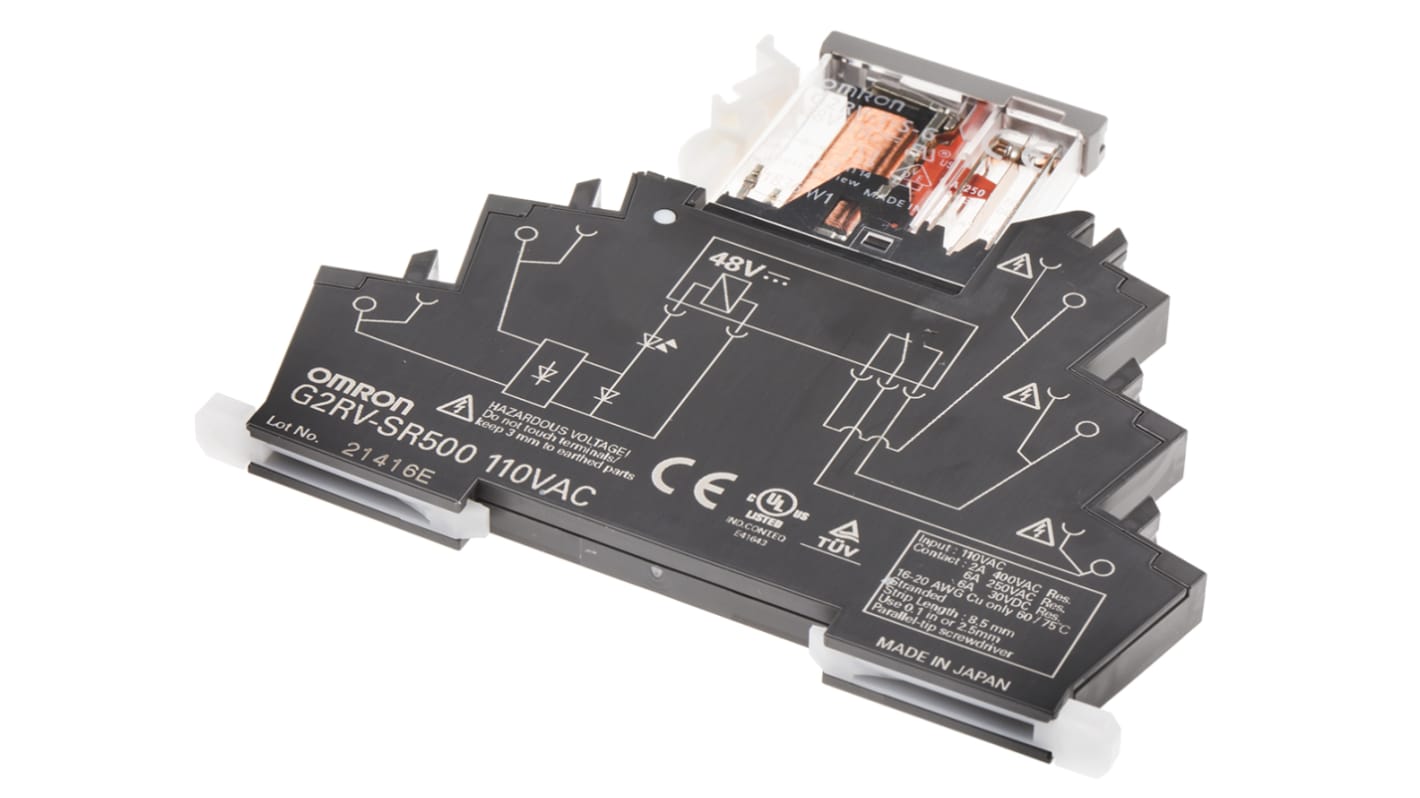

Omron DIN Rail Power Relay, 110V ac Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 111-3044
- Mfr. Part No.:
- G2RV-SR500 AC110
- Brand:
- Omron
Subtotal (1 unit)*
£15.93
(exc. VAT)
£19.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 21 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.93 |
*price indicative
- RS Stock No.:
- 111-3044
- Mfr. Part No.:
- G2RV-SR500 AC110
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 110V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Switching Current | 6A | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | G2RV | |
| Terminal Type | Push In | |
| Maximum Switching Voltage AC | 440V ac | |
| Maximum Switching Voltage DC | 125V dc | |
| Length | 6.2mm | |
| Coil Power | 800mW | |
| Height | 90mm | |
| Life | 50000 (Electrical-NC) operations, 5000000 (Mechanical) operations, 70000 (Electrical-NO) operations | |
| Depth | 78mm | |
| Isolation Coil To Contact | 4kV ac | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CE, CULus, TUV Certification, UL 508 File No. E41643 | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power DC | 180 W | |
| Maximum Switching Power AC | 1.5 kVA | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 110V ac | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Latching No | ||
Series G2RV | ||
Terminal Type Push In | ||
Maximum Switching Voltage AC 440V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 6.2mm | ||
Coil Power 800mW | ||
Height 90mm | ||
Life 50000 (Electrical-NC) operations, 5000000 (Mechanical) operations, 70000 (Electrical-NO) operations | ||
Depth 78mm | ||
Isolation Coil To Contact 4kV ac | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, CULus, TUV Certification, UL 508 File No. E41643 | ||
Contact Material Silver Alloy | ||
Maximum Switching Power DC 180 W | ||
Maximum Switching Power AC 1.5 kVA | ||
G2RV-SR Slim I/O Relays With Low Profile Socket
Omron G2RV-SR slim I/O relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G2RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.
Slim design
LED operating status
Push-In Plus terminal blocks
LED operating status
Push-In Plus terminal blocks
When 1113044 is no longer for sale, please see RS article 2711836 for the updated version in the new range of relays from Omron.
Note
This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
