Omron DIN Rail Power Relay, 48V dc Coil, 6A Switching Current, SPDT

View all Power Relays
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Omron G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 110V ac Coil, SPDT, 1-Pole, 6A Load
RS Stock No.
271-1850

Each

£16.14

(exc. VAT)

£19.37

(inc. VAT)

RS Stock No.:
111-3054
Mfr. Part No.:
G2RV-SR700 AC110
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

48V dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Switching Current

6A

Number of Poles

1

Latching

No

Terminal Type

Screw

Maximum Switching Voltage AC

440V ac

Maximum Switching Voltage DC

125V dc

Length

6.2mm

Coil Power

800mW

Depth

78mm

Series

G2RV

Height

90mm

Maximum Operating Temperature

+55°C

Minimum Operating Temperature

-40°C

Life

50000 (Electrical-NC) operations, 5000000 (Mechanical) operations, 70000 (Electrical-NO) operations

Isolation Coil To Contact

4kV ac

Contact Material

Silver Alloy

Standards Met

CE, CULus, TUV Certification, UL 508 File No. E41643

Maximum Switching Power AC

1.5 kVA

Maximum Switching Power DC

180 W

Dimensions

90 x 78 x 6.2mm

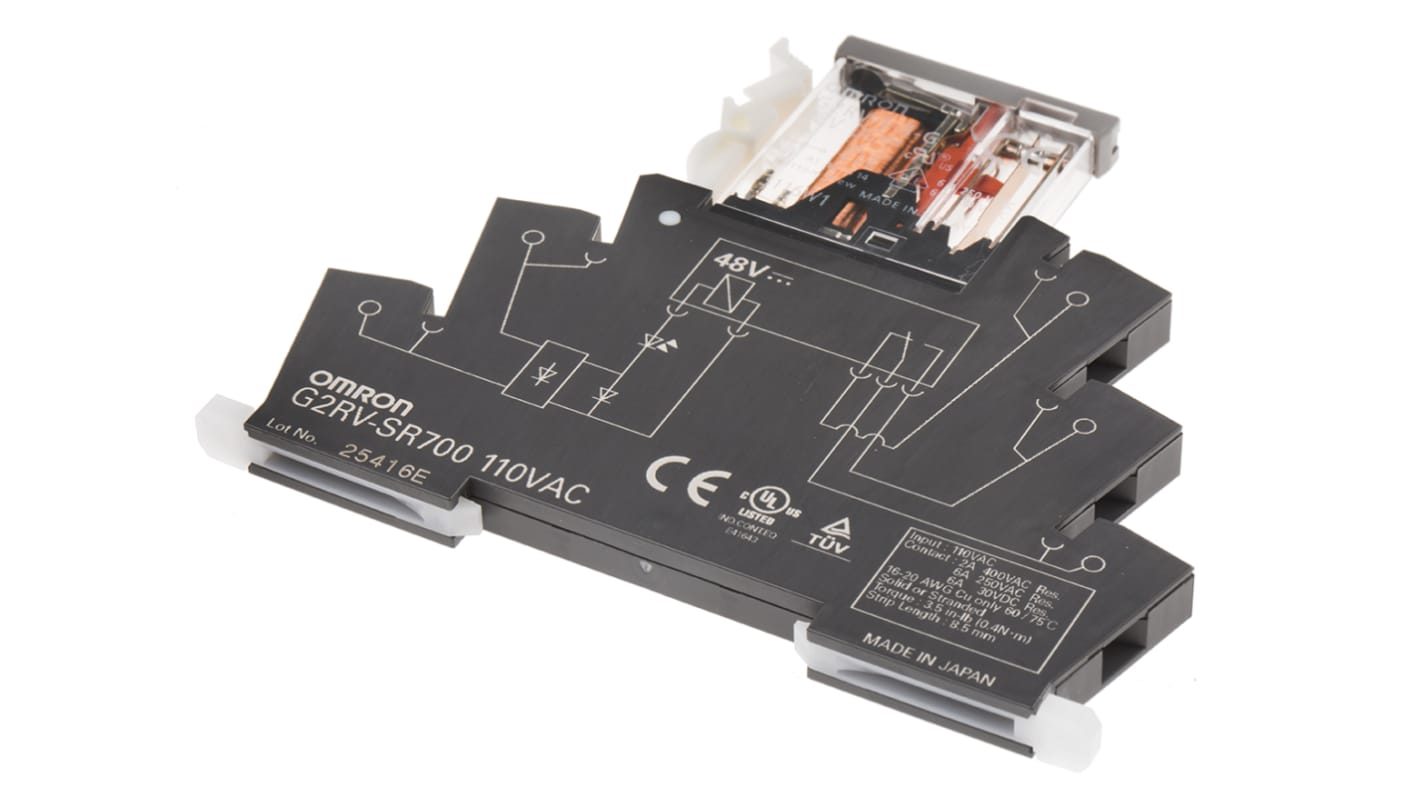

Omron G2RV Power Relay, Screw Terminal, 90X78X6.2mm - G2RV-SR700 AC110


This is a slim I/O relay from the G2RV-SR series. It features an operating indicator LED and a mechanical indicator. With a rated output of 30 VDC 6 A and 250 VAC 6 A, this relay offers a single-pole double-throw (SPDT) output configuration. The coil operates at 110 VAC with a frequency of 50 Hz (5.9 mA) or 60 Hz (5.9 mA). Its compact design, measuring 6 mm wide, makes it ideal for space-constrained control panels. The G2RV-SR700 AC110 ensures reliable switching performance for various applications

Features & Benefits


• Slim design ideal for compact panels and equipment, enabling space-saving solutions
• Ag alloy contact material enhances contact reliability and longevity
• Wide voltage range (110 VAC) suitable for various power supply conditions
• Insulation resistance (1000 MΩ min.) ensures electrical safety
• Vibration and shock resistance withstands harsh environments
• DIN track mounting for easy installation and compatibility with standard mounting systems

Applications


• Control panels
• Industrial machinery
• Automation systems
• HVAC systems

What is the operating voltage range for the G2RV-SR700 AC110?


The coil operates at 110 VAC (50 Hz or 60 Hz).

Can it handle inductive loads?


Yes, it can handle inductive loads up to 2.5 A at 250 VAC.

Is the G2RV-SR700 AC110 suitable for use in harsh environments?


Yes, it has vibration and shock resistance, making it suitable for industrial settings.
