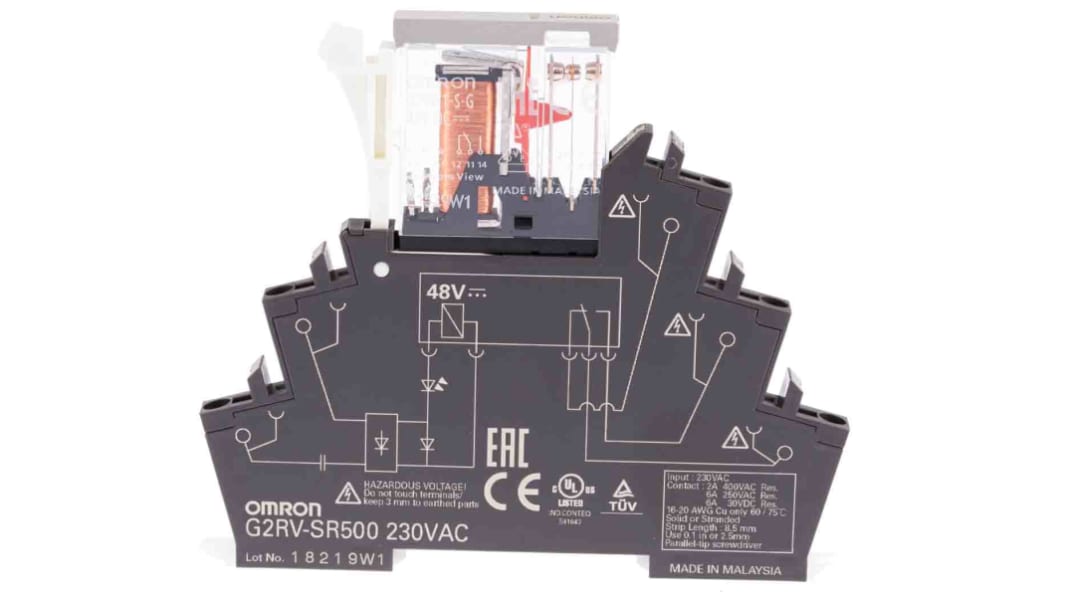

Omron DIN Rail Power Relay, 230V ac Coil, 6A Switching Current, SPDT

RS Stock No.:: 111-3045
Mfr. Part No.:: G2RV-SR500 AC230
Brand:: Omron

Omron DIN Rail Power Relay, 230V ac Coil, 6A Switching Current, SPDT

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO LCIS Series Interface Relay, DIN Rail, 230V ac/dc Coil, SPDT

RS Stock No.: 888-6912

Each (In a Pack of 5)

£13.116

(exc. VAT)

£15.739

(inc. VAT)

RS Stock No.:: 111-3045
Mfr. Part No.:: G2RV-SR500 AC230
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	230V ac
	Product Type	Power Relay
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	G2RV
	Terminal Type	Plug-In
	Switching Current	6A
	Minimum Operating Temperature	-40°C
	Switching Power	180W
	Switching DC Voltage	125V dc
	Switching AC Voltage	125V ac
	Maximum Operating Temperature	55°C
	Width	78mm
	Length	6.2mm
	Coil Power	1.7W
	Standards/Approvals	UL, CE
	Height	90mm
	Contact Material	Silver Alloy
	Contact Resistance	100mΩ

	Select all
	Brand Omron
	Coil Voltage 230V ac
	Product Type Power Relay
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series G2RV
	Terminal Type Plug-In
	Switching Current 6A
	Minimum Operating Temperature -40°C
	Switching Power 180W
	Switching DC Voltage 125V dc
	Switching AC Voltage 125V ac
	Maximum Operating Temperature 55°C
	Width 78mm
	Length 6.2mm
	Coil Power 1.7W
	Standards/Approvals UL, CE
	Height 90mm
	Contact Material Silver Alloy
	Contact Resistance 100mΩ

G2RV Datasheet

COO (Country of Origin):: MY

Omron G2RV Series Power Relay, SPDT Contact Configuration, 230V AC Coil Voltage - G2RV-SR500 AC230

This power relay is a vital component in various automation and electrical applications, ensuring effective control of electrical circuits. It operates efficiently in both AC and DC environments, handling high voltage conditions while prioritising reliability for professionals in the electrical and mechanical sectors.

Features & Benefits

• Operates at a coil voltage of 230V AC, suitable for diverse applications

• SPDT configuration allows for flexible wiring options

• Push-in terminal design simplifies installation and maintenance

• Supports a maximum switching power of 1.5kVA for reliable performance

• Utilises silver alloy contacts for enhanced conductivity

• High life expectancy of up to 500,000 mechanical operations

Applications

• Used for automation control in industrial machinery

• Suitable for electrical switching tasks in control panels

• Employed in process control systems to manage relays

• Utilised in various electronic devices that require reliable switching

What are the temperature limits for operation?

The relay operates effectively within a temperature range of -40°C to +55°C, ensuring functionality in various environments.

How does this device connect within a circuit?

It features a push-in terminal connection, simplifying the securing and releasing of wires without specialised tools.

Can it be used with DC voltages?

Yes, it supports a maximum switching voltage of 125V DC, suitable for various applications.
