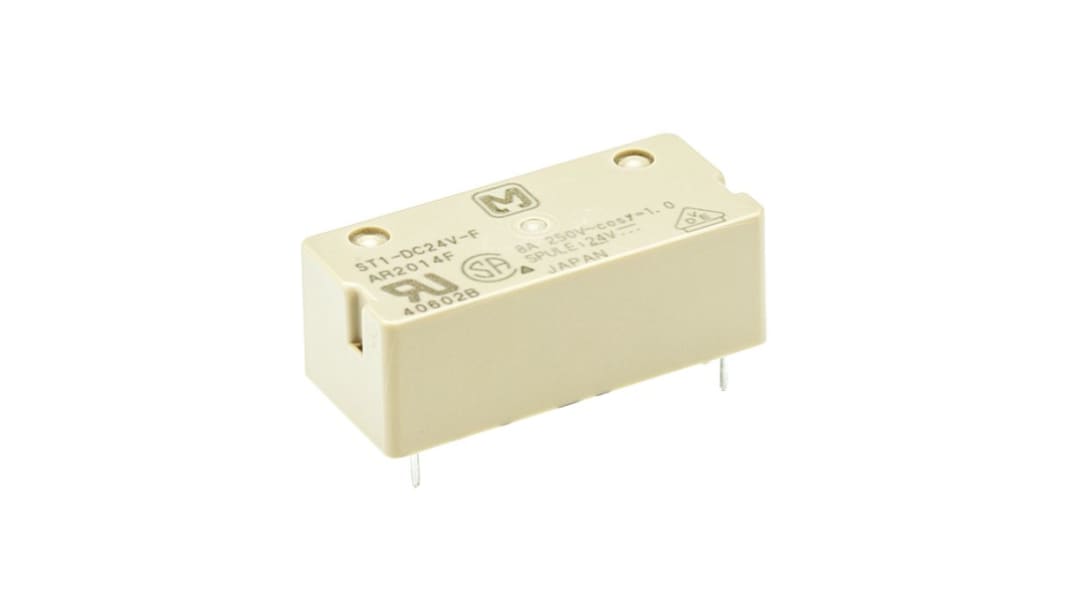

Panasonic DPST Non-Latching Relay PCB Mount, 24V dc Coil, 8 A
- RS Stock No.:
- 535-931
- Mfr. Part No.:
- ST1-DC24V-F
- Brand:
- Panasonic
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£8.30
(exc. VAT)
£9.96
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £8.30 |
| 25 - 49 | £8.07 |
| 50 - 99 | £7.85 |
| 100 - 249 | £7.64 |
| 250 + | £7.45 |
- RS Stock No.:
- 535-931
- Mfr. Part No.:
- ST1-DC24V-F
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
ST Series Relay
These PCB mount power relays are IC drivable and are suitable for inductive load switching. These PCB power relays also offer a high switching capability, high breakdown voltage amd improved stability. The sealed design enables automatic cleaning.
High breakdown voltage
High switching capability, can be used for Inductive lamp load switching
Small form factor, sensitive enough for direct IC-driving
Dimensions, H11x W14 x D31 mm
Sealed construction allows automatic washing
ST-PS relay socket available, see stk. no 103-6836
High switching capability, can be used for Inductive lamp load switching
Small form factor, sensitive enough for direct IC-driving
Dimensions, H11x W14 x D31 mm
Sealed construction allows automatic washing
ST-PS relay socket available, see stk. no 103-6836
Approvals
UL, CSA, VDE, SEV
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | DPST |
| Mounting Type | PCB Mount |
| Switching Current | 8 A |
| Terminal Type | Through Hole |
| Coil Resistance | 2.4 kΩ |
| Maximum Switching Voltage AC | 380V ac |
| Maximum Switching Voltage DC | 250V dc |
| Application | Power |
| Length | 31mm |
| Depth | 14mm |
| Height | 11mm |
| Dimensions | 31 x 14 x 11mm |
| Special Features | Sealed |
| Operating Temperature Range | -40 → +60°C |
| Isolation Coil To Contact | 3.75kV rms |
| Maximum Operating Temperature | +60°C |
| Contact Material | Gold Plated |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power AC | 3.04 kVA |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles |
| Maximum Switching Power DC | 150 W |
| Coil Power | 240mW |
