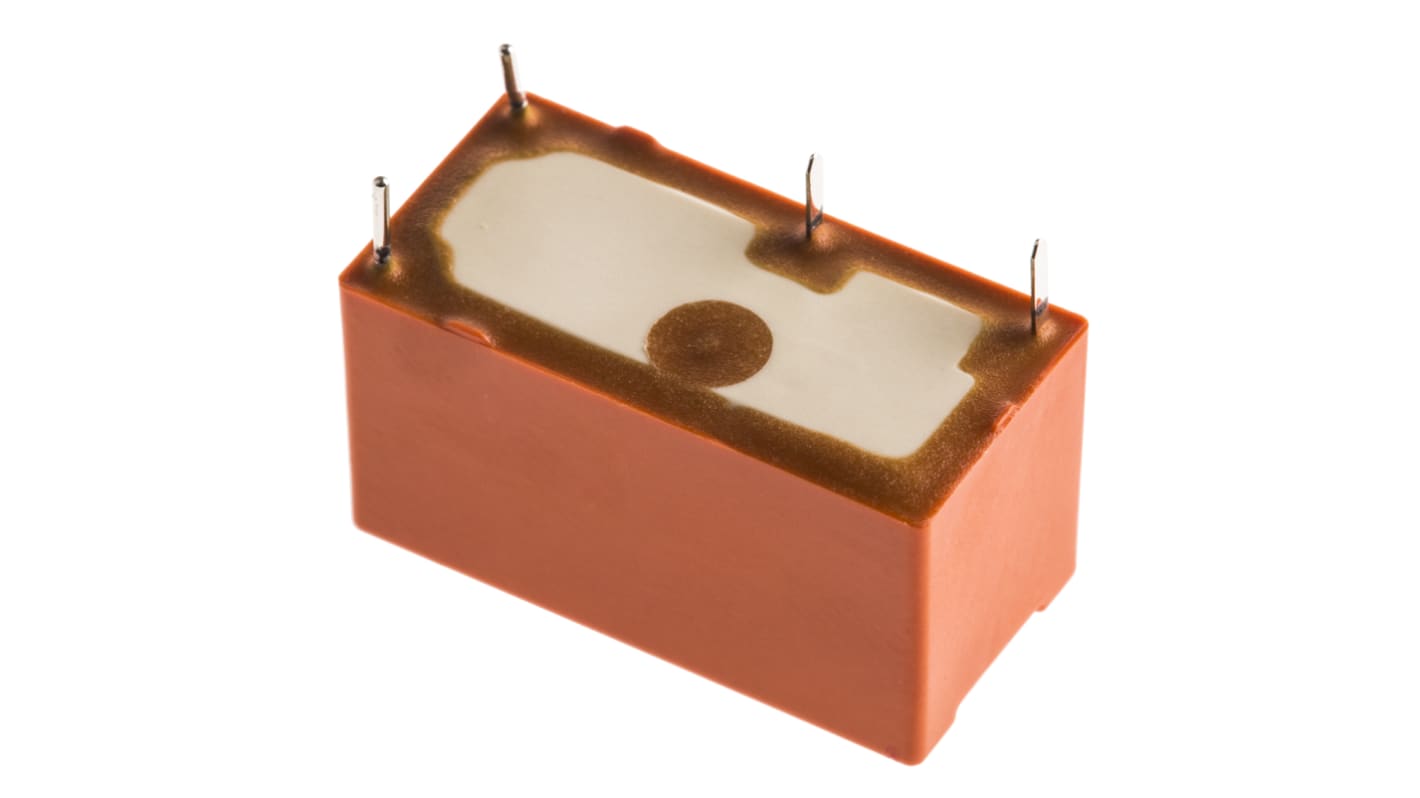

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 6A Switching Current, SPST
- RS Stock No.:
- 515-600
- Mfr. Part No.:
- RE034024
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£3.54
(exc. VAT)
£4.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 434 unit(s) shipping from 27 October 2025
- Plus 115 unit(s) shipping from 27 October 2025
- Plus 151 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.54 |
| 10 - 24 | £3.37 |
| 25 - 49 | £3.19 |
| 50 - 99 | £3.02 |
| 100 + | £2.83 |
*price indicative
- RS Stock No.:
- 515-600
- Mfr. Part No.:
- RE034024
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 6A | |
| Number of Poles | 1 | |
| Series | RE | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V ac | |
| Length | 20mm | |
| Coil Resistance | 2880Ω | |
| Depth | 10mm | |
| Minimum Operating Temperature | -40°C | |
| Height | 10.6mm | |
| Contact Material | Silver Nickel Alloy | |
| Maximum Operating Temperature | +70°C | |
| Maximum Switching Power AC | 1.5 kVA | |
| Application | Compact | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Series RE | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Length 20mm | ||
Coil Resistance 2880Ω | ||
Depth 10mm | ||
Minimum Operating Temperature -40°C | ||
Height 10.6mm | ||
Contact Material Silver Nickel Alloy | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Power AC 1.5 kVA | ||
Application Compact | ||
RE Series
Sensitive coil 200mW
RTIII - wash tight
Creepage & clearance 4mm
Flammability class - UL94V-0
PCB area 200mm2
Dimensions 10.6x20x10mm
Applications include PLC's, timers, temperature control, I/O cards, white goods etc
RTIII - wash tight
Creepage & clearance 4mm
Flammability class - UL94V-0
PCB area 200mm2
Dimensions 10.6x20x10mm
Applications include PLC's, timers, temperature control, I/O cards, white goods etc
Approvals
UL, VDE
