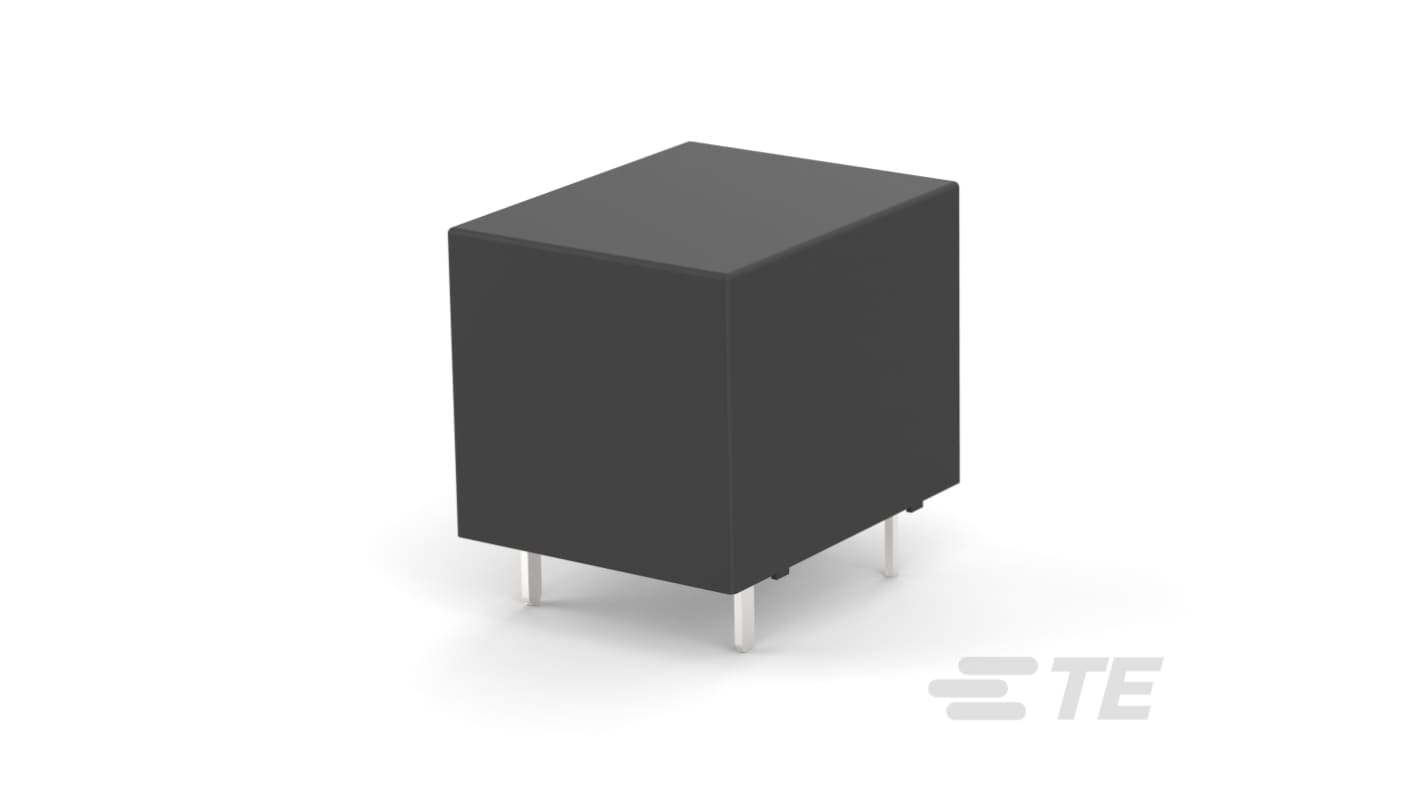

TE Connectivity Board Power Relay, 12V Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 471-201
- Distrelec Article No.:
- 304-48-078
- Mfr. Part No.:
- 1721150-5
- Brand:
- TE Connectivity
Subtotal (1 tube of 150 units)*
£140.40
(exc. VAT)
£168.48
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £140.40 | £0.936 |
*price indicative
- RS Stock No.:
- 471-201
- Distrelec Article No.:
- 304-48-078
- Mfr. Part No.:
- 1721150-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | Board | |
| Series | ORWH | |
| Terminal Type | Solder | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -30°C | |
| Switching DC Voltage | 28V dc | |
| Switching AC Voltage | 277V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 400Ω | |
| Coil Power | 0.36W | |
| Height | 15.8mm | |
| Standards/Approvals | 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | |
| Width | 15.5mm | |
| Length | 19mm | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type Board | ||
Series ORWH | ||
Terminal Type Solder | ||
Switching Current 10A | ||
Minimum Operating Temperature -30°C | ||
Switching DC Voltage 28V dc | ||
Switching AC Voltage 277V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 400Ω | ||
Coil Power 0.36W | ||
Height 15.8mm | ||
Standards/Approvals 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | ||
Width 15.5mm | ||
Length 19mm | ||
Contact Material Silver Tin Oxide | ||
- COO (Country of Origin):
- CN
The TE Connectivity ORWH miniature PCB relay is designed to deliver reliable performance in various applications, especially in general-purpose power distribution. This monostable relay features 1 Form C SPDT-CO switching, ensuring versatility in electronic designs. With a robust coil voltage of 12 VDC and a contact rating of 10 A, it excels in managing electrical loads safely and efficiently. The product’s high dielectric strength enhances its operation under varying conditions, making it an ideal choice for both industrial and commercial uses. With a compact size and appropriate protection against environmental factors, this relay is well-suited for demanding environments, ensuring longevity and reliability.
Compact design for easy integration into PCB layouts
Monostable coil magnetic system optimises energy consumption
Enhanced dielectric strength ensures safety during operation
Flux resistant enclosure protects against soldering standards
Designed for board mount applications, providing flexibility in installation
Wide operating temperature range suits diverse environmental conditions
UL Coil Insulation Class F ensures reliable performance at elevated temperatures
Solder pins provide secure termination and ease of connection
RoHS and ELV compliant, ensuring adherence to environmental regulations
