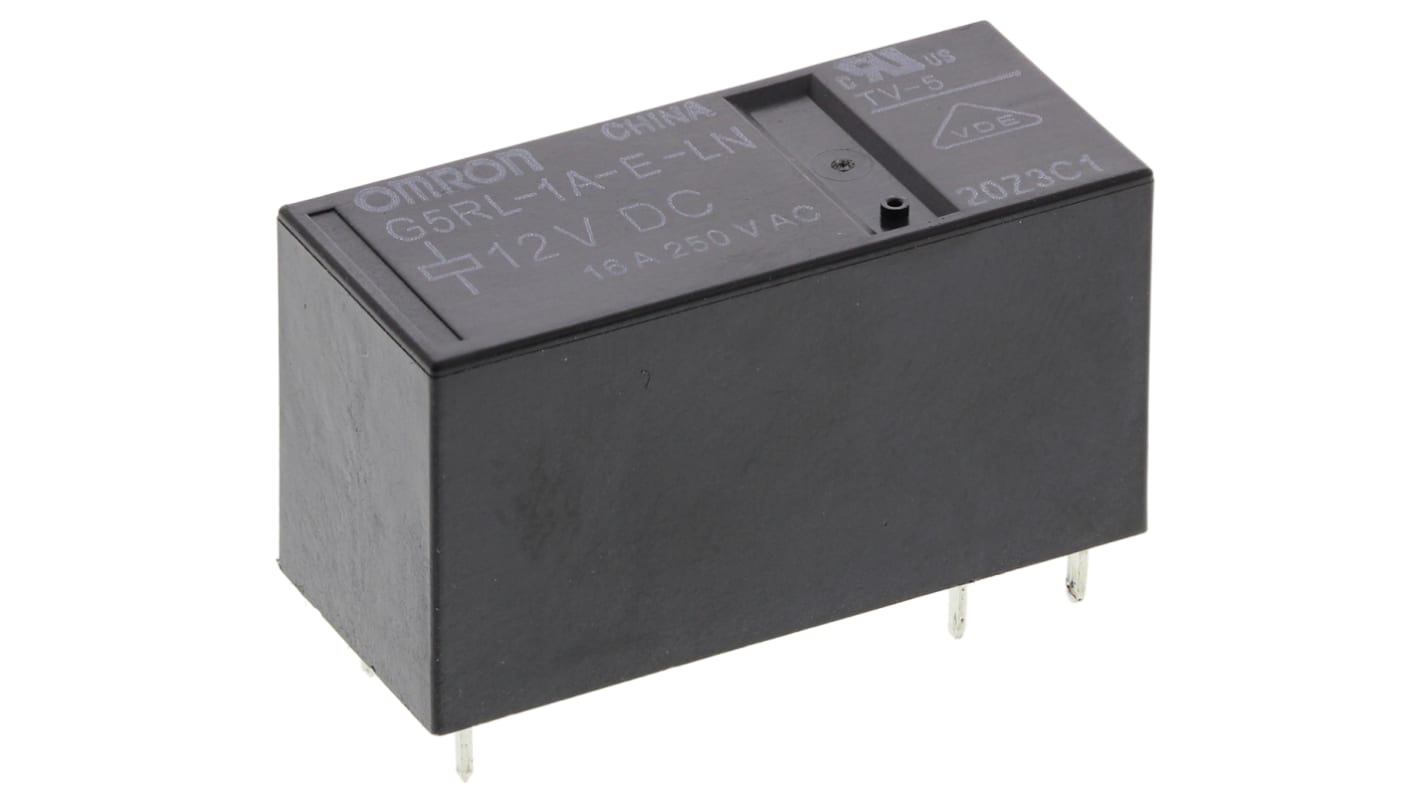

Omron PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 419-271
- Mfr. Part No.:
- G5RL-1A-E-LN DC12BYOMZ
- Brand:
- Omron
Save 29% when you buy 500 units
Subtotal (1 unit)*
£4.91
(exc. VAT)
£5.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 28 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £4.91 |
| 25 - 99 | £4.42 |
| 100 - 249 | £4.33 |
| 250 - 499 | £3.68 |
| 500 + | £3.45 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£9.36
(exc. VAT)
£11.23
(inc. VAT)
- RS Stock No.:
- 419-271
- Mfr. Part No.:
- G5RL-1A-E-LN DC12BYOMZ
- Brand:
- Omron
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | G5RL | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 24V dc | |
| Length | 29mm | |
| Coil Resistance | 272Ω | |
| Coil Power | 530mW | |
| Height | 15.7mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 6kV ac | |
| Depth | 12.7mm | |
| Life | 1000000 (Mechanical) cycles, 50000 (Electrical) cycles | |
| Maximum Switching Power DC | 384 W | |
| Maximum Switching Power AC | 4 kVA | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching No | ||
Series G5RL | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 24V dc | ||
Length 29mm | ||
Coil Resistance 272Ω | ||
Coil Power 530mW | ||
Height 15.7mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 6kV ac | ||
Depth 12.7mm | ||
Life 1000000 (Mechanical) cycles, 50000 (Electrical) cycles | ||
Maximum Switching Power DC 384 W | ||
Maximum Switching Power AC 4 kVA | ||
