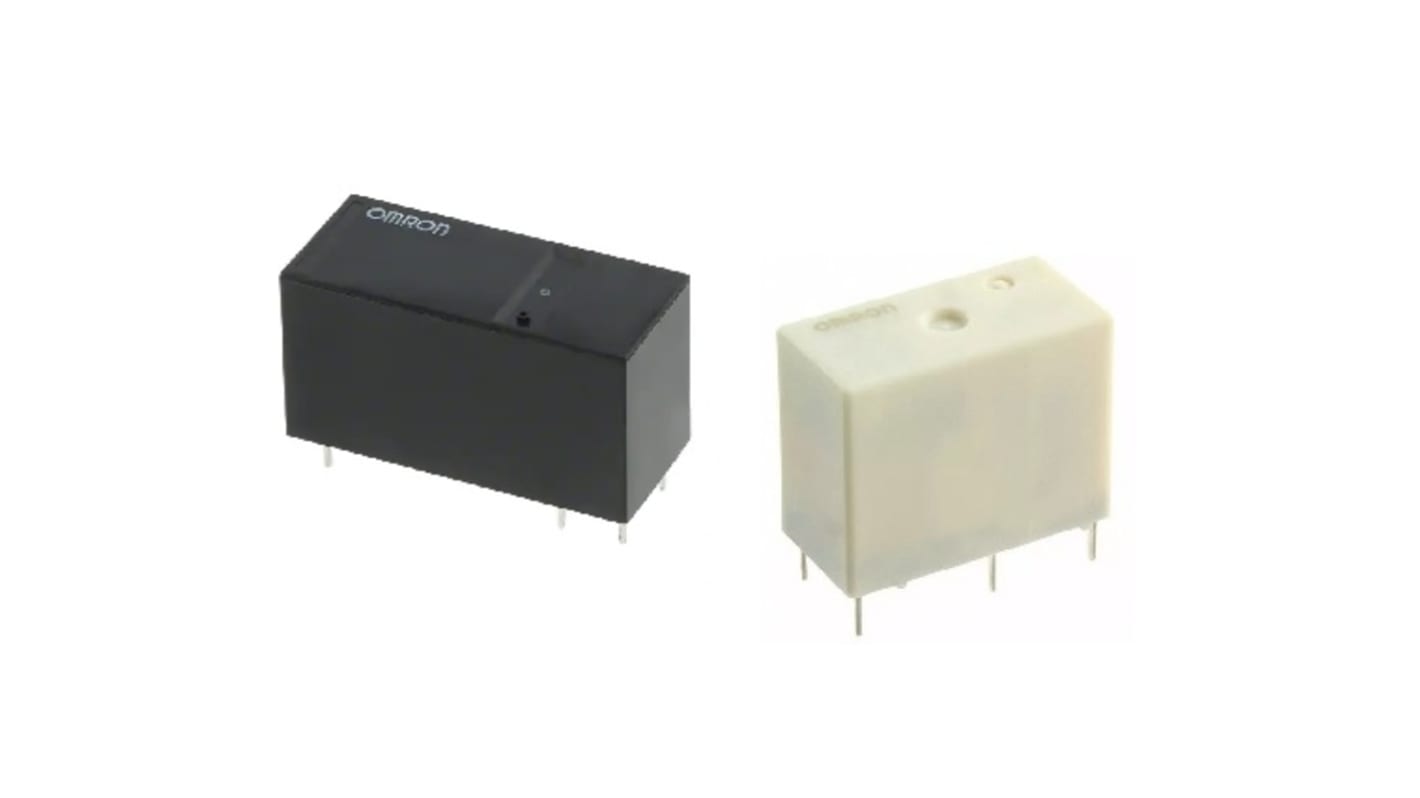

Aratas PCB Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 243-6589
- Mfr. Part No.:
- G5RL-U1A-E DC12
- Brand:
- Aratas
Subtotal (1 tube of 100 units)*
£706.90
(exc. VAT)
£848.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 June 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 100 + | £7.069 | £706.90 |
*price indicative
- RS Stock No.:
- 243-6589
- Mfr. Part No.:
- G5RL-U1A-E DC12
- Brand:
- Aratas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Coil Voltage | 12V dc | |
| Product Type | Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5RL-U/-K | |
| Terminal Type | PCB Pin | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 24V dc | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 240Ω | |
| Length | 50mm | |
| Height | 15mm | |
| Coil Power | 140mW | |
| Standards/Approvals | CQC Certified, CSA (File No. LR31928), VDE Certified, UL (File No. E41643) | |
| Width | 10mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Coil Voltage 12V dc | ||
Product Type Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5RL-U/-K | ||
Terminal Type PCB Pin | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 24V dc | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 240Ω | ||
Length 50mm | ||
Height 15mm | ||
Coil Power 140mW | ||
Standards/Approvals CQC Certified, CSA (File No. LR31928), VDE Certified, UL (File No. E41643) | ||
Width 10mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
The Omron G5RL series is a low profile power relays have single pole comes in various models. The coil voltage is 12 Vdc, coil resistance is 50 ohms, and coil current is 50 mA. It has Silver alloy (Ag) coated contacts.
Feature creepage distance of 8mm between coil and contacts
An ambient operating temperature of 85ºC
