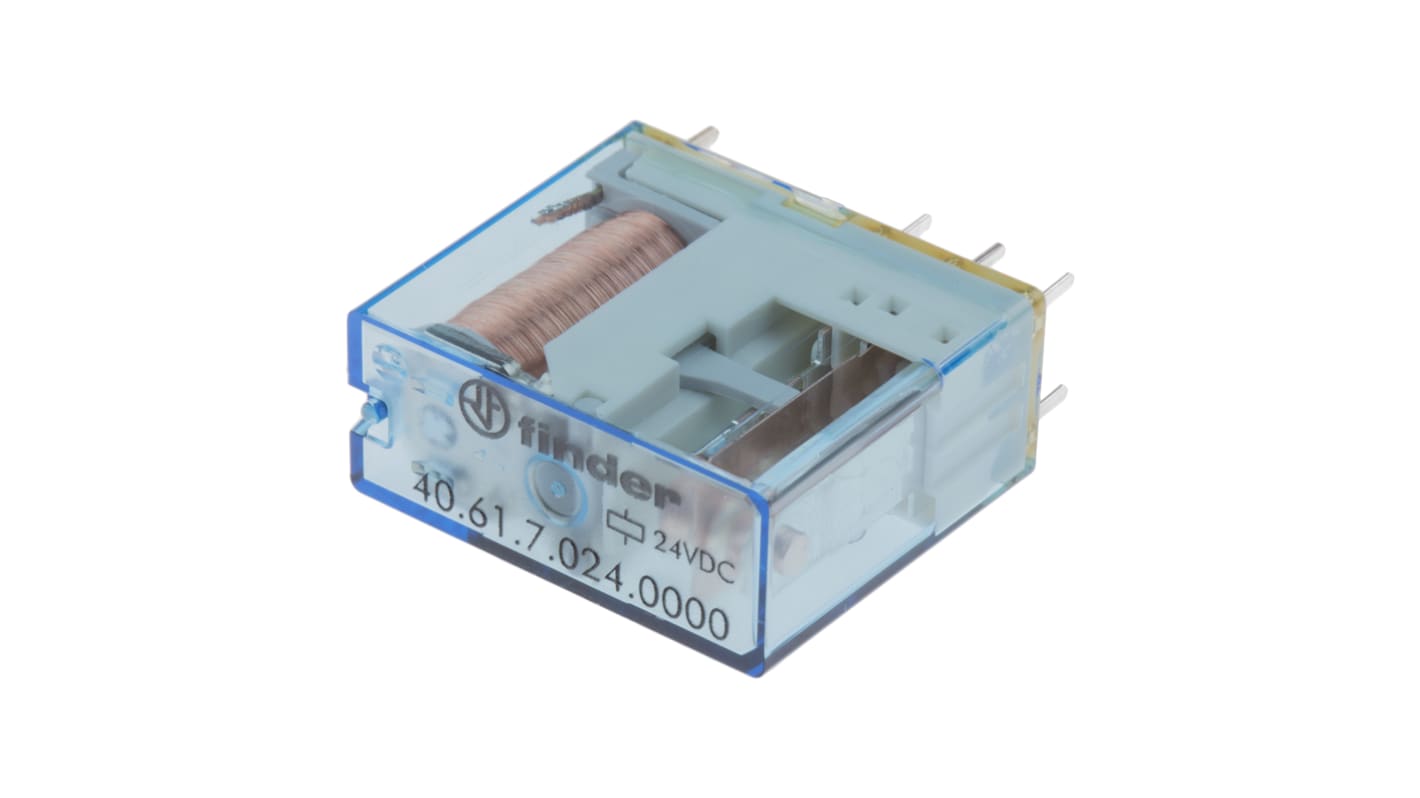

Finder PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPDT

Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

RS Stock No.:
351-645
Mfr. Part No.:
40.61.7.024.0000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

16A

Number of Poles

1

Latching

No

Series

40系列

Terminal Type

Through Hole

Maximum Switching Voltage AC

400V ac

Length

29mm

Coil Resistance

1200Ω

Coil Power

500mW

Depth

12.4mm

Contact Material

Silver Alloy

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Isolation Coil To Contact

6kV

Height

25mm

Maximum Switching Power AC

4 kVA

Application

PCB

COO (Country of Origin):
IT

Finder 40系列 Series Power Relay, 24V DC Coil Voltage, SPDT Contact Configuration - 40.61.7.024.0000


This power relay is intended for efficient switching applications across various sectors, including automation and electronics. Operating at a coil voltage of 24V DC, it delivers effective control in different environments. The relay's robust construction ensures durability and performance, catering to the requirements of professionals in the electrical and mechanical fields. Its SPDT configuration supports versatile connectivity, making it a vital component for contemporary control systems.

Features & Benefits


• Supports a high switching current of 16A for varied applications
• Capable of withstanding maximum switching voltages of up to 400V AC
• Constructed with silver alloy contacts for enhanced conductivity
• Designed with a through hole structure for straightforward PCB mounting
• Withstands high temperatures, operational up to +85°C
• Offers 6kV isolation between the coil and contact for safety

Applications


• Automation processes in blinds and shutters
• Control panels for electrical distribution
• Medical and dental equipment for dependable operations
• Electronic circuit boards for diverse functions
• Vending machines for efficient control solutions

What is the maximum operational temperature for this relay?


This relay can function within a temperature range of -40°C to +85°C, ensuring performance in extreme conditions.

Can this relay be used for high voltage applications?


Yes, it can handle voltages of up to 400V AC, making it suitable for such tasks.

What type of contact material is used in this relay?


It features silver alloy contacts, which improves performance and lifespan under load.

How does the switching current capacity affect my application?


The 16A switching current rating enables effective operation in applications requiring higher power management.

Is this relay compatible with standard PCB layouts?


Its through hole design allows for compatibility with most standard PCB layouts, facilitating easy integration.
