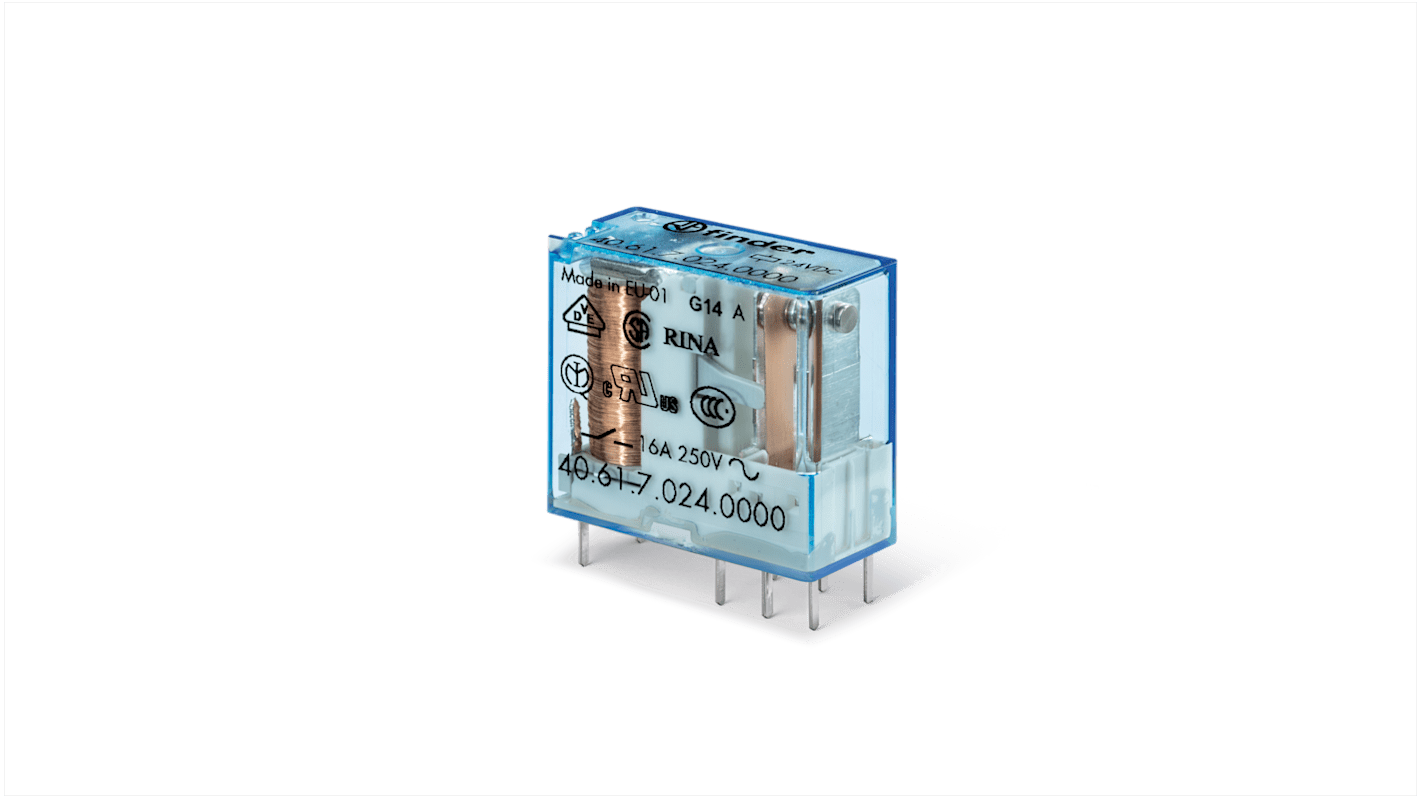

Finder PCB Power Relay Module, 24V ac Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 248-1965
- Mfr. Part No.:
- 406180244000
- Brand:
- Finder
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 248-1965
- Mfr. Part No.:
- 406180244000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Power Relay Module | |
| Coil Voltage | 24V ac | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | 40 | |
| Terminal Type | PCB Pin | |
| Switching Current | 16A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 25mm | |
| Length | 29mm | |
| Standards/Approvals | VDE, CCC, CSA, EAC, RINA | |
| Coil Power | 0.9W | |
| Width | 12.4mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Power Relay Module | ||
Coil Voltage 24V ac | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series 40 | ||
Terminal Type PCB Pin | ||
Switching Current 16A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 25mm | ||
Length 29mm | ||
Standards/Approvals VDE, CCC, CSA, EAC, RINA | ||
Coil Power 0.9W | ||
Width 12.4mm | ||
Contact Material Silver Alloy Gold Plated | ||
The Finder's miniature power relays from 40 series have 1 (CO) pole with 5mm pinning, with PCB or socket mount options. The coil voltage is 24 Vac (50/60 Hz), and this device is rated for 250 Vac. It used for medical and dentistry, toys, automation for blinds, grilles and shutters like applications.
Standard Version
Ambient temperature range is from –40°C to +85°C
