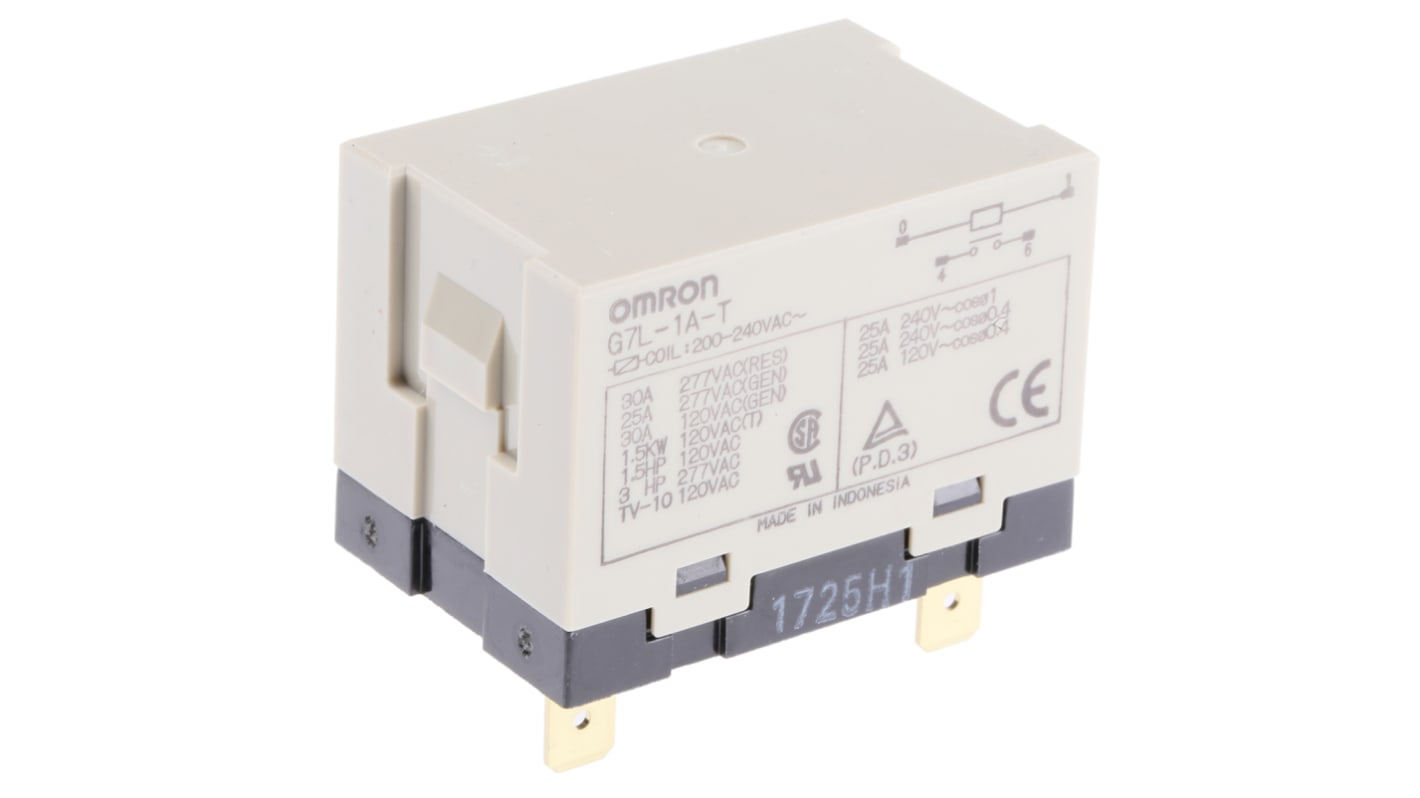

Omron Panel Power Relay, 240V ac Coil, 30A Switching Current, SPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£12.89

(exc. VAT)

£15.47

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 34 unit(s) shipping from 27 April 2026
  • Plus 80 unit(s) shipping from 25 September 2026
  • Plus 160 unit(s) shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£12.89
5 - 9£12.48
10 +£11.94

*price indicative

RS Stock No.:
329-941
Mfr. Part No.:
G7L-1A-T AC200/240
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Product Type

Power Relay

Coil Voltage

240V ac

Contact Configuration

SPST

Mount Type

Panel

Series

G7L

Terminal Type

Quick Connect

Switching Current

30A

Switching Power

6.6kVA

Minimum Operating Temperature

-25°C

Switching AC Voltage

250V ac

Maximum Operating Temperature

60°C

Width

33.5mm

Standards/Approvals

RoHS

Length

52.5mm

Height

53mm

Contact Resistance

50mΩ

PCB Mounting & Plug-in - Power Relays - G7L Series


Relay compatible with momentary voltage drops up to 50% of rated voltage

High capacity and high dielectric strength

Flame-resistance UL94V-0 insulation material

Choice of connection types available - quick-connect or PCB terminals

Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)

Approvals

UL; CSA; TÜV
