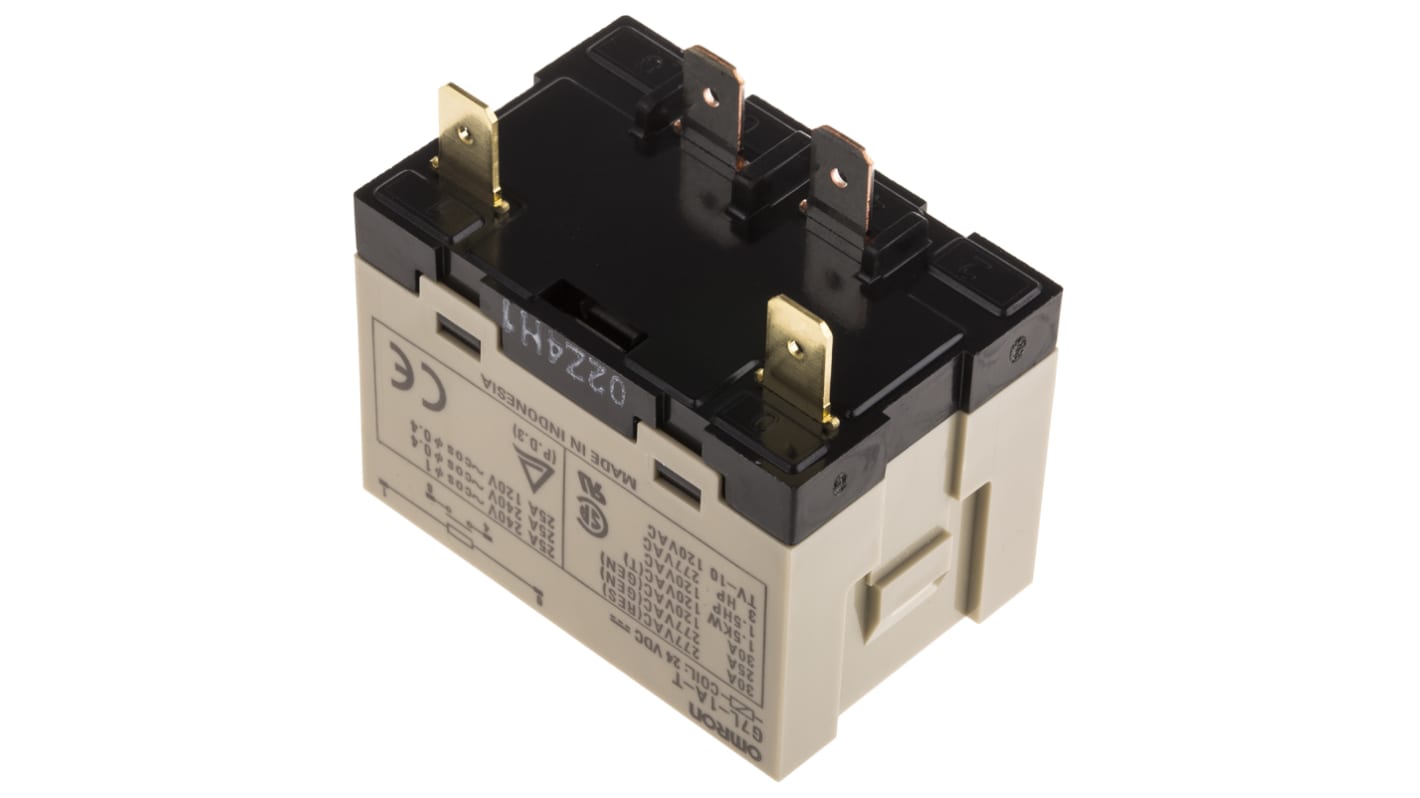

Omron Panel Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST
- RS Stock No.:
- 329-913
- Mfr. Part No.:
- G7L-1A-T DC24
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£10.33
(exc. VAT)
£12.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 251 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.33 |
5 - 9 | £10.01 |
10 + | £9.57 |
*price indicative
- RS Stock No.:
- 329-913
- Mfr. Part No.:
- G7L-1A-T DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 24V dc | |
Contact Configuration | SPST | |
Mounting Type | Panel Mount | |
Switching Current | 30A | |
Number of Poles | 1 | |
Series | G7L | |
Latching | No | |
Terminal Type | Quick Connect | |
Length | 52.5mm | |
Coil Resistance | 303Ω | |
Height | 53mm | |
Depth | 33.5mm | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -25°C | |
Maximum Switching Power AC | 6.6 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type Panel Mount | ||
Switching Current 30A | ||
Number of Poles 1 | ||
Series G7L | ||
Latching No | ||
Terminal Type Quick Connect | ||
Length 52.5mm | ||
Coil Resistance 303Ω | ||
Height 53mm | ||
Depth 33.5mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
Maximum Switching Power AC 6.6 kVA | ||
Application Power | ||


Omron Non-Latching Relay
The Omron G7L series E-bracket mount non-latching relay has a contact configuration of SPNO. It is actuated with 24VDC coil voltage and 30A switching current. This relay is high-capacity, high-dielectric strength relay is compatible with momentary voltage drop up to 50% of the rated voltage.
Features and Benefits
Flame-resistance materials used for all insulation material
Coil resistance is 303ohm
Quick connect terminal type
Coil resistance is 303ohm
Quick connect terminal type
Applications
Power controllers for water heaters, dryer
Switching controllers for power tools or motors
Lighting controllers
Magnetron control in microwaves
Lamp controls, motor drivers and power supply switching in copy machines, facsimile machines and other office equipment
Switching controllers for power tools or motors
Lighting controllers
Magnetron control in microwaves
Lamp controls, motor drivers and power supply switching in copy machines, facsimile machines and other office equipment
Certifications
UL approved
CSA certified
CSA certified
