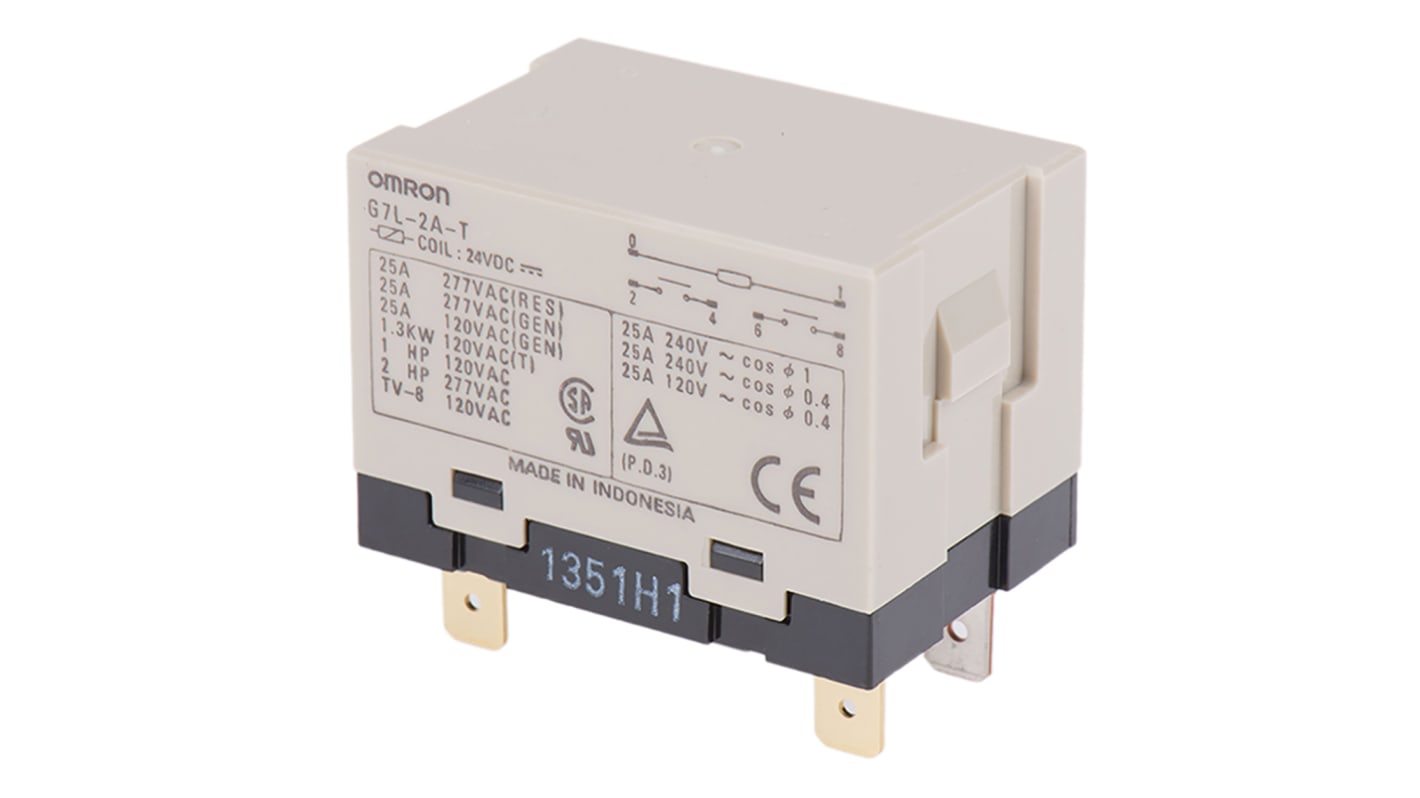

Omron Panel Mount Power Relay, 24V dc Coil, 25A Switching Current, DPST
- RS Stock No.:
- 329-963
- Mfr. Part No.:
- G7L-2A-T DC24
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£10.38
(exc. VAT)
£12.46
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 191 left, ready to ship
- Plus 21 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.38 |
5 - 9 | £10.08 |
10 + | £9.62 |
*price indicative
- RS Stock No.:
- 329-963
- Mfr. Part No.:
- G7L-2A-T DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 24V dc | |
Contact Configuration | DPST | |
Mounting Type | Panel Mount | |
Switching Current | 25A | |
Number of Poles | 2 | |
Latching | No | |
Series | G7L | |
Terminal Type | Quick Connect | |
Length | 52.5mm | |
Coil Resistance | 303Ω | |
Height | 53mm | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +60°C | |
Depth | 33.5mm | |
Maximum Switching Power AC | 5.5 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration DPST | ||
Mounting Type Panel Mount | ||
Switching Current 25A | ||
Number of Poles 2 | ||
Latching No | ||
Series G7L | ||
Terminal Type Quick Connect | ||
Length 52.5mm | ||
Coil Resistance 303Ω | ||
Height 53mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Depth 33.5mm | ||
Maximum Switching Power AC 5.5 kVA | ||
Application Power | ||


Omron Non-Latching Relay
The Omron G7L series E-bracket mount non-latching relay has a contact configuration of DPNO. It is actuated with 24VDC coil voltage and 25A switching current. This relay is high-capacity, high-dielectric strength relay is compatible with momentary voltage drop up to 50% of the rated voltage.
Features and Benefits
Flame-resistance materials used for all insulation material
Coil resistance is 303ohm
Quick connect terminal type
Coil resistance is 303ohm
Quick connect terminal type
Applications
Power controllers for water heaters, dryer
Switching controllers for power tools or motors
Lighting controllers
Magnetron control in microwaves
Lamp controls, motor drivers and power supply switching in copy machines, facsimile machines and other office equipment
Switching controllers for power tools or motors
Lighting controllers
Magnetron control in microwaves
Lamp controls, motor drivers and power supply switching in copy machines, facsimile machines and other office equipment
Certifications
UL approved
CSA certified
CSA certified
